Name: Uni-T UTG9504T+ Mains-powered 1 µHz - 500 MHz 4-channel Rectangle, Waveform, Triangle, Arbitrary, Noise, Ramp
Brand: Uni-T
SKU: 3837313

Front view of a UNIT-T digital function/arbitrary waveform generator showing a red sine wave on CH1 with frequency, amplitude, offset, and phase settings on the touchscreen.

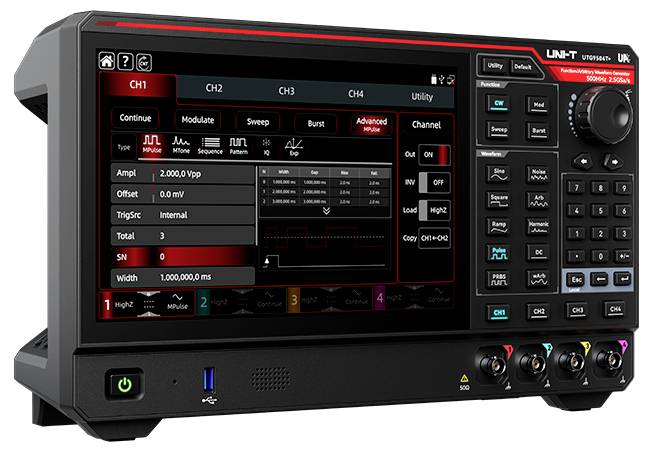

Digital oscilloscope with a touchscreen showing CH1 pulse settings and waveform controls, plus physical knobs and input ports on the right.

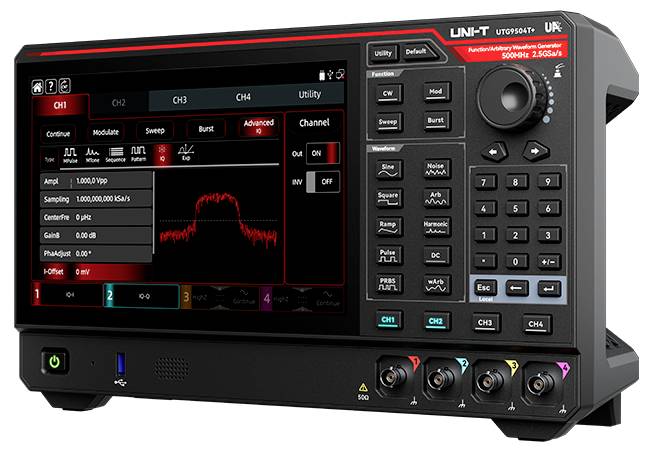

Digital oscilloscope showing a waveform on screen, with control buttons and four channel inputs on the front panel.

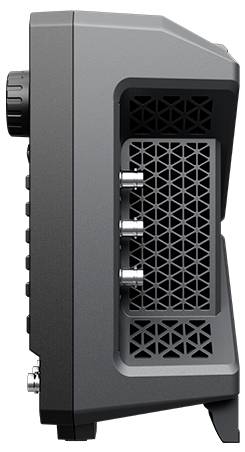

Side view of a gray and black electronic device with a vented grille and several metal connectors or ports on the side.<br>

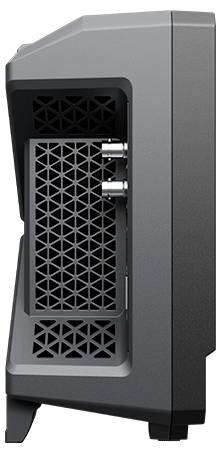

Side view of a black PC tower case with a perforated front panel and two visible USB ports.

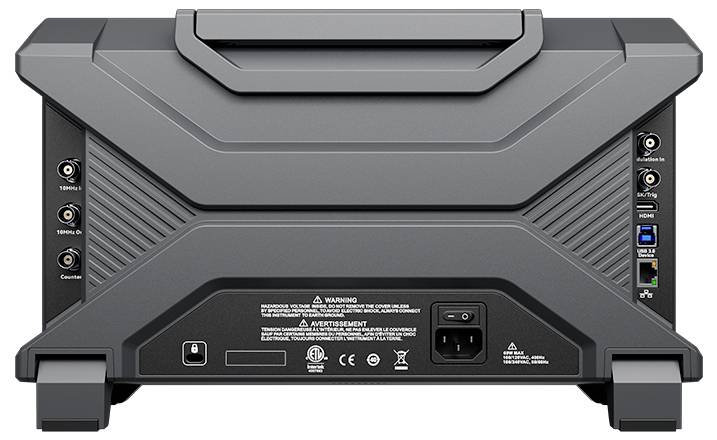

Rear view of a large monitor showing power input, HDMI and USB ports, and built-in speaker connections on a dark gray casing.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

UNI-T function generator UTG9504T+, 500MHz, 4-channel, arbitrary

Maximum output frequency: 500 MHz
Sampling rate 2.5 GSa/s
16-bit vertical resolution
Channels: 4
Arbitrary waveform length: 128 Mpts
Display: 10.1-inch TFT LCD touch screen

Technical specifications

10.1-inch capacitive touchscreen
4 independent Channels full power
Noise Overlay (SNR)
Digital protocol output (SPI, I2C, UART)
Advanced functions (multi-pulse, multi-tone, sequence, pattern, I/Q, expression)

Signal output type: Sine, square, ramps/triangle, pulse, harmonic, Noise, PRBS, DC, Arbitrary

Product type: Mains-powered

Frequency range: 1 µHz - 500 MHz

Signal output types: Rectangle
Waveform
Triangle
Arbitrary
Noise
Ramp

Frequency range (sine): 1 µHz – 500 MHz

Distortion factor (sine): 0,07 %

Frequency range square wave: 1 µHz – 170 MHz

Square wave slew rate: 2 ns

Display: LCD

Frequency range triangle: 1 µHz – 20 MHz

ARB frequency range: 1 µHz – 50 MHz (DDS-Modus); Abtastrate 1 µSa/s bis 1,25 GSa/s (Punkt-für-Punkt, max. 2,5 GSa/s Interpolation), 16-Bit-Vertikalauflösung Hz

: Manufacturer's standards (no certificate)

Wobble function: Yes (Sweep: Linear, logarithmic, list, step)

Internal modulation: AM, FM, PM, DSB-AM, QAM, ASK, FSK, 3FSK, 4FSK, PSK BPSK, QPSK, OSK, PWM, SUM

External modulation: AM, FM, PM, DSB-AM, ASK FSK, PSK, OSK, PWM, SUM

VCF: Yes

Trigger (synchronous): Internal, External, Manual

Gate (asynchronous): Yes (gated mode supported)

Frequency reading (external): Yes (built-in frequency counter 100 MHz – 800 MHz, 8 digits/s)

Dim: (W x H) 361 mm x 209 mm

Weight: 4.5 kg

No. of channels: 4-channel

Max. frequency: 500 MHz

Min. frequency: 1 µHz

Features: incl. cycle counter

Calibration service: Factory calibration

Reading category: CAT II

Width: 361 mm

Height: 209 mm

Interfaces: USB host
USB device
LAN

Voltage supply: 230 V/AC

Type: UTG9504T+

Documents & Downloads

Datasheet

Datasheet 3837313 Uni-T UTG9504T+ Mains-powered 1 µHz - 500 MHz 4-channel Rectangle, Waveform, Triangle, Arbitrary, Noise, Ramp

User & Safety Instructions

User & Safety Instructions 3837313 Uni-T UTG9504T+ Mains-powered 1 µHz - 500 MHz 4-channel Rectangle, Waveform, Triangle, Arbitrary, Noise, Ramp

Description

The UTG9504T+ is the best model in the UTG9000T+ series, delivering 500 MHz output frequency on four equivalent channels at 2.5 GSa/s sampling rate and 16-bit vertical resolution. It generates precise, stable and distortion-free signals with short rise time of the square wave signals. It supports comprehensive analogue and digital modulation types, PRBS, sweep and burst operation as well as the extended signal forms Multi-Pulse, Sequence, Multi-Tone, IQ, Pattern and Exp. With 128 Mpts arbitrary memory, integrated signal form editor, frequency counter and 10.1" touch screen, it is designed for demanding development and high frequency test tasks.

This text is machine translated.

Features

Low-distortion signal output: Interference-free dynamic range of -80 dBc and low jitter for clean, stable signals
Quick edge time: Flank time up to 2 ns, minimum pulse width ≥3 ns, fine adjustment in 100-PS steps, Face time per pulse adjustable
Four independent channels: Simultaneous output on all channels for parallel and multi-device testing
Channel coupling & signal addition: Frequency, amplitude and phase can be freely coupled, outputs can be combined (e.g. CH1 = CH1 + CH2 + CH3 + CH4)
4-channel synchronization: Change to one channel automatically transfers to the other three
One-Click SNR: Overlaying Gauss Noise for direct evaluation of immunity
15 MODULATION TYPES: AM, DSB-AM, FM, PM, ASK, FSK, 3FSK, 4FSK, PSK, BPSK, QPSK, OSK, QAM, PWM, TOTAL
Digital protocol output: SPI, I²C and UART
Hardware frequency counter with a measurement range from 100 MHz to 800 MHz
Arbitrary signal editor: Over 200 integrated signal shapes, processing on the device or at the PC by character and mathematical functions
Standard extended signal shapes: Multi-pulse, multi-tone, sequence, pattern, IQ and Exp

Scope of delivery

UTG9504T + x1
Power cable x1
USB data cables x1
BNC cable x4

Hints

More models

-UTG9354T+: 4 channels, 350MHz output frequency, 2.5 GSa/s sampling rate, 16-bit vertical resolution, 128 Mpts arbitrary waveform length, 10.1-inch TFT LCD touch screen
