Urmet 1068/906 KT 1068/906 Alarm sets
EAN:
Part number:
Item no:
Highlights & Details
Professional alarm systems set
- EN50131 certified
Technical specifications
- Dim. Siren (W x H x D) 203 x 253 x 87 mmFrequency range of motion detector 10.525 MHzMotion detection angle: 90°Range of motion sensor 15 mFlash frequency 1 HzSuitable accessories: 1067-008A extension 8 inputsCapturing range: 15 m.Wired inputs: 10 / expandable up to 66Wireless inputs: Optional 56Alarm zones: 10 inputs / 8 zones can be extendedApp-enabled: YesWireless outputs: 0Wired outputs: 4 can be extended to 21Display: YesExternal alarm: GSM, InternetWeight 1 kg.GSM interface: Yes (optional)ISDN interface: No.Menu languages: German, English, Italian, FrenchPC interface: Yes (software)Acoustic pressure 103 dB(A)Voice output for operation: Yes (software)Base current consumption: Max. 1500 mAPower supply: Mains operated, battery operatedPhone alarm: Yes (optional)
- Product type
Alarm sets
- Operating voltage
230 V
- Wireless activation
Yes (optional)
- Tamperproof
Yes
- Switched outputs
4 expandable to 21
- Alarm sounder
Yes
- Signal transmission
Corded
- Emergency piower supply
Yes (optional)
- Width
290 mm
- Height
275 mm
- Dim
(W x H) 290 mm x 275 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2749539 Urmet 1068/906 KT 1068/906 Alarm sets
User & Safety Instructions 2749539 Urmet 1068/906 KT 1068/906 Alarm sets
User & Safety Instructions 2749539 Urmet 1068/906 KT 1068/906 Alarm sets
User & Safety Instructions 2749539 Urmet 1068/906 KT 1068/906 Alarm sets
User & Safety Instructions 2749539 Urmet 1068/906 KT 1068/906 Alarm sets
User & Safety Instructions 2749539 Urmet 1068/906 KT 1068/906 Alarm sets
User & Safety Instructions 2749539 Urmet 1068/906 KT 1068/906 Alarm sets
Description
KT 1068/906 - alarm system set professional: Comprising: AZ 1068/010; KP 1068/021, IF 1068/013; GM 1068/458, 2x IR 1033/132; 2x IB 1033/119, as 1033/414, inc. Protective device.Wired alarm system, can be extended with extensions to radio.
This text is machine translated.
This text is machine translated.
Features
- Siren – anti-sabotage protection: Opening protection and removal protection

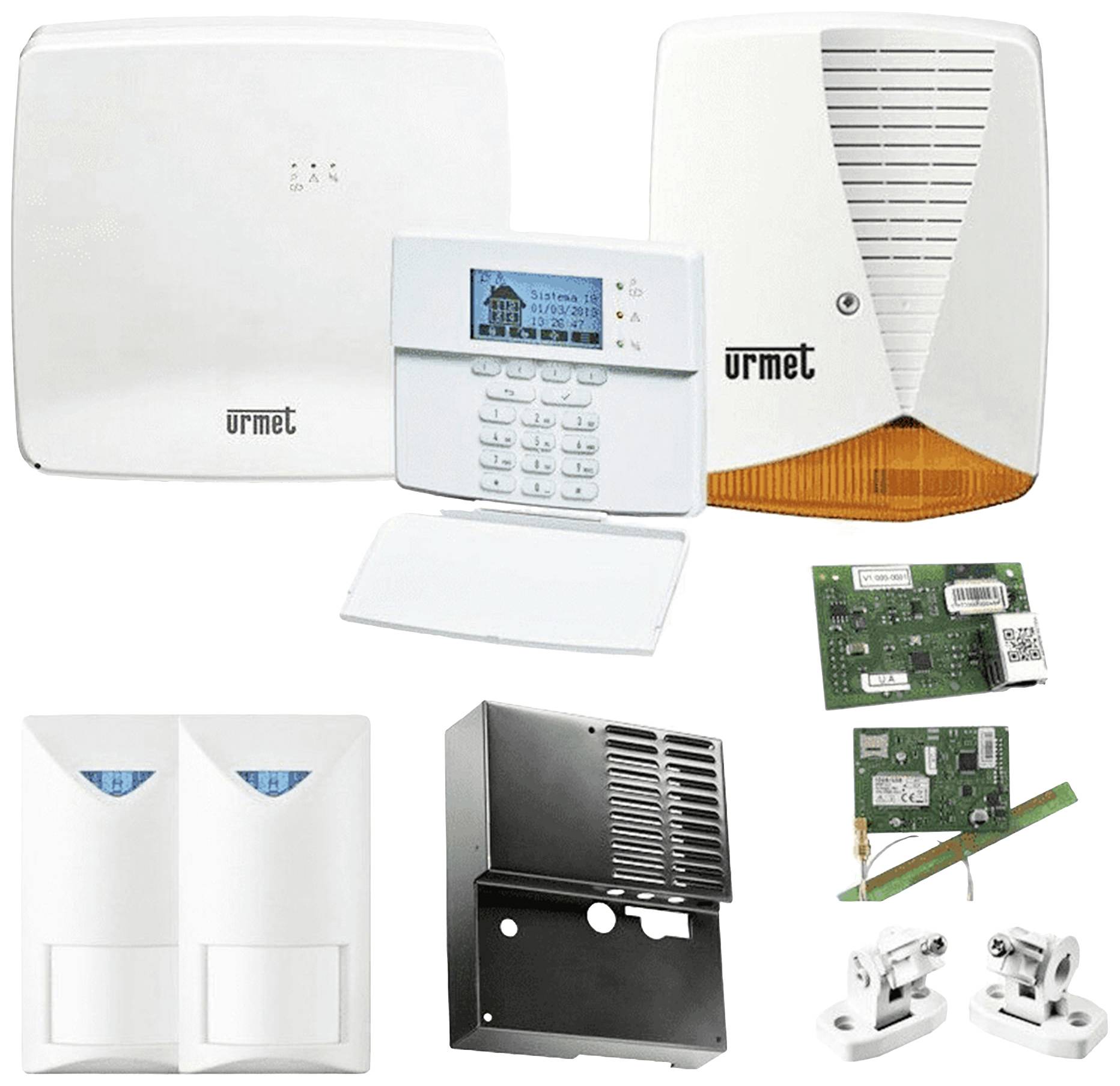

Scope of delivery
- Alarm unit 1068/010
- Keypad 1068/021
- IP Module 1068/013
- GSM module 1068/458
- 2 x Movement Sensor 1033/132
- 2 x Joint holder 1033/119
- Outdoor siren 1033/414.
Hints
Please order battery 12 V / 7 Ah separately
