Vaillant 0010041905 Shower tap
EAN:
Part number:
Item no:
Technical specifications
- Number of grips: Single-action
- With handles: Yes
- Thermostatic: No.
- Pressure equalization: No.
- Locking mechanism: Ceramic cartridge
- Material Rooster: Other
- Surface protection: Chrome-plated
- Surface treatment: Other
- Mounting type: Wall
- Central distance 100 mm
- Base color: Chrome
- Accent color: Chrome
- Outflow connection: Outer thread
- Feeder terminal dimension: 1/2 inch
- With adjustment unit: Yes
- With outlet: Yes
- Mouth piece tap: Open
- Drain position: Down
- Nominal diameter of outlet: Other
- With fixed head shower: No.
- With shower set: Yes
- With couplings: No.
- With temperature limit: No.
- Temperature limit can be retrofitted: No.
- Temperature lock (38 °C): No.
- Max. PTO capacity (at 300 kPa): 15 l/min.
- Volume flow class: Without
- Hot water saving function can be retrofitted: No.
- With hot water-saving function: No.
- Water-saving position: No.
- Cool housing: No.
- Noise class according to DIN-52 218: Without
- Factory colour
Chrome
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3147869 Vaillant 0010041905 Shower tap
Description

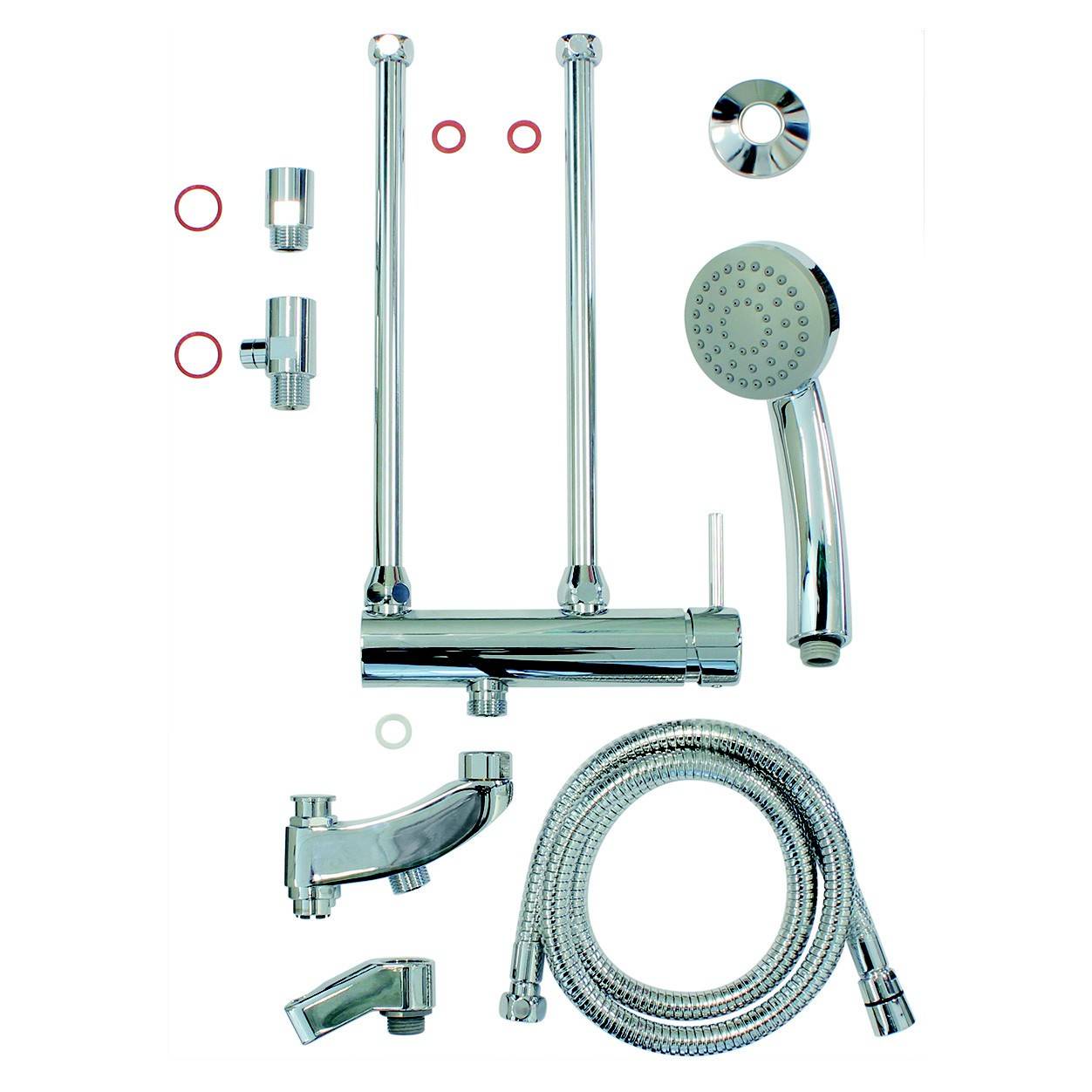

VHO 2/2 for shower and bath pressure tap, overtable connection, two-handle, 2 connection tubes 12 x 320 mm (top R 1/2, bottom R 3/8), conversion bathtub/shower, stylish hand shower with metal hose, hook for shower attachment
