Technical specifications

Boiler control: No.
Number of boilers: 1
Connection boiler: 2-wire
Group regulation: No.
Air treatment control: No.
Air heater: No.
Air cooler: No.
Air humidifier: No.
Air warmer: No.
Drinking water regulation: Yes
Boiler shuttle valve control: No.
Split unit control: No.
Air purifier control: No
Swimming pool control: No.
Heat pump control: No.
Exhaust fan regulation: No.
Control extraction fan: Without
Supply voltage 230 V
With display: Yes
With PC connection: No.
Communication bus: Other
Communication protocol: Without
With feed sensor: No.
With outdoor sensor: No.
With room sensor: No.
With timer switch: Yes
Program clock: Day/week
Suitable for wall mounting: Yes
DIN rail mounting: No.
Working independently: Yes
Connectable: No.
Protection class (IP) IP20
Height: 46 mm
Width 115 mm
Depth: 173 mm
Power consumption in standby mode (solststandby): 1.74 W.

Product type: Remote sensor temperature controller

: IP20

Dim: (W x H x D) 115.00 x 46.00 x 173.00 mm

Height: 46.00 mm

Depth: 173.00 mm

Width: 115.00 mm

System voltage: 230 V

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3148350 Vaillant 0020203653

Description

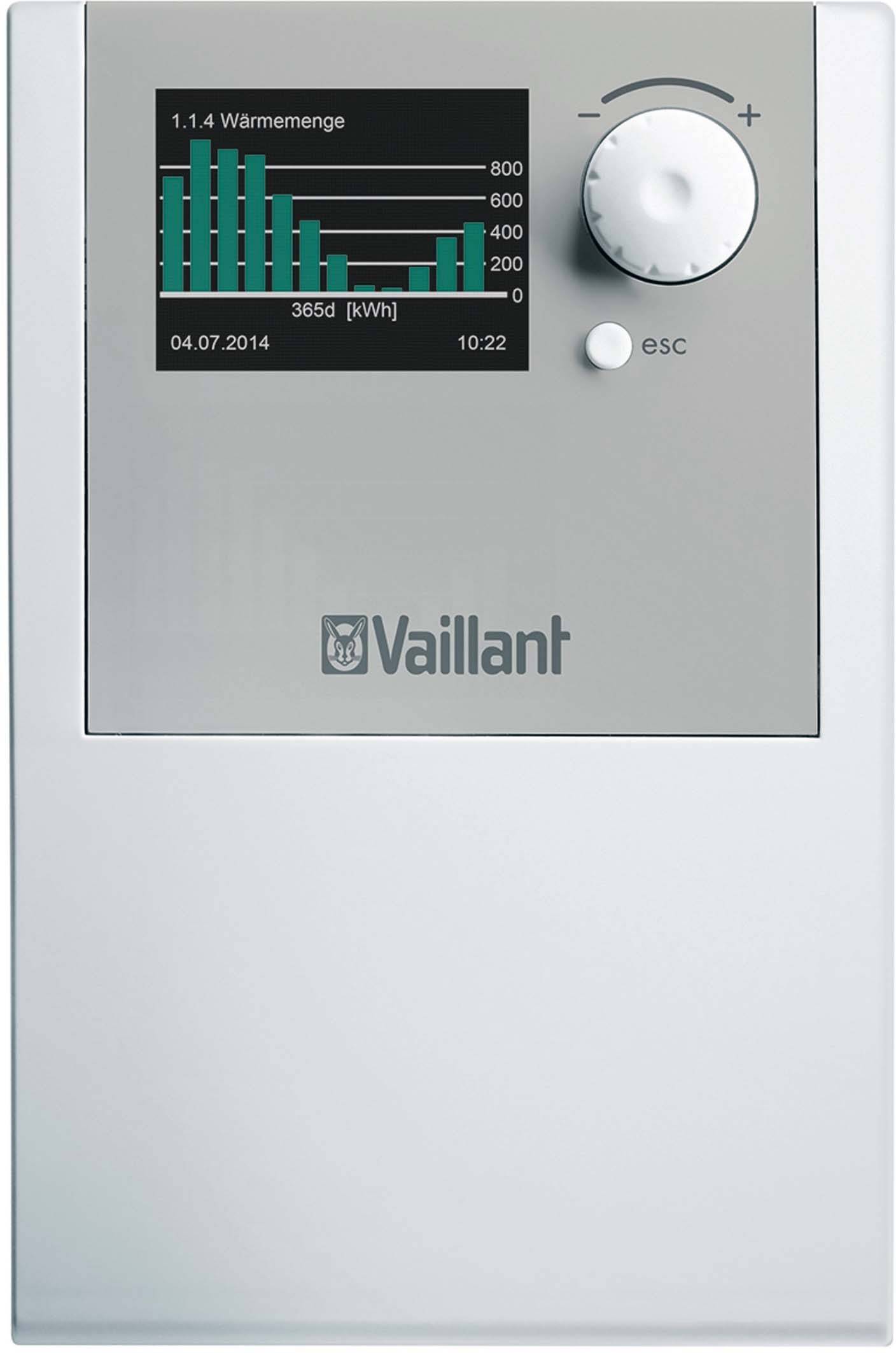

Solar controller auroMATIC 570 Product advantages: Solar regulator, C1/C2 On/Off function (activation of memory charge operation and external peak load device), Graphic solar yield display in the solar system, intuitive operation without any prior knowledge Delta, full-graphic TFT color display with backlight and clear-text display, illuminated, activation of HE PWM solar and heating pumps, evaluation of PWM back signal for volume current measurement (solar yield) without volume flow sensor, differential temperature control (fixed T-time control): Time program for memory charge circuit and circulation circuit, holiday program, thermal disinfection (daily and weekly time control), efficient recharge function taking into account the expected solar yield, lionella protection function for bivalent solar storage (ensuring a storage temperature of 1 x daily of 60 gr.C), modes of storage charging (on, off, auto), measurement value display for inputs and outputs, Possibility of free programming of the in-/outputs, operating hours counter
