Technical specifications

Material jacket: Plastic
Material fittings: Other
Material: Copper pipe
Primary connection: Other
Primary tube diameter: 28 mm
Secondary Connection: Other
Nominal diameter secondary: Other
Outer tube diameter secondary: 28 mm
Pump connection: Other
Pump connection size: Other
Max. Operating pressure 3 bar
Medium temperature 0..25°C
Setting range temperature 7..24°C
Type of temperature control: Electrical
Output 15..19 kW
Suitable for cooling: Yes
Suitable for heating: No.
Suitable for glycol: Yes
Suitable for ethanol: No.
Design: Other
With adapter for heat meter: No.
With heat meter: No.
In-built circulation pump: No.
High-efficiency pump (according to EC 547/2012 and EC 641/2009): No.
With pressure gauge: No.
With control valve: Yes
With shut-off valve: No.
With check valve: No.
With safety valve: No.
With thermometer: No.
Drain cock: No.
With mixer motor: Yes
Suitable for servo motors: No.
With three-way valve: No.
With pump ball valve: No.
With connection temperature sensor: Yes
With connection expansion tank: No.
With automatic ventilation: No.
Wall installation: No.
With wall mounting bracket: Yes
With feet: No.
With differential pressure control: No.
With heat insulation: Yes
Heating circuit controller expandable: No.
Distribution bars expandable: No.
Heat exchanger expandable: No.
Width 570 mm
Height: 663 mm
Depth: 150 mm

Product type: Expansion module

Width: 570.00 mm

Height: 663.00 mm

Depth: 150.00 mm

: Doesn't apply

Type: others

Max. temperature: 25 °C

Min. temperature: 0 °C

Description

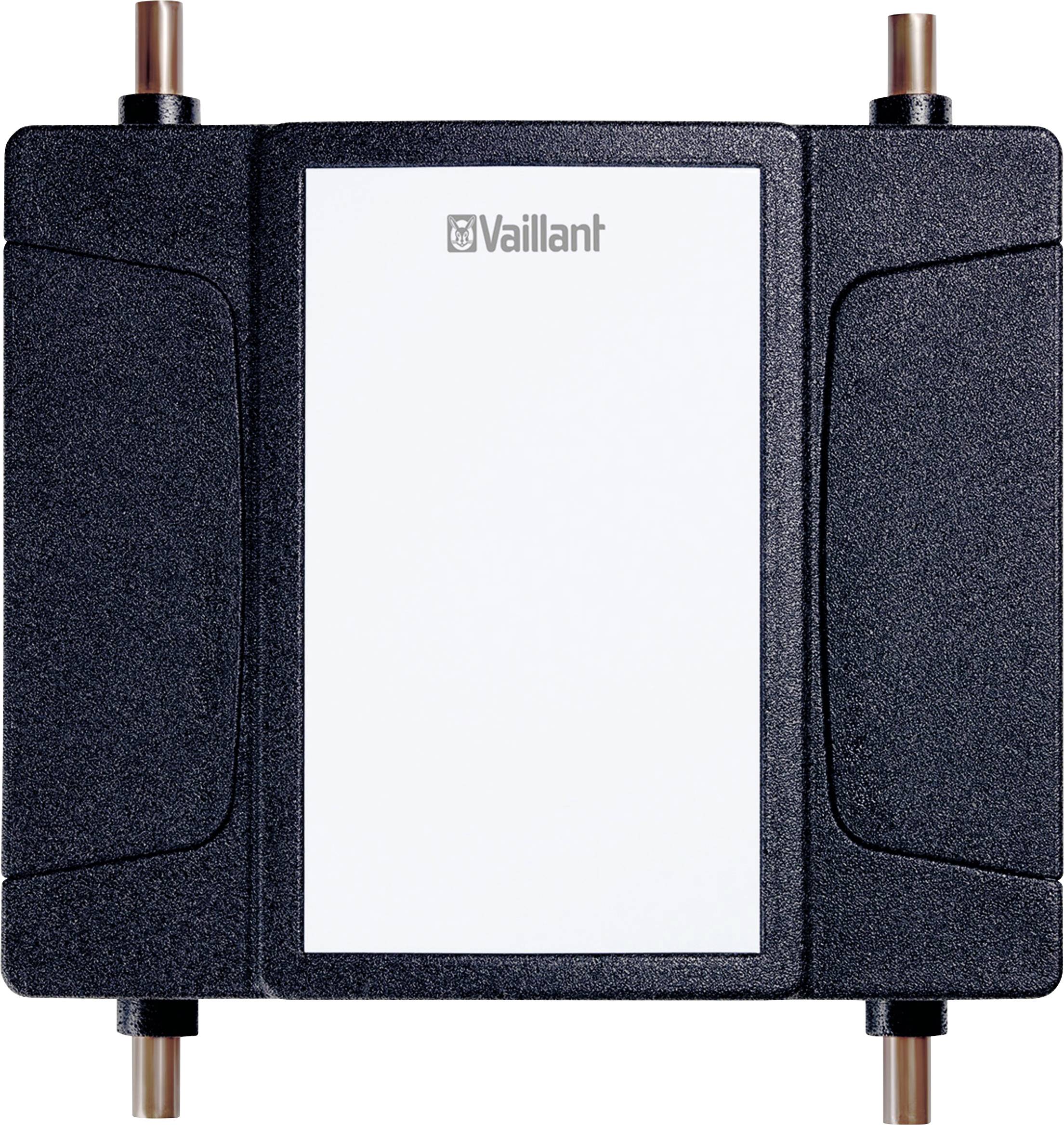

NaturalCooling module VWZ NC 19/4 Expansion module for flexoTHERM and flexoCOMPACT for using free environmental energy for passive building cooling
