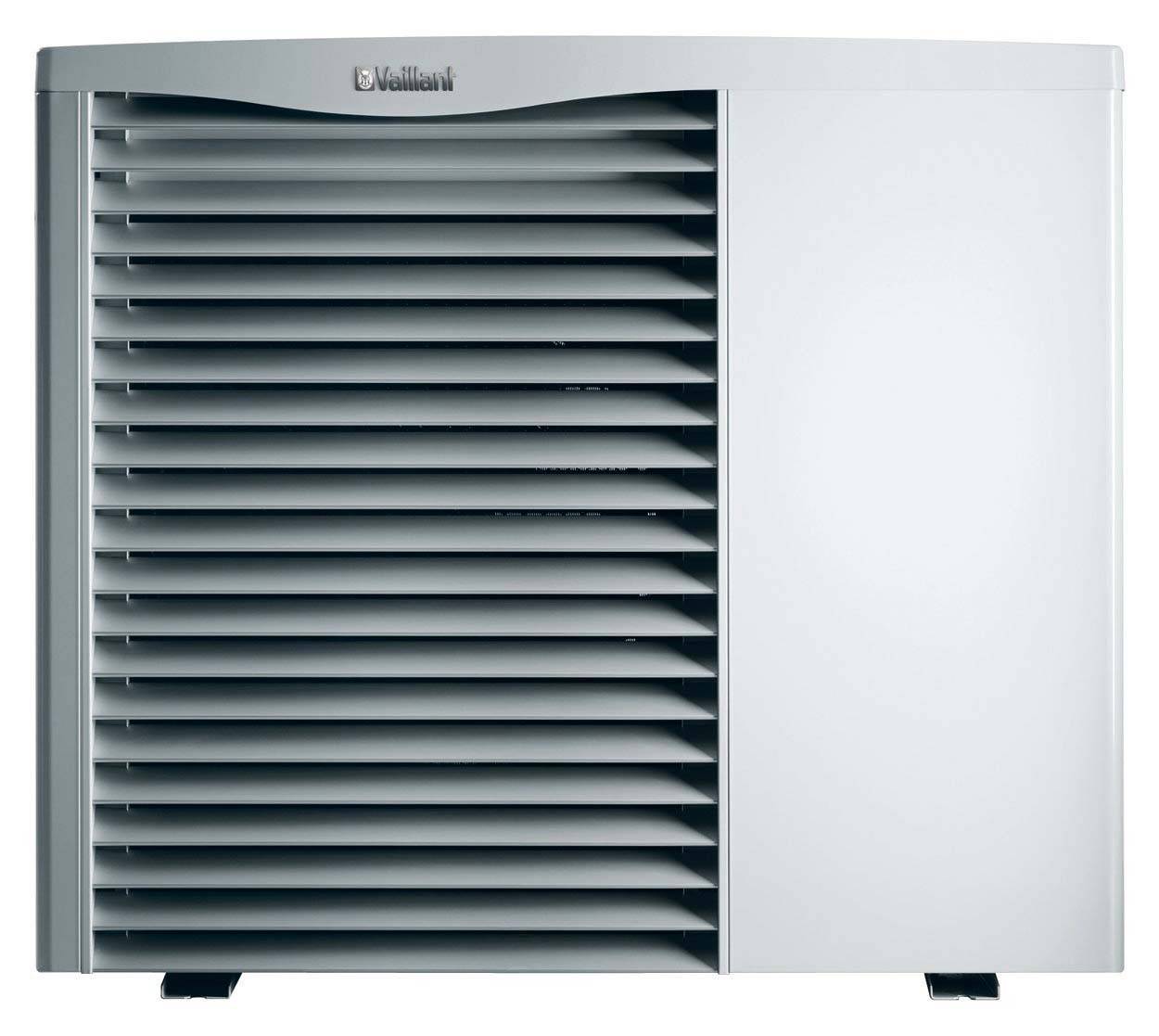

Vaillant 10022069 10022069 Heat pump inside module Doesn't apply
EAN:
Part number:
Item no:
Technical specifications
- Material jacket: Steel
- Material fittings: Other
- Material: Copper pipe
- Primary connection: Gas cylindrical internal thread (BSPP)
- Primary nominal diameter: 1 in. (25)
- Secondary Connection: Other
- Nominal diameter secondary: Other
- Pump connection: External gas cylindrical BSPP (ISO 228-1)
- Size of pump connection: 3/4 in. (20)
- Max. Operating pressure 3 bar
- Medium temperature 20..55°C
- Setting range temperature 20..55°C
- Type of temperature control: Electrical
- Output 0..6 kW
- Suitable for cooling: Yes
- Suitable for heating: Yes
- Suitable for glycol: No.
- Suitable for ethanol: No.
- Design: Unmixed heating circuit
- With adapter for heat meter: No.
- With heat meter: No.
- In-built circulation pump: No.
- High-efficiency pump (according to EC 547/2012 and EC 641/2009): Yes
- With pressure gauge: Yes
- With control valve: No.
- With shut-off valve: No.
- With check valve: No.
- With safety valve: Yes
- Safety valve opening pressure 3 bar
- With thermometer: No.
- Drain cock: No.
- With mixer motor: No.
- Suitable for servo motors: No.
- With three-way valve: Yes
- With pump ball valve: No.
- With connection temperature sensor: Yes
- With connection expansion tank: Yes
- With automatic ventilation: Yes
- Wall setup: Yes
- With wall mounting bracket: No.
- With feet: Yes
- With differential pressure control: No.
- With heat insulation: Yes
- Heating circuit controller expandable: Yes
- Distribution bars expandable: Yes
- Heat exchanger expandable: No.
- Width 595 mm
- Height: 1880 mm
- Depth: 693 mm
- Product type
Heat pump inside module
- Width
595.00 mm
- Height
1880.00 mm
- Depth
693.00 mm
Doesn't apply
- Type
Unmixed heating circuit
- Max. temperature
55 °C
- Min. temperature
20 °C
Description
UNITOWER VWL 58/5 IS
