Technical specifications

Design: Ceiling/wall spot
Mounting type: Construction
Voltage: 230 V
Number of heating levels: 1
Power level OFF: Yes
Min 800 W heating power
Max. 800 W heating power
Min Installation height 0.2 m.
Mounting by wrapping table: No.
Protection class (IP) IP21
Height: 592 mm
Width 1492 mm
Depth: 17 mm
Colour: white
RAL number: 9016
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.

Product type: Infrared heating

: IP21

Factory colour: White

Dim: (W x H x D) 1492.00 x 592.00 x 17.00 mm

Weight: 18.5000 kg

Width: 1492.00 mm

Height: 592.00 mm

Depth: 17.00 mm

Type: Ceiling holder/wall spot holder

UKCA: yes

Description

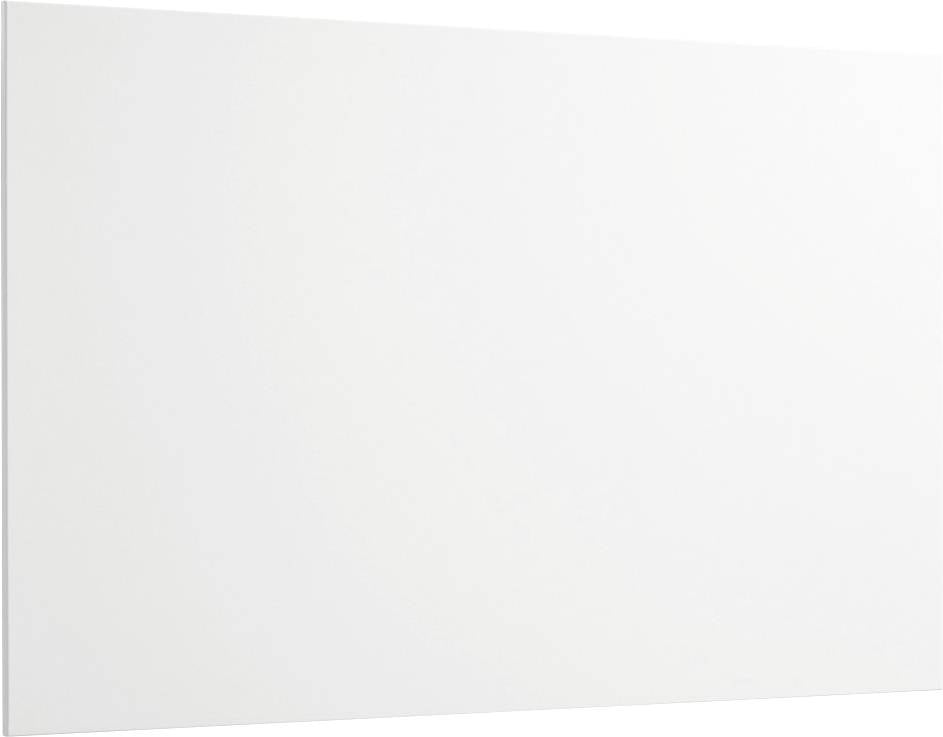

Infrared heater VEI 800/1 MW 800W Panel, white, 592x1492x17mm Special feature, high radiation level due to efficient isolation of the rear side of the device, very short heating time for flexible heat provision, modern frameless IR heater design, small space requirement for installation due to flat device design and low wall distance, For the replacement of storage heaters and conventional convectors in the building stock as well as in the new building in combination with photovoltaic, for all material and processing errors Equipment, horizontal/vertical wall mounting and ceiling mounting possible, robust, scratch-resistant & structured burning paint in matte white, effective insulation to the rear of the building, connection cable, 2-pole/1.9 m long with pre-assembled mains plug, 2 integrated thermal safety switches, Supplementary control technology for maximum operating comfort and easy installation Heating power 800W Power supply 230V/50Hz Product dimensions (height/width/depth) 592/1492/17 mm Weight 17 kg

This text is machine translated.

Description

Infrared heater VEI 800/1 MW 800W Panel, white, 592x1492x17mm Special feature, high radiation level due to efficient isolation of the rear side of the device, very short heating time for flexible heat provision, modern frameless IR heater design, small space requirement for installation due to flat device design and low wall distance, For the replacement of storage heaters and conventional convectors in the building stock as well as in the new building in combination with photovoltaic, for all material and processing errors Equipment, horizontal/vertical wall mounting and ceiling mounting possible, robust, scratch-resistant & structured burning paint in matte white, effective insulation to the rear of the building, connection cable, 2-pole/1.9 m long with pre-assembled mains plug, 2 integrated thermal safety switches, Supplementary control technology for maximum operating comfort and easy installation Heating power 800W Power supply 230V/50Hz Product dimensions (height/width/depth) 592/1492/17 mm Weight 17 kg

This text is machine translated.
