Vaillant 10045839 Building shell set
EAN:
Part number:
Item no:
Technical specifications
- Material jacket: Plastic
- Material: Fittings: Brass
- Material: Steel
- Primary connection: Other
- Primary nominal diameter: DN 40
- Secondary Connection: Other
- Nominal diameter secondary: 2 in. (50)
- Max. Operating pressure 6 bar
- Setting range temperature 2..90°C
- Thermometer display range 0..120°C.
- Power: 224 kW
- Suitable for heating: Yes
- Suitable for glycol: Yes
- Suitable for ethanol: No.
- Design: Unmixed heating circuit
- With adapter for heat meter: No.
- With heat meter: No.
- Built-in circulating pump: Yes
- With pressure gauge: No.
- With thermometer: Yes
- With mixer motor: No.
- With three-way valve: No.
- With pump ball valve: Yes
- With connection temperature sensor: No.
- With connection expansion tank: No.
- With automatic ventilation: No.
- Wall setup: Yes
- With wall mounting bracket: No.
- With feet: No.
- With differential pressure control: No.
- With heat insulation: Yes
- Distribution bars expandable: Yes
- Width 720 mm
- Height: 410 mm
- Depth: 260 mm
- Product type
Building shell set
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3147456 Vaillant 10045839 Building shell set
Description

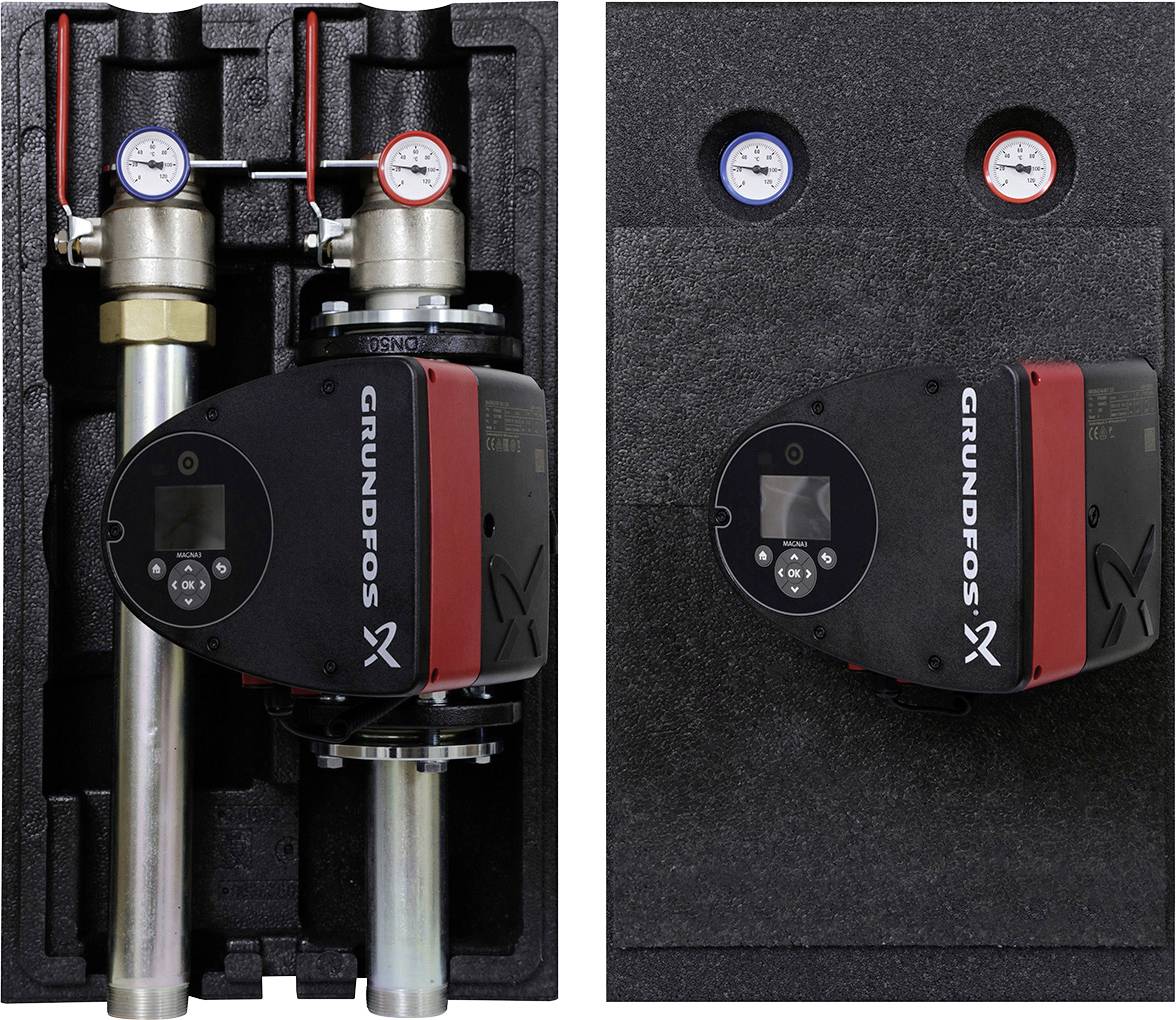

Pipe group without DN40 mixer, feed/return Rp 2"
, He-pump, GEG
