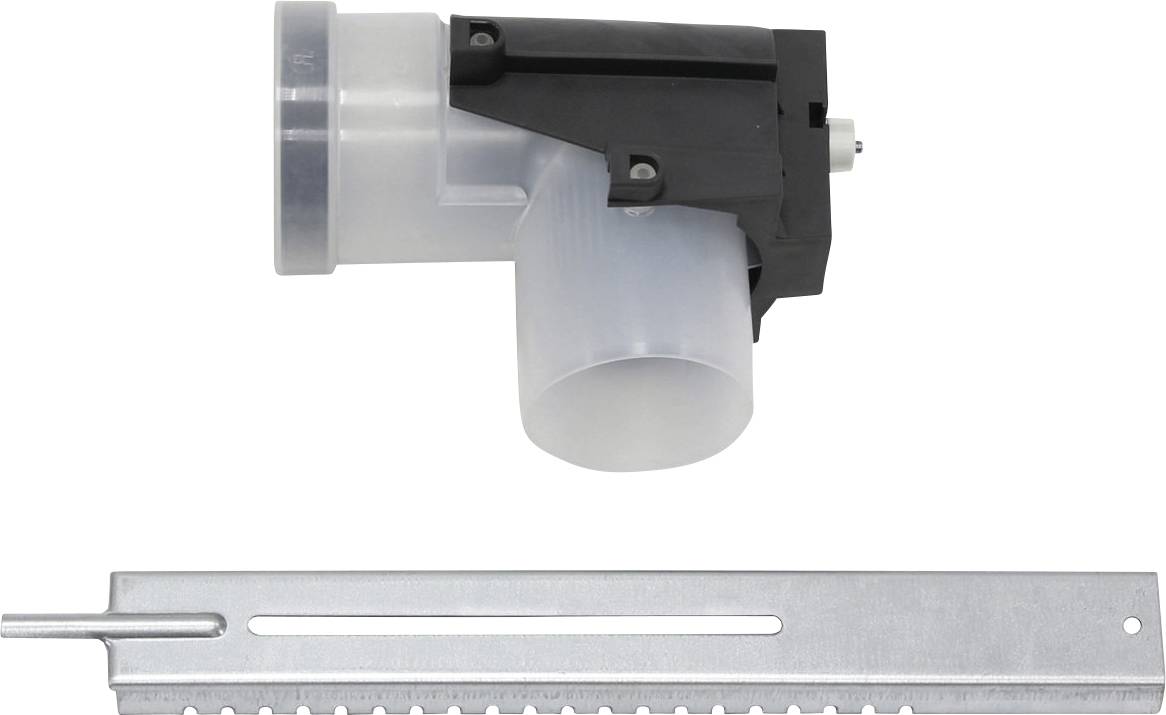

Technical drawing of a pipe elbow with connections on a mounting plate. On the left, the pipe extends horizontally, on the right it extends vertically.

Technical drawing of a pipe elbow with connections on a mounting plate. On the left, the pipe extends horizontally, on the right it extends vertically.

Vaillant

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Shape: Sheet
Material: Plastic
Surface protection: Untreated
Surface treatment: Untreated
Inner diameter of connection 1: 80 mm
Inner diameter of connection 2: 80 mm
Connection port 1: Sleeve
Connection port 2: Sleeve
Smooth arch design
With measuring connection: No.
With lip ring: Yes
Adjustable: No.
Angle of sheet: 87 °

Product type: Arc

Content: 1 pc(s)

Material (details): Plastic

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3147821 Vaillant Arc

Description

Support bow with console for rigid exhaust pipe DN 80, PP

This text is machine translated.

Description

Support bow with console for rigid exhaust pipe DN 80, PP
