Vaillant VED E 11-13 L F VED E 11-13 L F Tankless heater A (A+ - F) 14 kW
EAN:
Part number:
Item no:
Technical specifications
- Energy efficiency class: A
- Energy efficiency classes: A+ to F
- Max. Permissible operating pressure: 10 bar
- Nominal capacity 0.2 l
- Material of the pressure vessel: Plastic
- Rated output: 13.5 kW
- Nominal voltage 1 400 V
- Nominal voltage 2 400 V
- Suitable for KNX: No.
- Operation: Wireless-remote control
- Temperature display: Without
- With display: No.
- Mounting type: Under table
- Power control: Electronic
- Connected load 11..13.5 kW
- Heating system: Bare wire
- Safety shut-down: Electronic
- Protection class (IP) IP24
- Connection of cold drinking water: External thread
- Nominal diameter of cold drinking water: 3/8 in. (10)
- Outer tube diameter of cold drinking water: 21 mm
- Hot water connection: External thread
- Nominal diameter of hot water connection: 3/8 in. (10)
- Hot drinking water outside tube diameter: 21 mm
- Suitable for plastic pipes: Yes
- Suitable for pre-heated water: Yes
- Type of control: Electronic
- With fitting: No.
- Height: 293 mm
- Width 188 mm
- Depth: 85 mm
- Weight: 2.5 kg
- Product type
Tankless heater
- Operating voltage
400 V
14 kW
IP24
- Dim
(W x H x D) 188.00 x 293.00 x 85.00 mm
- Weight
2.50 kg
A (A+ - F)
- Mounting type
Undertable
- Width
188.00 mm
- Height
293.00 mm
- Depth
85.00 mm
- Nominal voltage
400 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3148189 Vaillant VED E 11-13 L F VED E 11-13 L F Tankless heater A (A+ - F) 14 kW
Description

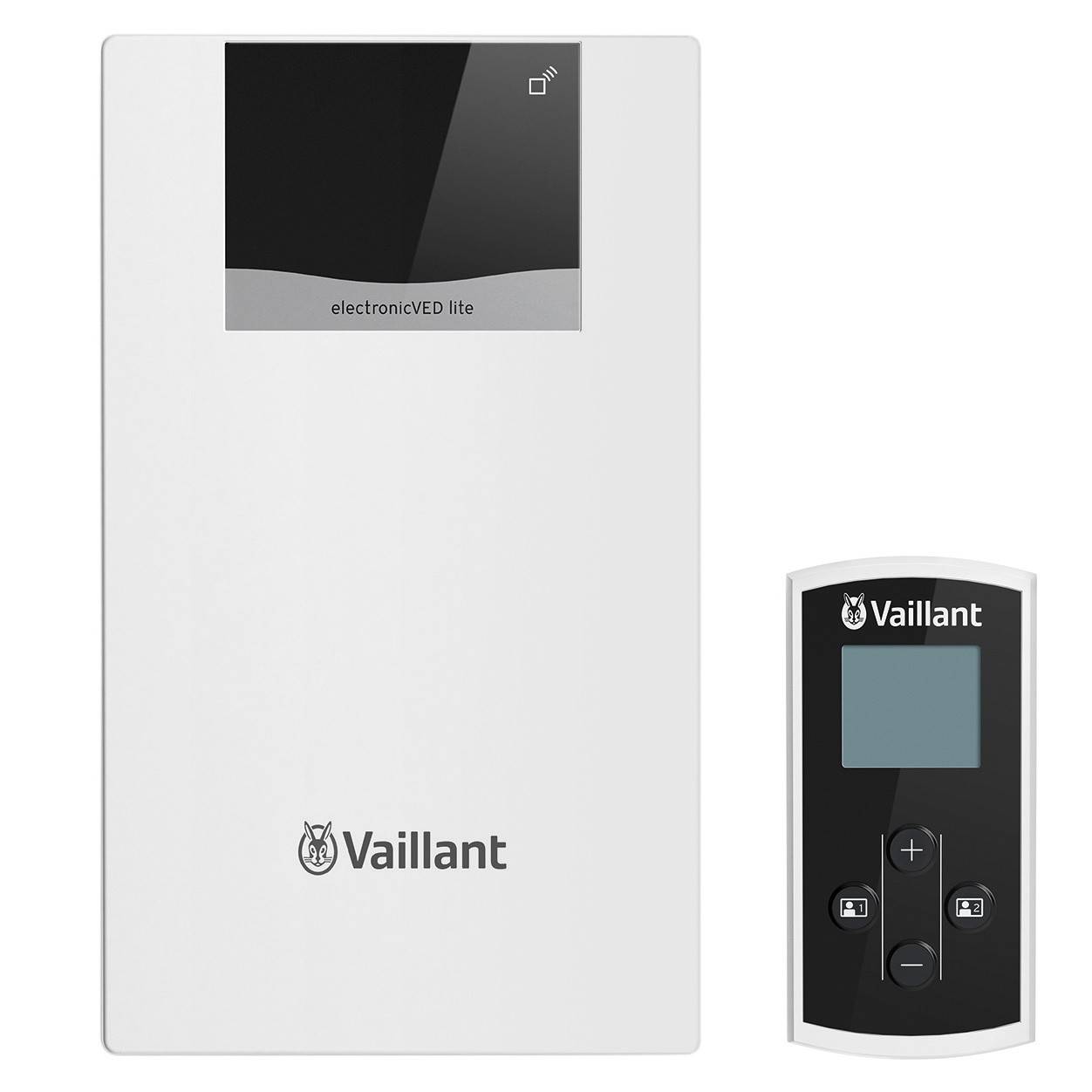

ElectronicVED E 11-13/1 L F ElectronicVED lite unit series Product advantages, under-table device variant for wash basins or kitchen sinks, high operating comfort thanks to standard wireless remote control, warm-water comfort: A constant, continuously adjustable outlet temperature from 20 to 60°C, suitable for the subsequent heating of pre-heated water up to 60°C, continuous warm-water: max. 4 L/minute, optional protection against splashing on 43 Grd.C can be activated, up to 15% less energy consumption compared to electro-small storage equipment, infinitely adjustable temperature control, electronic power control, selectable nominal power: 11kW or 13.5 kW (internally convertible), suitable for plastic pipe systems according to DIN 1988 and DIN 16892/16893, UV-light-resistant equipment cover (no yellowing through UV radiation) Nominal power 11-13.5 kW Mains voltage 3/PE 400 V/50 Hz max. PTO 4 l/min Temperature range 20-60 gr.C Cold/hot water connection R 3/8 Protection type IP 24 Height/width/depth 293/174/101 mm Weight 2.3 kg Warm water energy efficiency class A (Spectrum A+ to F)
To operate this tankless water heater you need a three-phase AC outlet.
Installing such high-voltage tankless water heaters requires prior approval of your utility provider and may only be installed by the utility provider, or by a qualified and certified subcontractor only.
This text is machine translated.
To operate this tankless water heater you need a three-phase AC outlet.
Installing such high-voltage tankless water heaters requires prior approval of your utility provider and may only be installed by the utility provider, or by a qualified and certified subcontractor only.
