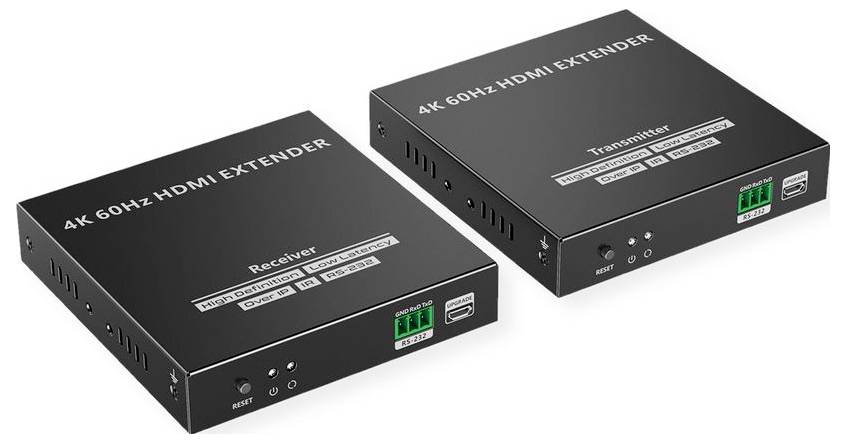

Value 14.99.3568 HDMI™, RJ45 HDMI® Extender (over IP) via local IP network, via RJ45 network cable 120 m
EAN:
Part number:
Item no:
Highlights & Details
VALUE 14.99.3568 audio/video power amplifier AV-transmitter & receiver
- AV-transmitter & receiver 3840 x 2160 pixels
- Maximum possible transmission range: 120 m.
- 60 Hz
- HDCP
- In-line direct current connection (DC)
Technical specifications
- Product type
HDMI® Extender (over IP)
- Transfer type
via local IP network
via RJ45 network cable
- Interfaces (input)
HDMI™
RJ45
- Interfaces (output)
HDMI™
RJ45
- Resolution (max.)
3840 x 2160 p
- Range (max.)
120 m
- Factory colour
Black
- Weight
496 g
- Length
106 mm
- Width
103 mm
- Height
21 mm
- Dim
(L x W x H) 106 x 103 x 21 mm
- No. of outputs
2 x
- No. of inputs
1 x
- Power supply (LOV)
via PSU
- Cable design
Round
- Cable length
0 cm
- Version
Cable
- Display resolution
3840 x 2160 Pixel
- Frame rate
60 Hz
- Keyboard layout
German, QWERTZ
- Cable use
C13/C14 appliances
- HDCP
Yes
- Type
AV-transmitter & -receiver
- Transfer type
Corded
- UKCA
yes
- Operating temperature (T-T)
-20 - 60 °C
- AC adapter included
yes
- Serial ports quantity
1
- DC-in jack
yes
- Bandwidth
18 Gbit/s
- Manual
yes
- Operating voltage
5 V
- Receiver dimensions (WxDxH)
106 x 103 x 21 mm
- Receiver weight
242 g
- Storage temperature (T-T)
-30 - 70 °C
- Package weight
1 kg
- HDMI in
1
- Number of HDMI outputs
2
- Transmitter dimensions (WxDxH)
106 x 103 x 21 mm
- Transmitter weight
254 g
- Maximum transfer distance
120 m
- Mounting brackets included
yes
- RJ-45 input ports
1
- RJ-45 output ports
1
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3629555 Value 14.99.3568 HDMI™, RJ45 HDMI® Extender (over IP) via local IP network, via RJ45 network cable 120 m
Description
This HDMI extension kit from transmitter and receiver uses IPCOLOR-Stream-Technology for high-resolution transmission with low latency. The 4K@60Hz HDMI signal can be extended up to 120 m over a network, supports a one-to-one connection as well as one-to-many connections - even via Gigabit switch or switch cascades.
