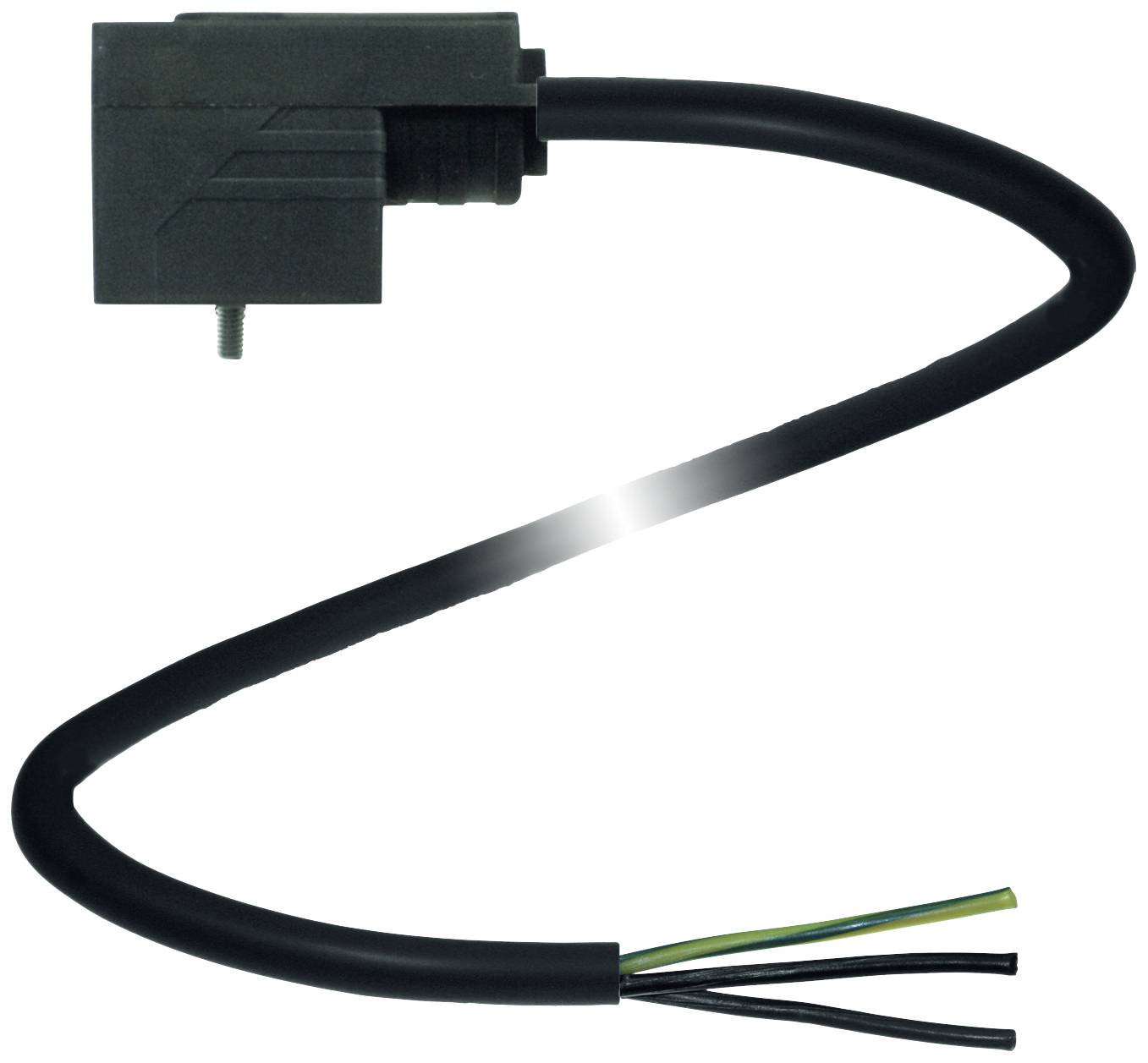

VALVE PLUG VMA-2+P/Z2-5M-PVC VMA-2+P/Z2-5M-PVC Pins:2 + PE 245823 Pepperl+Fuchs Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Square connector
Type
A standard
Connection
Open end cable
IP rating
IP65
IP67
Nominal voltage
24 V DC/AC
Datasheet (PDF)
Technical specifications
- Pins
2 + PE
- Conductor material
PVC
- Product type
Square connector
- Type
A standard
- Connection
Open end cable
IP65
IP67
- Nominal voltage
24 V DC/AC
- Display
LED
- Total no. of pins
+ PE
- Weight
201.1 g
- Manufacturer part #
245823
- Content
1 pc(s)
- Cable Ø
4.8 mm
- Cable length
5 m
- Cable cross section
0.5 mm²
- Length
5 m
- Circuit layout description
incl. diode
- Standard
Industrial-grade
- Max. temperature
85 °C
- Min. temperature
-20 °C
- Type
VMA-2+P/Z2-5M-PVC
- Features
LED
- Leading contact (PE)
Yes
- Wireless charging
No
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2630516 VALVE PLUG VMA-2+P/Z2-5M-PVC VMA-2+P/Z2-5M-PVC Pins:2 + PE 245823 Pepperl+Fuchs Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2630516 VALVE PLUG VMA-2+P/Z2-5M-PVC VMA-2+P/Z2-5M-PVC Pins:2 + PE 245823 Pepperl+Fuchs Content: 1 pc(s)
Description
Valve plug, shape A, 2+PE, Z diode, PVC cable, Number of pins: 2 + PE, length: 5 m, wires: 3 x 0.5 mm2, 20 AWG
This text is machine translated.
This text is machine translated.
Features
- General dataConnector 1 Connection: DIN valve plug Design: Valve plug shape A Layout/design: Angular Locking: Screw connection No. of pins 2 + PEConnector 2 Connection: Free cable end Individual adjustment: Stripped 50 mmDisplays/controlsYellow LED: Function displayElectrical DataOperating voltage: Max. 24 V AC/DCOperating current: Max. 4 AInterference suppression: Zener diodeComplianceProtection class EN 60529Connector: Valve connector : DIN EN 175301-803FLAMMABILITY: DIN VDE 0482, DIN EN 50265-2-1Ambient conditionsAmbient temperature Connectors: -20 ... 85 °C (-4 ... 185 °F) Cable, fixed: -40 ... 80 °C (-40 ... 176 °F) Cable, movable: -5 ... 80 °C (23 ... 176 °F)Pollution level 3Mechanical data:Connectors Tightening torque: 0.6 Nm Tool mounting: Screw M3 x 29Protection class IP65/IP67Cable: According to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter 4.8 mm Bending radius > : 5 x cable diameter, fixed laid Sheath color: Black (similar to RAL 9005) Core number: 3 Core cross-section 0.5 mm2 Wire color: Wire 1: Black 1 | Wire 2: Black 2 | Wire 3: Green/yellow Core construction: 16 x 0.2 mm Ø Length: 5 m Cable short code: Li YY 3 x 0.50Weight: 201.1 gMaterialsConnectors Grip body: TPU, black Seal: TPU , molded Contact surface: SN V-0 combustibilityCable Sheath: PVC Wire insulation: PVC Oil resistance: Good V-0 combustibility
