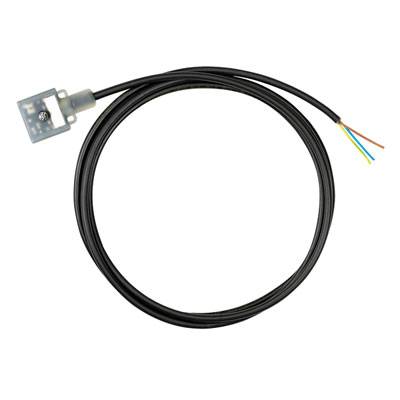

Valve plug with integrated seal Black SAIL-VSA-10V(0.5) 1845131000 Weidmüller Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Square connector
Type
A standard
Connection
Open end cable
IP rating
IP67 (when locked)
Number of pins
3
Datasheet (PDF)
Highlights & Details
Valve plug with integrated seal
- SAIL-VSA -10 V (0.5)
Technical specifications
- Contact surface: Tin-plated
- Nominal current: 4 A
- Sheath material: PVC
- Product type
Square connector
- Type
A standard
- Connection
Open end cable
IP67 (when locked)
- Number of pins
3
- Nominal voltage
24 V
- Display
LED
- Total no. of pins
3
- Weight
419 g
- Manufacturer part #
1845131000
- Factory colour
Black
- Content
1 pc(s)
- Cable length
10.00 m
- Cable cross section
0.5 mm²
- RoHS-compliant
Yes
- Circuit layout description
incl. diode
- Connector type
Plug, right angle
- Max. temperature
+80 °C
- Min. temperature
-25 °C
- Type
SAIL-VSA-10V(0.5)
- Features
Built-in sealing
Suitable for drag chains
Halogen-free
- Connection side A
A type solenoid connector
- Connection side B
Cable, open end
- Cross-section (sensor/actuator wiring)
0.5 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 204141 Valve plug with integrated seal Black SAIL-VSA-10V(0.5) 1845131000 Weidmüller Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 204141 Valve plug with integrated seal Black SAIL-VSA-10V(0.5) 1845131000 Weidmüller Content: 1 pc(s)
Description
Valve plug with integrated seal. End of the open valve plug, A. This valve plug has a transparent casing with an integrated seal. The connection cross-section corresponds to 0.5 mm² and can thus be connected directly with our SAI IDC distributor. The operating state of the valve plug is used by a display element (LED) lights. The valve plug, all a protective circuit. The Weidmüller products include valve plug of the types A, B, C according to DIN and industry standard. The protection class IP67 is in when connected.
