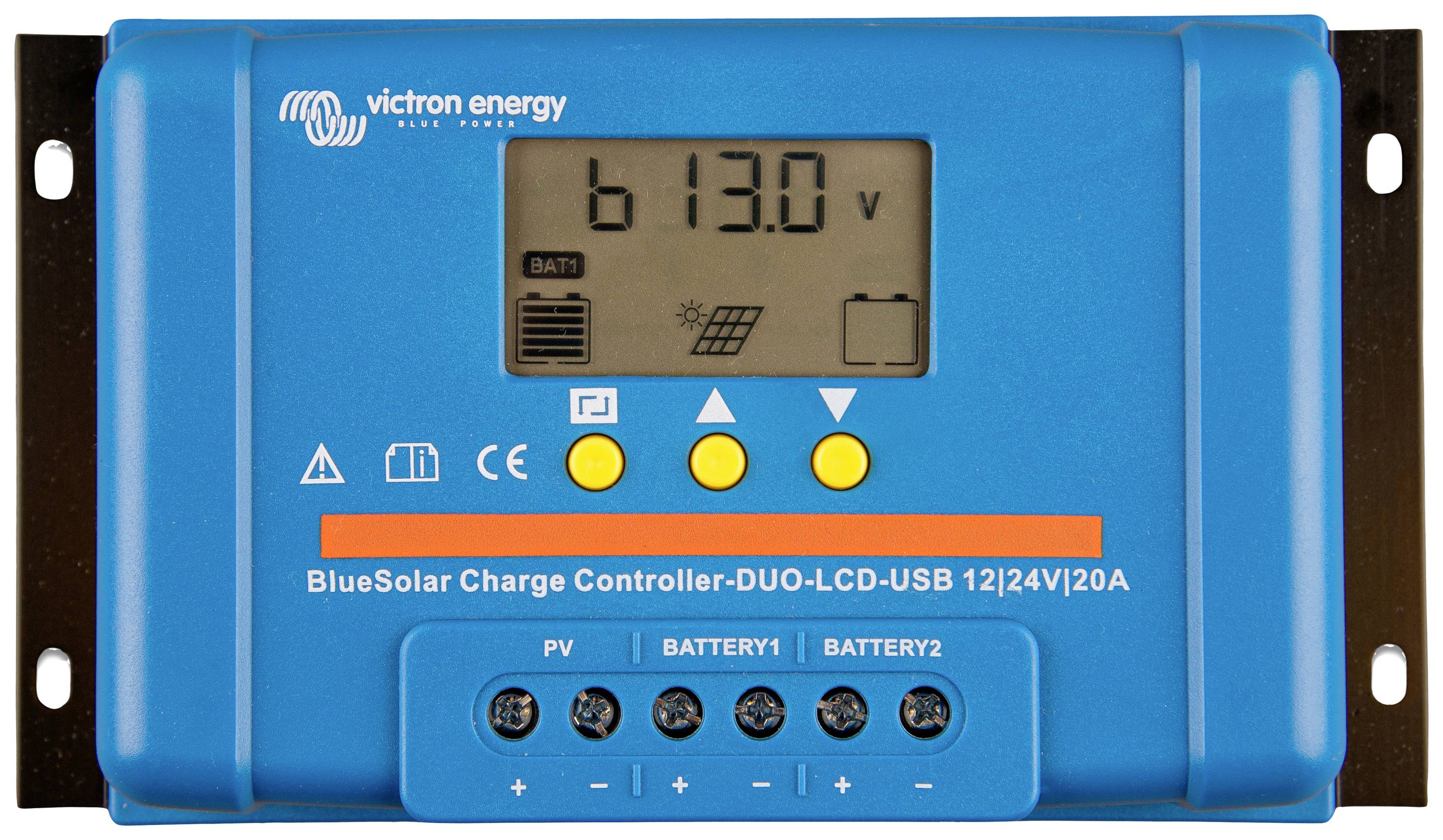

Victron Energy BlueSolar PWM DUO-LCD & USB 12 / 24V-20A Charge controller PWM 12 V, 24 V 20 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Solar recharger regulator Victron BlueSolar PWM DUO-LCD & USB 12 / 24V-20A
- Charging current 20 A
- 12/24 VDC
- Own consumption 10 mA
- This text is machine translated.
Technical specifications
- Product type
Charge controller
- Nominal voltage
12 V
24 V
- Charging current (max.)
20 A
- Own power consumption
10 mA
- Matching rechargeable battery
LiFePO4
- Control type
PWM
- Dim
(W x H x D) 184 x 101.5 x 47.1 mm
- Weight
300 g
- Features
Dual ouput
- Width
184 mm
- Height
101.5 mm
- Depth
47.1 mm
- Required supply
10 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3059110 Victron Energy BlueSolar PWM DUO-LCD & USB 12 / 24V-20A Charge controller PWM 12 V, 24 V 20 A
User & Safety Instructions
User & Safety Instructions 3059110 Victron Energy BlueSolar PWM DUO-LCD & USB 12 / 24V-20A Charge controller PWM 12 V, 24 V 20 A
Description
Features
- Charging current 20 A
- 12/24 VDC
- Own consumption 10 mA
- LCD
- IP20
- Earthing screw terminal 16 mm²
- 2x 5 V USB output
- Programmable
- Liquid crystal display. For status monitoring and setup
- External temperature sensor included
- 2 separate battery outputs. Charging of two separate batteries. For example:
- Starter battery and service battery of a boat or caravan.
- Protection. Protection against reverse polarity connection of the solar module or the battery
- Programmable battery charging algorithm. Algorithms for AGM, GEL or flooded lead batteries and LiFePO4 batteries (with internal BMS).
- Two 5 volt USB-outputs. Maximum power of both outputs combined
Scope of delivery
- Solar charge regulator
- User manual.
