Victron Energy Cyrix-ct 12/24V 230A Relay component Nominal voltage: 12 V, 24 V Switching current (max.): 500 A 1 pc(s)
Product type
Relay component
Nominal voltage
12 V
24 V
Switching voltage (max.)
27.6 V AC
Switching current (max.)
500 A
Type
Cyrix-ct 12/24V 230A
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

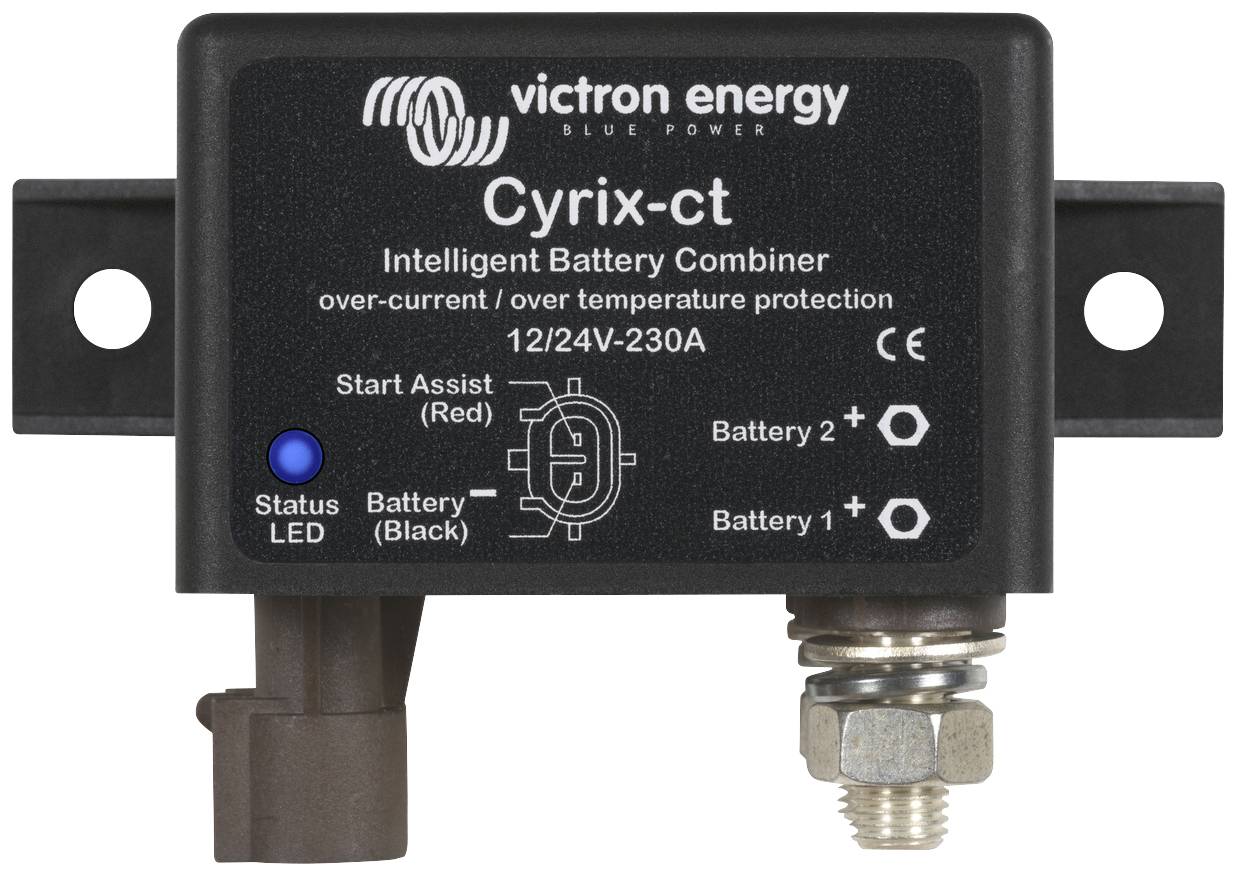

Intelligent battery relay Victron Cyrix-CT 12/24V 230A
- Continuous current and shutdown current at 12V or 24V: 230A
- Intelligent battery monitoring
- Long bolts so that more than one power cable can be connected
Technical specifications
- Product type
Relay component
- Type
Cyrix-ct 12/24V 230A
- Connection
Bolt fixings
- Factory colour
Black
- Min. pick-up voltage
12 V DC
- Max. pick-up voltage
24 V DC
- Nominal voltage
12 V
24 V
- Switching voltage (max.)
27.6 V AC
- Switching current (max.)
500 A
- Features
+ LED
IP54
- Length
100 mm
- Width
65 mm
- Height
50 mm
- Dim
(L x W x H) 100 x 65 x 50 mm
- Content
1 pc(s)
- Weight
0.3
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3059032 Victron Energy Cyrix-ct 12/24V 230A Relay component Nominal voltage: 12 V, 24 V Switching current (max.): 500 A 1 pc(s)
Datasheet 3059032 Victron Energy Cyrix-ct 12/24V 230A Relay component Nominal voltage: 12 V, 24 V Switching current (max.): 500 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3059032 Victron Energy Cyrix-ct 12/24V 230A Relay component Nominal voltage: 12 V, 24 V Switching current (max.): 500 A 1 pc(s)
Description
The Cyrix battery coupler is a high-performance microprocessor-controlled relay that automatically switches batteries in parallel when one of them has reached a specified voltage (indicating that the battery is being charged) and that disconnects the batteries if the voltage drops below the maintenance voltage value (indicating that: one or both batteries are being discharged). Cyrix battery couplers are excellently suited for replacing separator diodes. Its main feature is that there is virtually no loss of voltage so that the output voltage of the AC generators or battery chargers does not need to be increased.
This text is machine translated.
This text is machine translated.
Features
- Protection against overheating
- LED status indicator
- 12/24 V automatic detection of the voltage range
- Voltage sensing in both directions and power supply of both the batteries
Scope of delivery
- Battery relay
