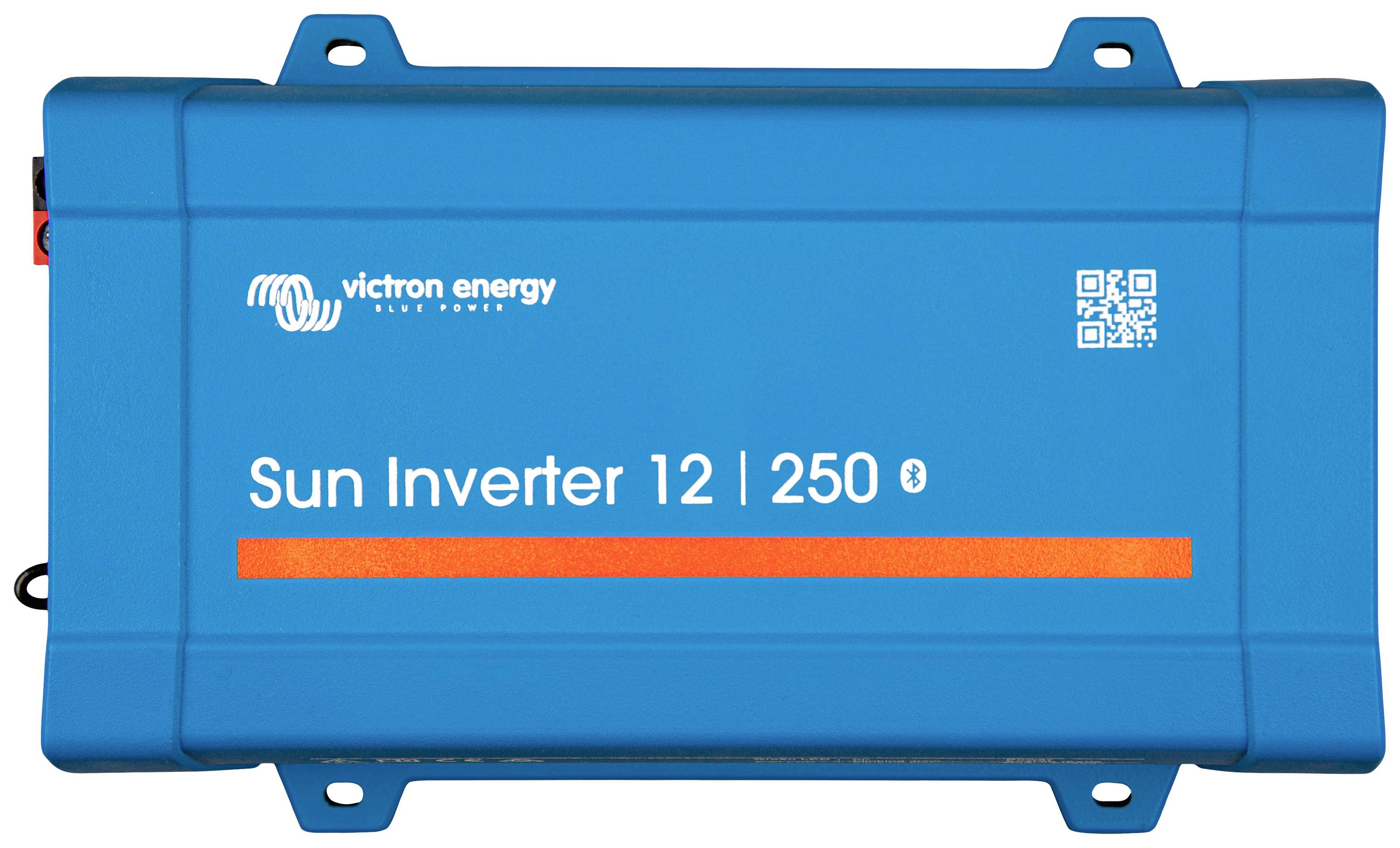

Victron Energy Inverter Sun 12/250-15 IEC 375 W 12 V - 230 V Sine wave
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Inverter Victron SUN 12/250-15 IEC
- 250 VA
- 200W
- 230VAC 50 / 60HZ
Technical specifications
- Input voltage
9.2 - 17 V
- Product type
Inverter
- Signal output type
Sine wave
- Output voltage
230 V
375 W
- Input voltage
12 V
- Inputs
Screw terminals
- Output
PG socket
- Output frequency
50 Hz
- Input current (max.)
15 A
- Remote control
Yes
- Weight
2.4 kg
- Width
260 mm
- Height
165 mm
- Depth
86 mm
- Peak output power
375 W
- Type
Sun 12/250-15 IEC
- Features
Sine wave
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3059049 Victron Energy Inverter Sun 12/250-15 IEC 375 W 12 V - 230 V Sine wave
User & Safety Instructions
User & Safety Instructions 3059049 Victron Energy Inverter Sun 12/250-15 IEC 375 W 12 V - 230 V Sine wave
Description
The Sun inverter combines a sine wave inverter and a PWM solar charger in one housing and is easy to install with a minimum of cabling. The inverter can be used to operate household appliances that need 230 VAC via leisure or car batteries with a voltage of 12 V or 24 V. The solar charger ensures that the batteries are charged using the energy generated by your solar panels. The charging algorithm is programmable. The parameters of the inverter and the solar charger can be read via Bluetooth with the VictorConnect APP. In addition, the inverter has a VE.Direct port for connection to an GX device or GlobalLink 520 for system monitoring.
This text is machine translated.
This text is machine translated.
Features
- Proven reliability
- High switch-on power
- ECO mode
- PWM solar charger
- Remote-controlled on/off switching
- LED diagnosis
- Bluetooth
- VE.Direct communication connection
- Monitoring via the VictronConnect APP or an GX device
- Fully configurable via the VictronConnect APP
- Load switching to another AC source
- Easy installation through screw terminals
Scope of delivery
- Inverter
- User manual.
