Victron Energy ORI110123610 DC/DC Orion 110/12-30A (360W) Iso DC-to-DC converter
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

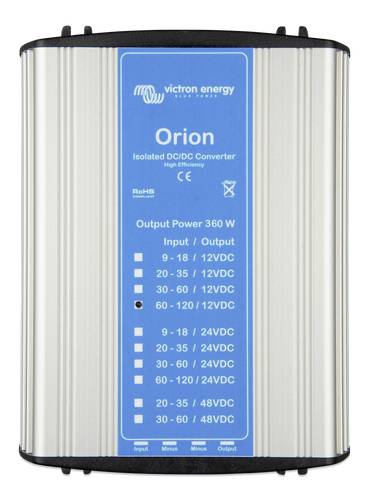

DC/DC converter Victron Orion 110/12-30A (360W) ISO
- Input voltage 60 – 140 V
- Output voltage 12.5 V or 24 V
- Power 360 W (12 - 30 A)
Technical specifications
- Product type
DC-to-DC converter
- Dim
(W x H x D) 190 x 132 x 82 mm
- Weight
1.4 kg
- Factory colour
Silver (matt)
Blue
- Content
1 pc(s)
- Width
190 mm
- Height
132 mm
- Depth
82 mm
- System voltage
12/24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2878209 Victron Energy ORI110123610 DC/DC Orion 110/12-30A (360W) Iso DC-to-DC converter
Datasheet 2878209 Victron Energy ORI110123610 DC/DC Orion 110/12-30A (360W) Iso DC-to-DC converter
User & Safety Instructions
User & Safety Instructions 2878209 Victron Energy ORI110123610 DC/DC Orion 110/12-30A (360W) Iso DC-to-DC converter
Description
Orion-Tr DC/DC converter, insulated:
Remote-controlled on/off switching
The remote-controlled on/off switching makes a high-current switch unnecessary in the input cabling. The remote-controlled on/off connection can be controlled with a power-saving switch or through the run/stop switch of the motor (see manual).
All models are short circuit-proof and can be switched in parallel to increase the output current. You can connect unlimited number of devices in parallel.
IP43 Protection: If the unit is installed with the screw terminals facing down.
Screw terminals: No special tools are required for installation.
Input fuse: Only on the 12 V and 24 V models
This text is machine translated.
Remote-controlled on/off switching
The remote-controlled on/off switching makes a high-current switch unnecessary in the input cabling. The remote-controlled on/off connection can be controlled with a power-saving switch or through the run/stop switch of the motor (see manual).
All models are short circuit-proof and can be switched in parallel to increase the output current. You can connect unlimited number of devices in parallel.
IP43 Protection: If the unit is installed with the screw terminals facing down.
Screw terminals: No special tools are required for installation.
Input fuse: Only on the 12 V and 24 V models
This text is machine translated.
Scope of delivery
- DC DC Converters
