Victron Energy PMP482507010 EasySolar ll 48/5000/70-50 MPPT 250/100 GX Current Transformers
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Victron Power system EasySolar II 48/5000/70-50 MPPT 250/100 GX
- 48 VDC
- Maximum PV-Idle voltage 250 V
- PV 5.8 kW
- MPPT 250/100-tr
- 70 A module charging current
- 100 A inverter charging current
- AC 5.0 kVA
- 1PH - 230VAC/50Hz
- Fuses and disconnectors,
- Battery and MPPT display
- Air cooling
- IP21
- Integrates the following elements:
- A MultiPlus-II inverter/charger
- A SmartSolar MPPT-Tr solar charging regulator
- An GX device with 2x 16 characters display
- Display and Wi-Fi
Technical specifications
- Product type
Current Transformers
- Dim
(L x W x H) 604 x 323 x 253 mm
- Weight
38.6 kg
- Content
1 pc(s)
- Width
323 mm
- Height
253 mm
- Length
604 mm
- Connector
Pin contact
- Features
Built-in charge controller
- Signal output type
Sine wave
- Output voltage
230 V AC
4000 W
- Remote control
No
- Peak output power
9000 W
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3059058 Victron Energy PMP482507010 EasySolar ll 48/5000/70-50 MPPT 250/100 GX Current Transformers
User & Safety Instructions
User & Safety Instructions 3059058 Victron Energy PMP482507010 EasySolar ll 48/5000/70-50 MPPT 250/100 GX Current Transformers
Description

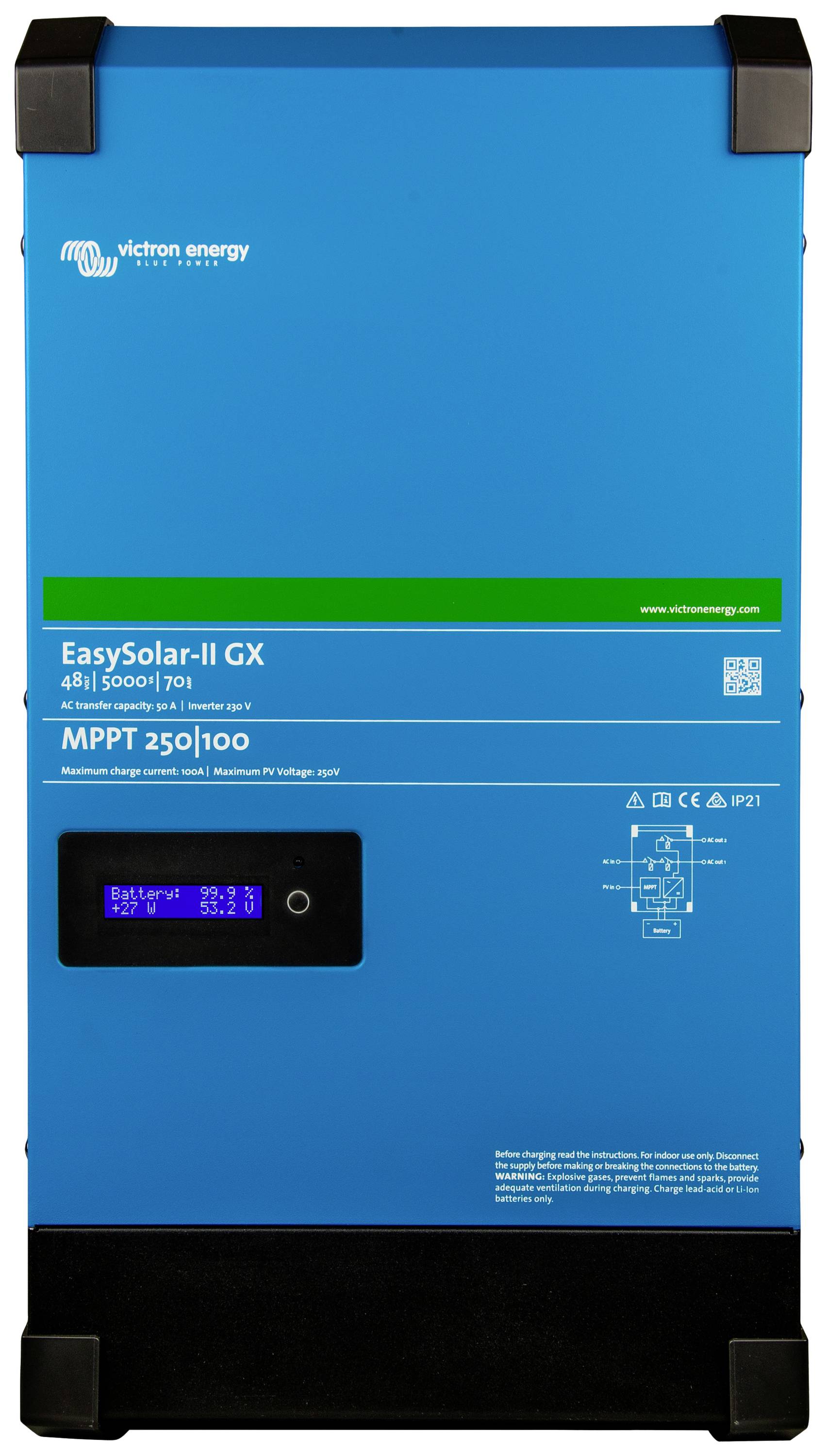

The EasySolar-II GX combines a MPPT solar charging regulator, an inverter/battery charger and a control center in a single housing. The product is easy to install with a minimum of wiring.
This text is machine translated.
This text is machine translated.
Features
- 48 VDC
- Maximum PV-Idle voltage 250 V
- PV 5.8 kW
- MPPT 250/100-tr
- 70 A module charging current
- 100 A inverter charging current
- AC 5.0 kVA
- 1PH - 230VAC/50Hz
- Fuses and disconnectors,
- Battery and MPPT display
- Air cooling
- IP21
- Integrates the following elements:
- A MultiPlus-II inverter/charger
- A SmartSolar MPPT-Tr solar charging regulator
- An GX device with 2x 16 characters display
- Display and Wi-Fi
Scope of delivery
- Inverter
