Victron Energy Victron BlueSolar MPPT Charge controller MPPT 12 V, 24 V 30 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

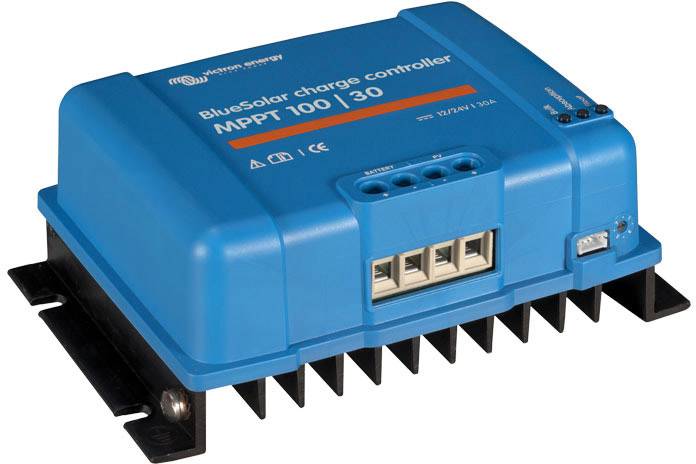

Solar charge controller MPPT solar MPPT 100/30 Victron Blue
- Ultra-fast Maximum Power Point Tracking (MPPT)
- Advanced Maximum Power Point Detection in case of partial shading
- High efficiency
Technical specifications
- Product type
Charge controller
- Nominal voltage
12 V
24 V
- Module power (max.)
880 Wp
- Temperature range
-30 °C to +60 °C
- Charging current (max.)
30 A
- Control type
MPPT
- Dim
(L x W x H) 18.6 x 186 x 130 mm
- Weight
1.3 kg
- Module load (max.)
30 A
- Width
186 mm
- Height
130 mm
- Length
18.6 mm
- Depth
70 mm
- Connector
Pin contact
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1924487 Victron Energy Victron BlueSolar MPPT Charge controller MPPT 12 V, 24 V 30 A
User & Safety Instructions
User & Safety Instructions 1924487 Victron Energy Victron BlueSolar MPPT Charge controller MPPT 12 V, 24 V 30 A
Description
Ultra-fast Maximum Power Point Tracking (MPPT)
In particular, with an overcast sky, if the light intensity is constantly changing, improves an extremely fast MPPT controller in the energy yield compared to PWM charge controllers by up to 30% and in comparison to slower MPPT controllers by up to 10%.
Advanced Maximum Power Point Detection in case of partial shading
In the event of a partial shading on the current voltage curve two or more points maximum performance (MPP) must be available. Conventional MPPTs tend to a local MPP. This, however, is probably not the best MPP.
The innovative algorithm of the blue solar device is always maximize the energy yield, to the optimum MPP.
High efficiency
No cooling fan. Maximum efficiency at over 98%. Full output power up to 40°C (104°F).
Flexible charging algorithms
Fully programmable charging algorithm (see also the software page on our website) as well as eight pre-programd algorithms that can be accessed via a rotary knob to select (Further details can be found in our manual).
Comprehensive electronic protection
Overheating protection and load reduction at high temperatures. Protection against short-circuit and PV PV polarity reversal. PV-Reverse current protection.
Internal temperature sensor
Balances constant trickle charging voltages and temperature.
This text is machine translated.
In particular, with an overcast sky, if the light intensity is constantly changing, improves an extremely fast MPPT controller in the energy yield compared to PWM charge controllers by up to 30% and in comparison to slower MPPT controllers by up to 10%.
Advanced Maximum Power Point Detection in case of partial shading
In the event of a partial shading on the current voltage curve two or more points maximum performance (MPP) must be available. Conventional MPPTs tend to a local MPP. This, however, is probably not the best MPP.
The innovative algorithm of the blue solar device is always maximize the energy yield, to the optimum MPP.
High efficiency
No cooling fan. Maximum efficiency at over 98%. Full output power up to 40°C (104°F).
Flexible charging algorithms
Fully programmable charging algorithm (see also the software page on our website) as well as eight pre-programd algorithms that can be accessed via a rotary knob to select (Further details can be found in our manual).
Comprehensive electronic protection
Overheating protection and load reduction at high temperatures. Protection against short-circuit and PV PV polarity reversal. PV-Reverse current protection.
Internal temperature sensor
Balances constant trickle charging voltages and temperature.
This text is machine translated.
Features
- Internal temperature sensor, options for displaying data in real time
