Victron Energy VRLA AGM 1 pc(s)

1/2
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable

Sales and shipping:
Conrad ElectronicTerms & Conditions

Highlights & Details

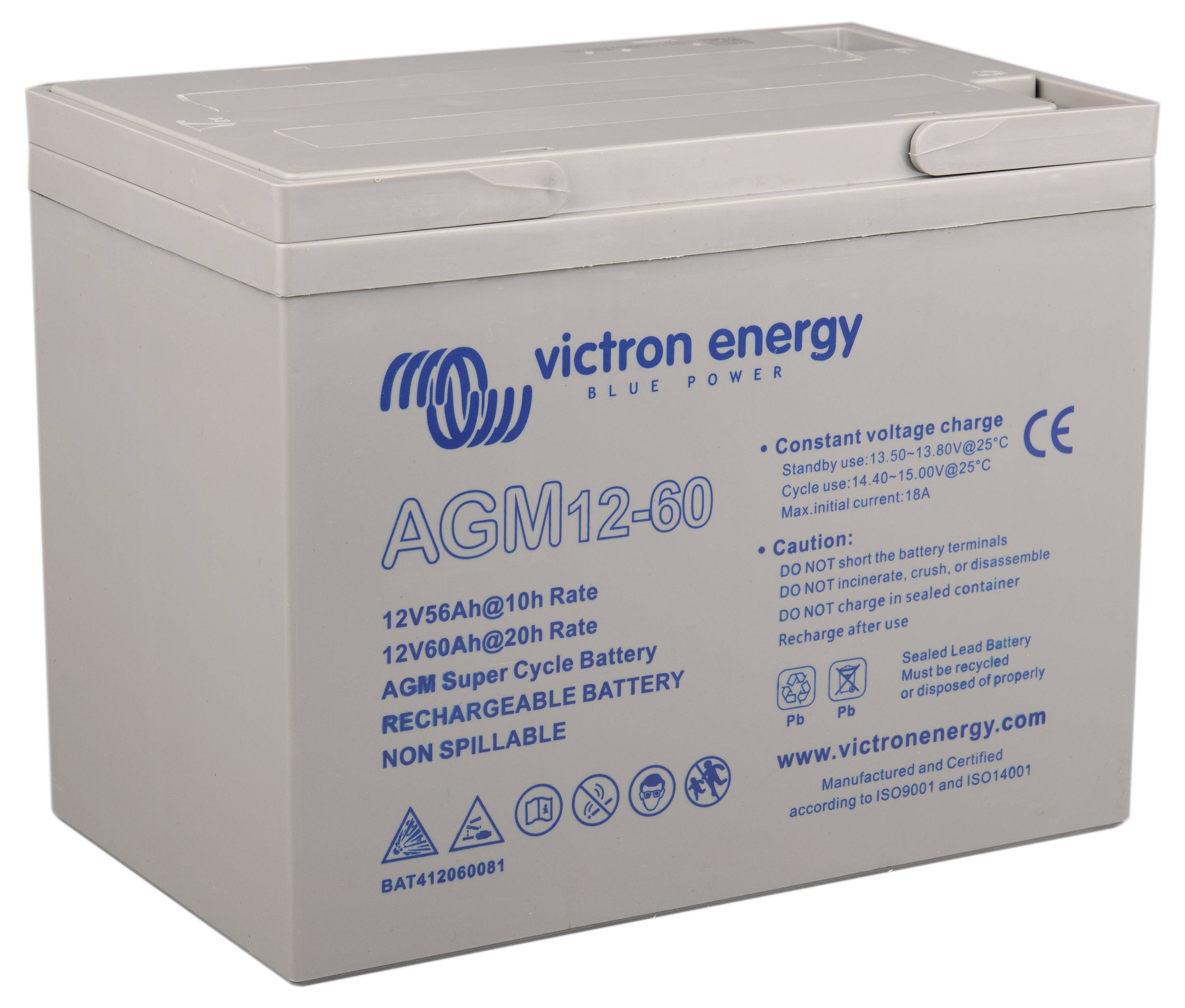

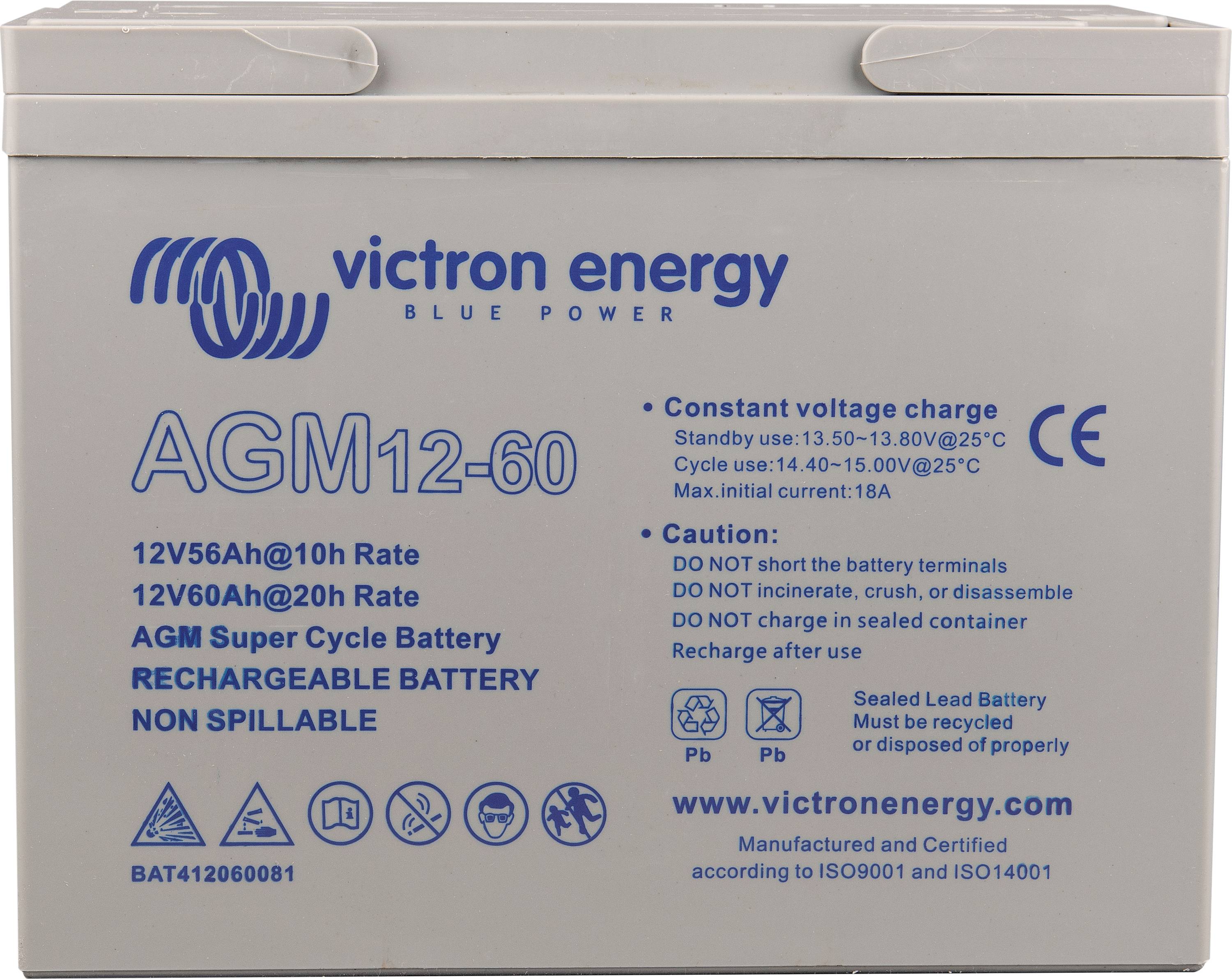

Battery Victron AGM Super Cycle 12V 60Ah (M6)

  • Applications with high-current discharge, for example solar power systems with an inverter in a solar battery
  • Perfect for use as a starter battery
  • Drive battery
  • Blast rudder, winds, etc.

Technical specifications

Product type

VRLA

Technology

AGM

Terminal voltage

10.8 V

Content

1 pc(s)

Type

BAT412060082

Rechargeable

Yes

Documents & Downloads

Datasheet

Datasheet 3454124 Victron Energy VRLA AGM 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3454124 Victron Energy VRLA AGM 1 pc(s)

Conformity certificate

Conformity certificate 3454124 Victron Energy VRLA AGM 1 pc(s)

Description


A truly innovative battery

The AGM Super Cycle batteries are the result of the latest developments in the field of battery electrochemistry. The paste on the positive plates does not become soft so quickly, even if the battery is discharged to 100% several times. In addition, the new additives in the electrolyte reduce the sulphation in case of deep discharge.

Extraordinary performance despite repeated deep discharge
Tests have shown that the Super Cycle battery is still powerful even after at least three hundred 100% deep discharge.
During the tests the batteries were discharged daily up to 10.8 V with I = 0.2 C₂₀. They were then left in the discharged state for two hours and then charged again with I = 0.2 C₂₀. Most batteries will be damaged if they are left in a discharged state 100 times for two hours, but not the Super Cycle battery. We recommend the use of the Super Cycle battery in cases where an occasional discharge to 100% (deep discharge) or a more frequent discharge to 60-80% is to be expected.

Smaller and lighter
Another advantage of the new chemical composition is that the batteries are smaller and weigh less than our previous deep cycle AGM batteries.

Low internal resistance
The internal resistance is also slightly lower than our usual deep-cycle AGM batteries.

This text is machine translated.
