Visaton BF 45 S - 4 Ohm 1.8 inch 4.5 cm Wideband speaker 4 W 4 Ω Black Aluminium diaphragm
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Visaton BF 45 S Broadband Loudspeaker 4 Ohm
- Load carrying capacity RMS/Max: 4/8 W
- 4.5 cm (1.8") broadband loudspeaker
- Aluminum diaphragm
Technical specifications
- Product type
Wideband speaker
- Features
Aluminium diaphragm
- Speaker size (cm)
4.5 cm
- Speaker size (inch)
1.8 inch
- RMS capacity
4 W
- Max. load
8 W
- Max. frequency
20000 Hz
- Min. frequency
90 Hz
- Impedance
4 Ω
- Sound pressure
79 dB

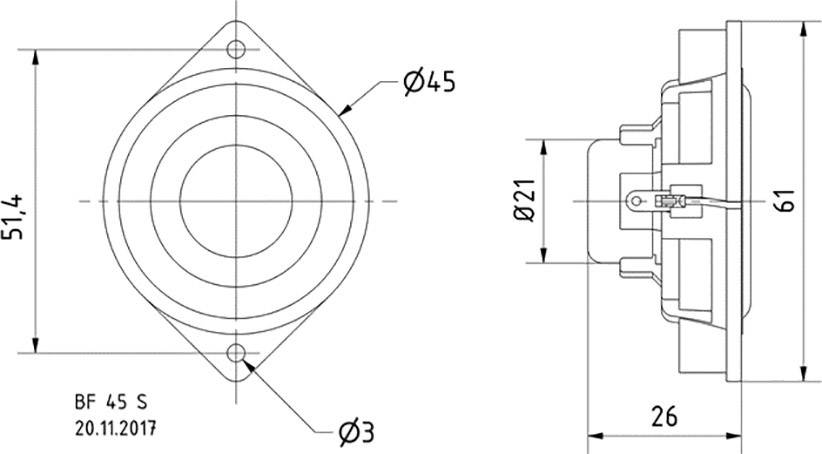

- Recess diameter
45 mm
- Recess depth
26 mm
- Weight
32 g
- Factory colour
Black
- Frequency range
90 Hz - 20000 Hz
Documents & Downloads
Datasheet
Datasheet 2141390 Visaton BF 45 S - 4 Ohm 1.8 inch 4.5 cm Wideband speaker 4 W 4 Ω Black Aluminium diaphragm
User & Safety Instructions
User & Safety Instructions 2141390 Visaton BF 45 S - 4 Ohm 1.8 inch 4.5 cm Wideband speaker 4 W 4 Ω Black Aluminium diaphragm
Description

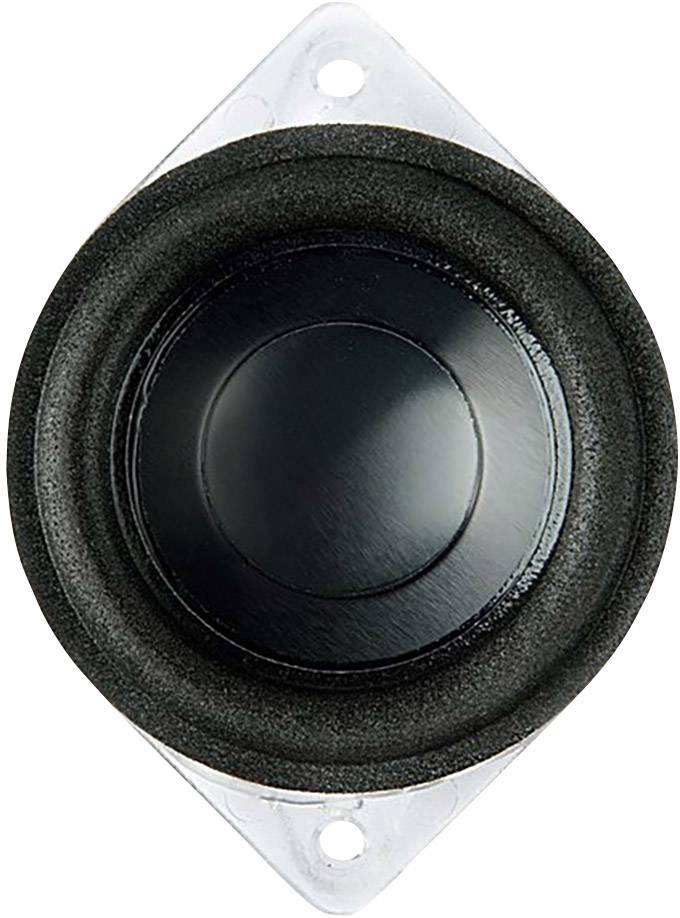

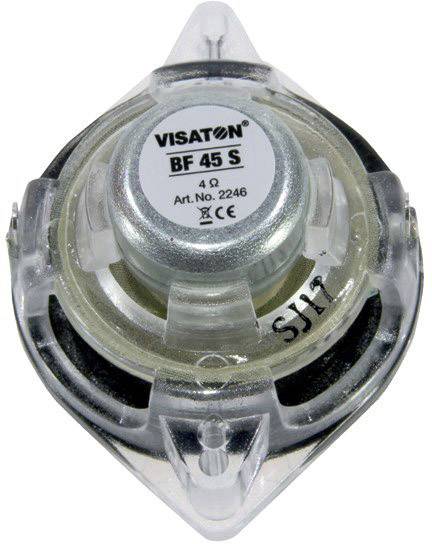

4.5 cm (1.8") broadband speaker with black aluminum membrane and transparent plastic basket with two mounting holes. Balanced frequency response and very good bass playback. Suitable for applications at the same time, small dimensions and good music and speech playback.
This text is machine translated.
This text is machine translated.
Features
- Nominal load 4W
- Music capacity 8W
- Transmission range 90-2 0000 Hz.
