Name: Vision Akkus 6FM200DX VIS6FM200DX VRLA 12 V 200 Ah AGM (W x H x D) 522 x 240 x 238 mm M8 connector Maintenance-free, Hig
Brand: Vision Akkus
SKU: 2250381

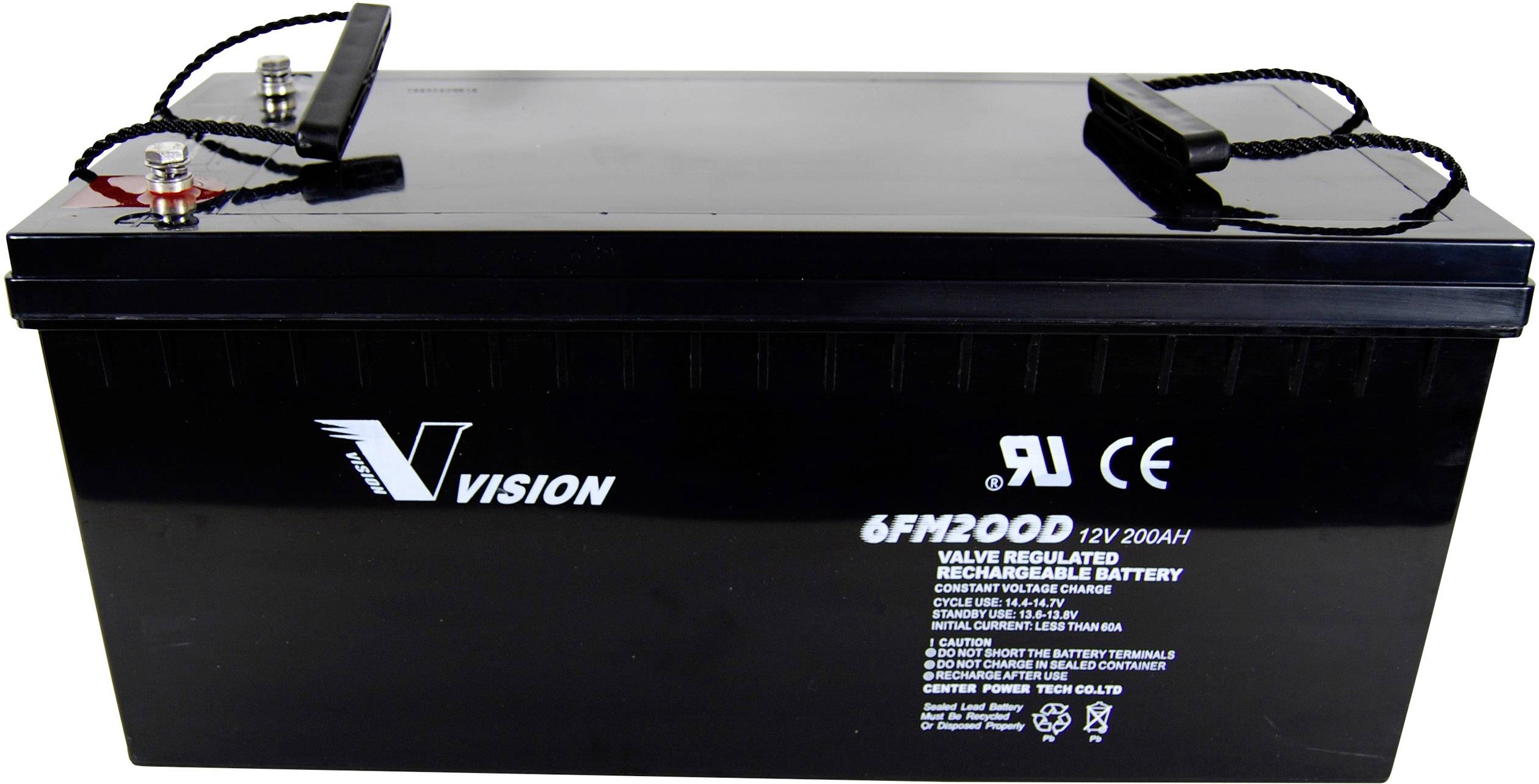

Black 12V 200Ah battery with 'Vision' printed on it, technical specifications and testing seal on the front.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Fixed cycles lead battery

Maintenance-free and leak-proof
Low self-discharge
Low internal resistance
10 years time

Technical specifications

Temperature range -20 to +60 ºC

Dim: (W x H x D) 522 x 240 x 238 mm

Product type: VRLA

Technology: AGM

Voltage: 12 V

Capacity (mAh, Ah): 200 Ah

Height: 240 mm

Weight: 65 kg

Content: 1 pc(s)

Type: 6FM200DX

Rechargeable: Yes

Connector: M8 connector

Depth: 238 mm

Width: 522 mm

Features: Maintenance-free
High number of charge cycles

VDS certification: No

Documents & Downloads

Datasheet

Datasheet 2250381 Vision Akkus 6FM200DX VIS6FM200DX VRLA 12 V 200 Ah AGM (W x H x D) 522 x 240 x 238 mm M8 connector Maintenance-free, Hig

Security datasheet

Security datasheet 2250381 Vision Akkus 6FM200DX VIS6FM200DX VRLA 12 V 200 Ah AGM (W x H x D) 522 x 240 x 238 mm M8 connector Maintenance-free, Hig

Description

Vision FM series in AGM technology (Absorbent Glass Mat). With excessive pressure build-up the special valve controls the pressure. The battery is still completely sealed, and therefore maintenance-free, leak-proof and can be used in any position. Typical applications include UPS. Telecommunications systems, cable TV, wheelchairs, Military equipment, Goll Caddy, medical devices, etc. The Deep-cycle battery is designed for a service life of 10 years. The housing is made of flame retardant ABS plastic.
