VOC meter PCE Instruments PCE-AQD 6 CO2, Formaldehyde, Particulate matter, VOC, CO, Benzole, Temperature Datalogger func
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
PCE Instruments 18-in-1 Air Quality Detector PCE-AQD 6 |CO2 400 … 5000 ppm |Humidity relative to 0 … 99 % |-10 … +50 °C.
- Comprehensive 18-in-1 measurement (climate, gases & fine dust)
- Detailed pollutant and particle recording
- 24 hours parameter curve
- Colour-coded traffic light system from green to red
- Integrated rechargeable battery for flexible mobile operation
- USB-C port for easy data export
Technical specifications
- CO2
- Measuring range 400 – 5000 ppm
- Resolution 1 ppm
- Accuracy +/-50 ppm or +/-5 % of MW.
- Formaldehyde
- Measuring range 0 ... 1.99 mg/m³
- Resolution: 0.001 mg/m³
- Accuracy +/-0.05 mg/m³
- Cross-cut
- Measurement channel sizes 0.3, 0.5, 1.0, 2.5, 5.0, 10.0
- Measuring range 0 ... 999 µg/m³
- Resolution 1 µg/m³
- Accuracy +/-10 µg/m³
- TVOC
- Measuring range 0 ... 9.99 mg/m³
- Resolution: 0.001 mg/m³
- Accuracy +/-0.05 mg/m³
- CO
- Measuring range 0 – 999 ppm
- Resolution 1 ppm
- Accuracy +/-10 ppm
- Benzene
- Measuring range 0 ... 1.999 mg/m³
- Resolution: 0.001 mg/m³
- Accuracy +/-0.05 mg/m³
- Humidity relative
- Measurement range 0 - 99 %
- Resolution 1%.
- Accuracy +/-5 % of MW.
- Temperature
- Measurement range -10 - +50 °C
- Resolution 1°C
- Accuracy +/-2°C
- General Technical Specifications
- Display type TFT color display
- Display size 2.8 inches
- Storage medium Internal memory
- Storage capacity 2 GB
- Memory capacity (additional information) Recording of data every 5 seconds, one storage file per month, data storage period 1 year
- Data transfer USB-C
- Sensor Additional information Service life of CO sensor: 3-4 years
- Plastic case
- Optical alarm, acoustic alarm
- Menu language English (US), English (GB)
- Protection class (device) IP20
- Voltage supply: 5V DC / 1A
- Battery/battery 1 x 3.7 V internal , lithium-ion battery
- Capacity: 2000 mAh
- Power 7.4 Wh
- Operating conditions -10 ... 50 °C , 10 ... 90 % r. F.
- Storage conditions -20 ... 55 °C , 10 ... 90 % r.h.
- Dimensions (L x W x H) 90 x 70 x 35 mm.
- Weight 134 g
- Product type
VOC meter
- Reading range
400 - 5000 ppm
- Unit of measurement
CO2
Formaldehyde
Particulate matter
VOC
CO
Benzole
Temperature
- Resolution
1 %
- Features
Datalogger function
- Accuracy
5 %
- Weight
134 g
- Reading range (max.)
5000 ppm
- Reading range (min.)
400 ppm
- Width
70 mm
- Height
35 mm
- Length
90 mm
IP20
Manufacturer's standards (no certificate)
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3841679 VOC meter PCE Instruments PCE-AQD 6 CO2, Formaldehyde, Particulate matter, VOC, CO, Benzole, Temperature Datalogger func
Datasheet 3841679 VOC meter PCE Instruments PCE-AQD 6 CO2, Formaldehyde, Particulate matter, VOC, CO, Benzole, Temperature Datalogger func
User & Safety Instructions
User & Safety Instructions 3841679 VOC meter PCE Instruments PCE-AQD 6 CO2, Formaldehyde, Particulate matter, VOC, CO, Benzole, Temperature Datalogger func
Description
This versatile 18-in-1 air quality detector enables a continuous and high-precision monitoring of the indoor climate as well as potential pollution sensors in the indoors. In addition to the classical parameters such as temperature and relative humidity, the device also records the general air quality index (AQI) and critical gaseous loads such as CO2, CO, TVOC, HCHO and C6H6. In addition, the modern 18-in-1 air quality detector offers differentiated particle measurement, which detailed breakdown of fine dust in six different sizes from PM 0.3 to PM 10.

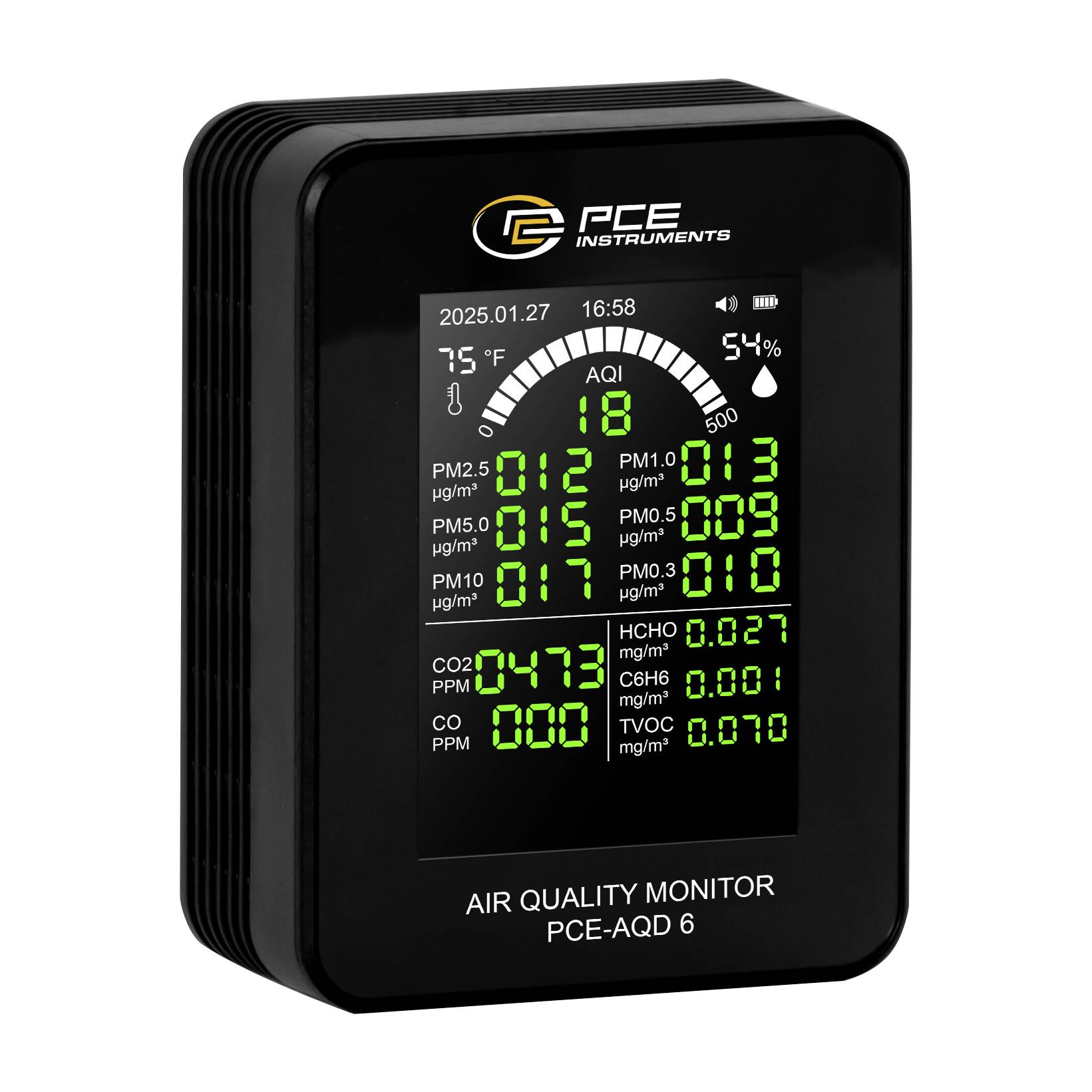

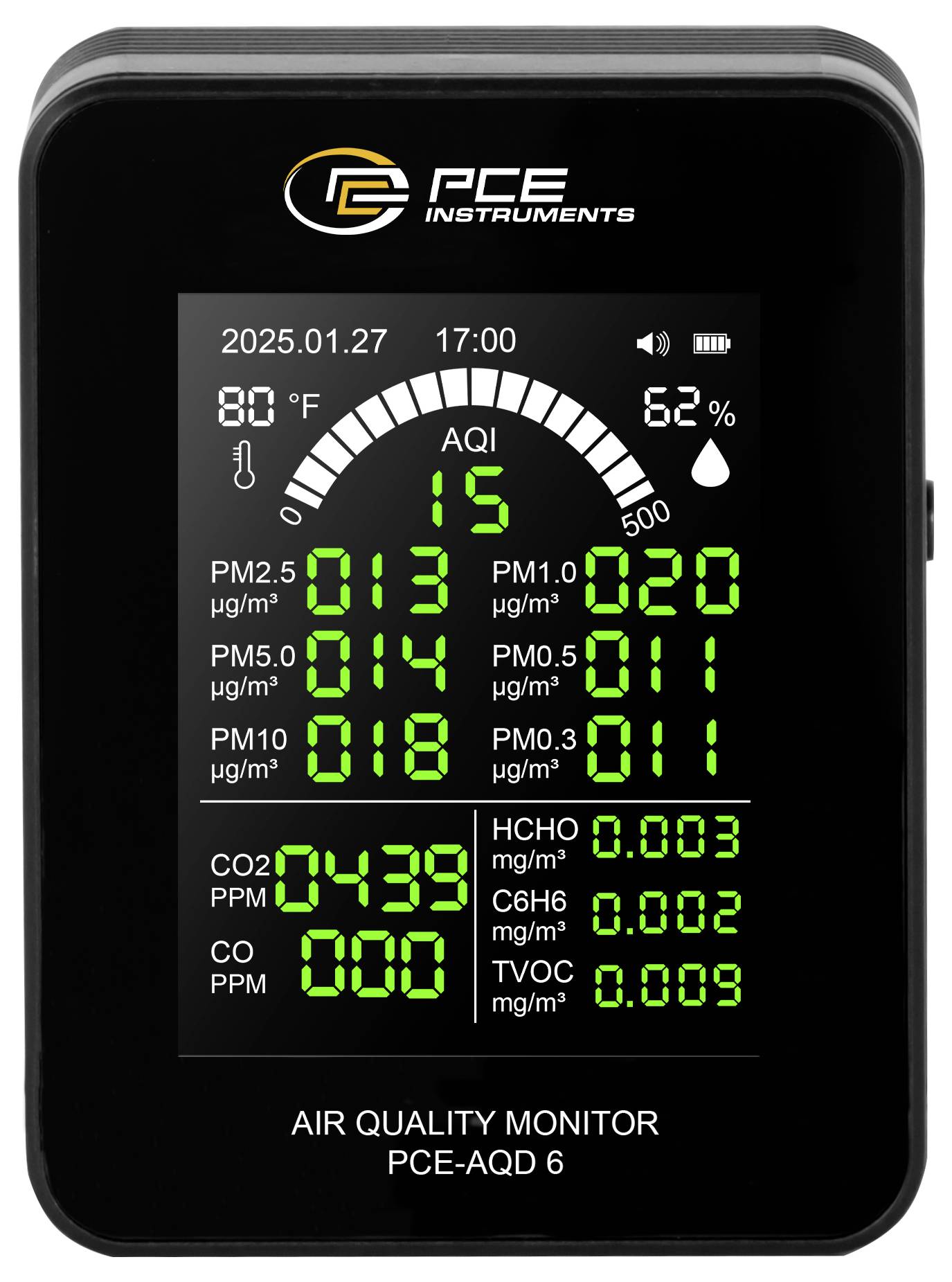

A clear, color-coded display provides quick and intuitive orientation in the daily routine. The respective measured values are automatically classified based on the current load: From green for an excellent air quality via yellow and orange to red, WAS signals an acute danger. This optical alarm system allows to react immediately to bad air conditions and initiate targeted ventilation measures to use the 18-in-1 air quality detector as an optimum safety monitor.

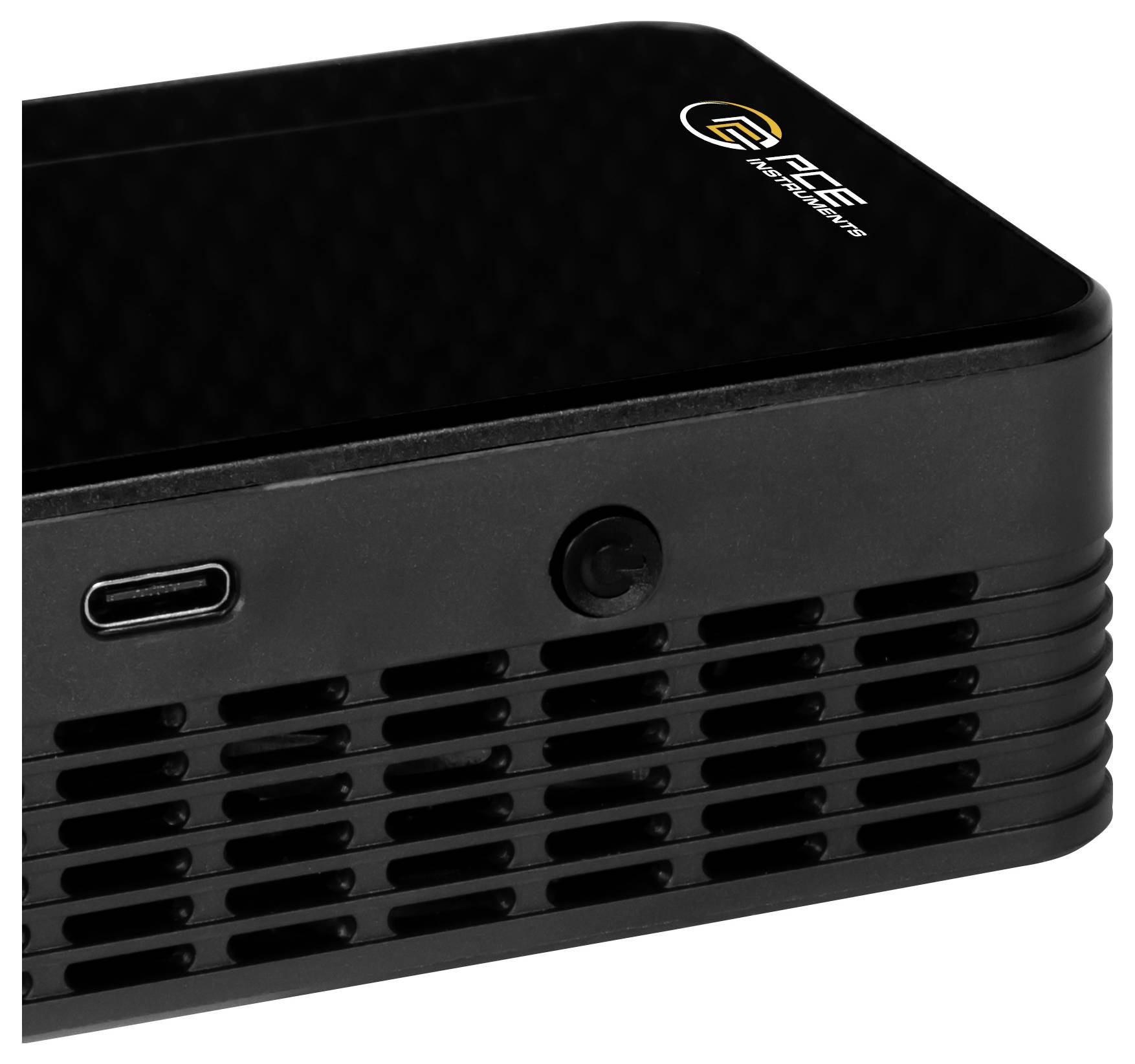

Thanks to the integrated rechargeable battery, the compact 18-in-1 air quality detector can be used flexibly and is not connected to a permanent power source. WAS makes spontaneous control measurements at changing locations easy. For further documentation and long-term analysis, the collected measurement data can be easily transferred to a computer in .txt format via the modern USB-C interface. The values can be exported and evaluated there in order to prove the effectiveness of air purification concepts.
This text is machine translated.
A clear, color-coded display provides quick and intuitive orientation in the daily routine. The respective measured values are automatically classified based on the current load: From green for an excellent air quality via yellow and orange to red, WAS signals an acute danger. This optical alarm system allows to react immediately to bad air conditions and initiate targeted ventilation measures to use the 18-in-1 air quality detector as an optimum safety monitor.
Thanks to the integrated rechargeable battery, the compact 18-in-1 air quality detector can be used flexibly and is not connected to a permanent power source. WAS makes spontaneous control measurements at changing locations easy. For further documentation and long-term analysis, the collected measurement data can be easily transferred to a computer in .txt format via the modern USB-C interface. The values can be exported and evaluated there in order to prove the effectiveness of air purification concepts.
This text is machine translated.
Scope of delivery

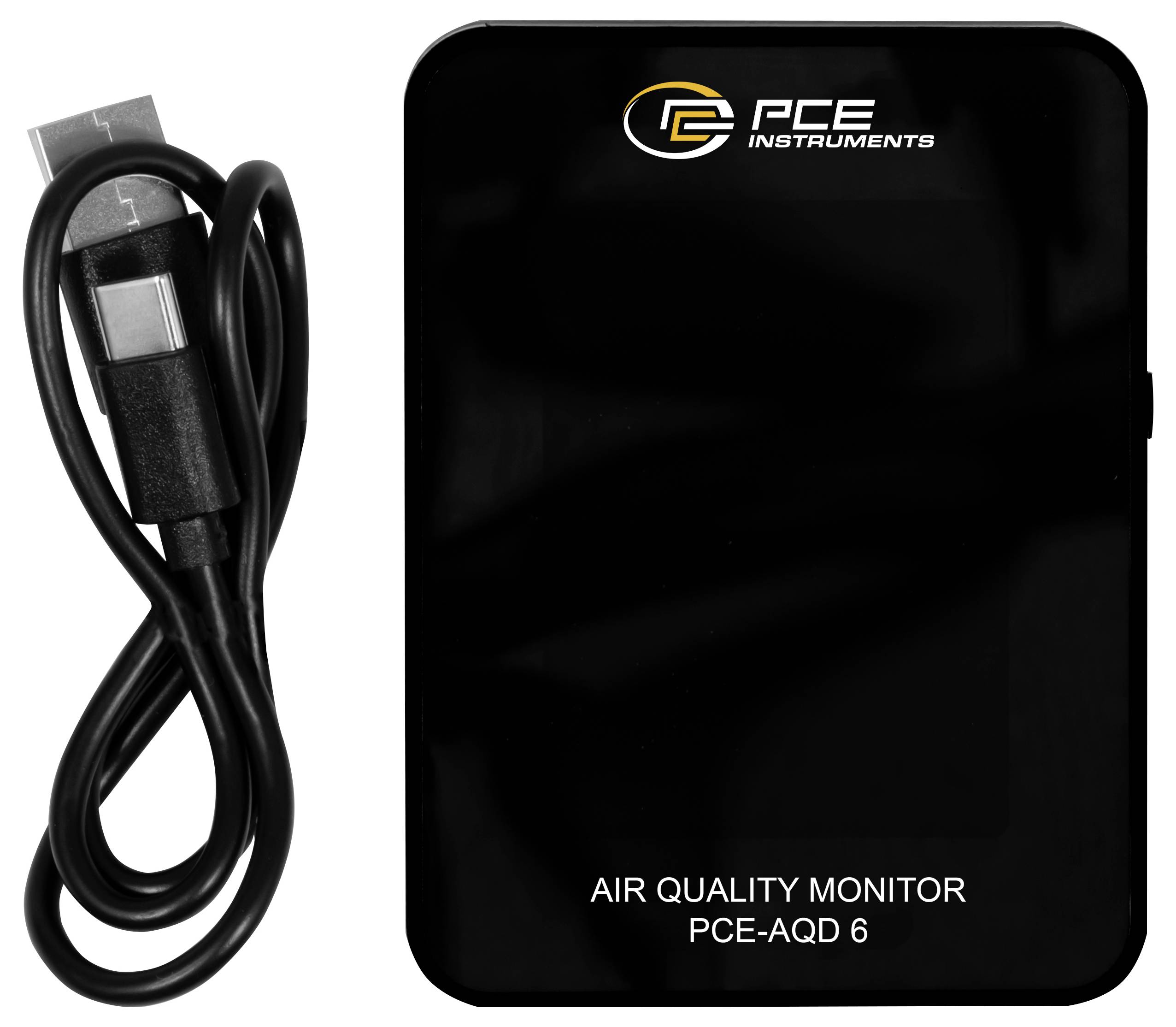

- 1 x 18-in-1 Air quality-Detector PCE-AQD 6
- 1 x USB-C to USB-A cable
