Name: Vogel's PFW 6880 Projection screen wall mount 94,0 cm (37") - 165,1 cm (65") Rigid
Brand: Vogel's
SKU: 1493867

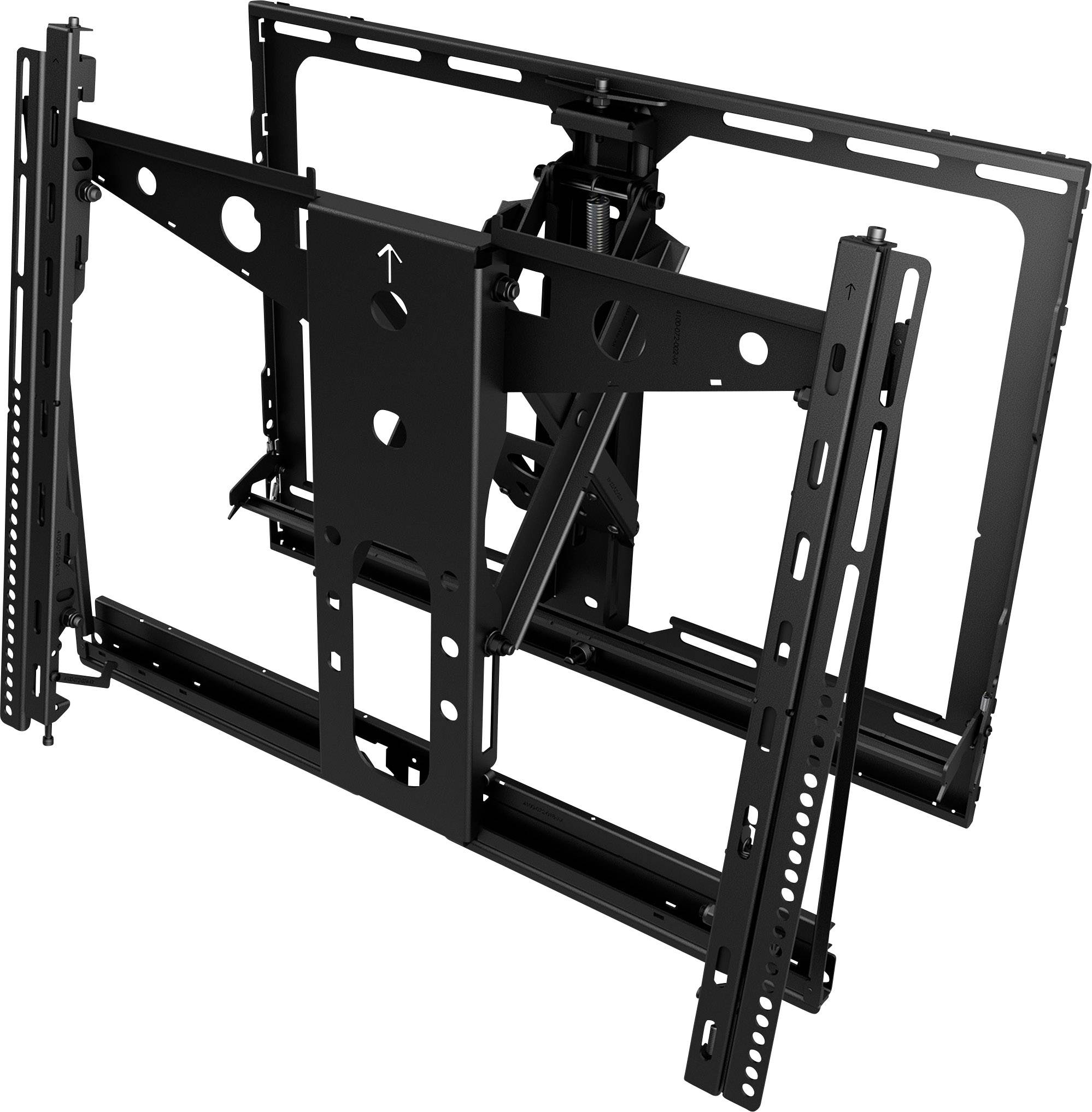

Wall mount for television with tiltable and swivelling design, robust metal frame and adjustable arms for flexible positioning.

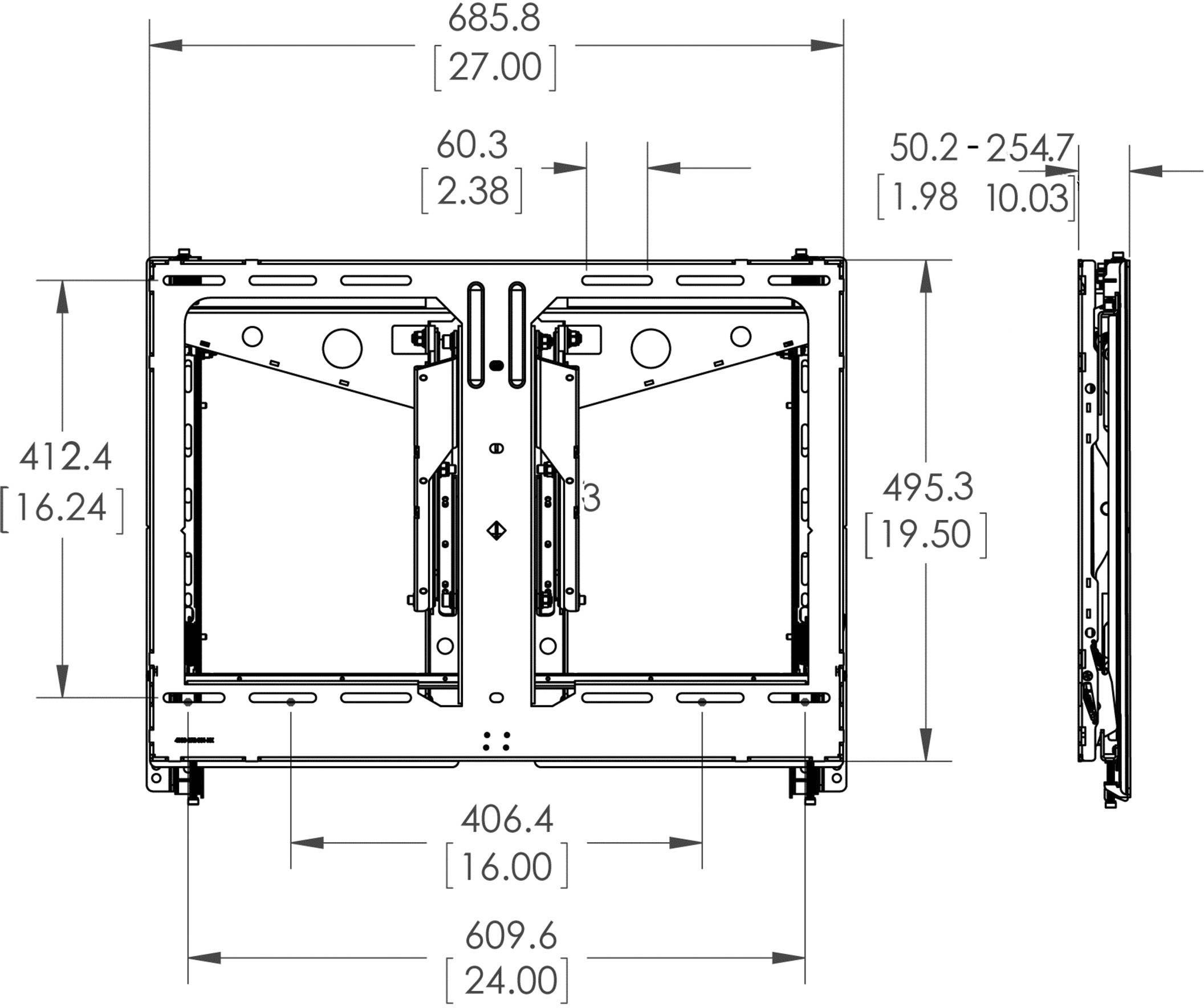

Metal mounting bracket with dimensions: width 685.8 mm, height 495.3 mm and depth 60.3 mm. Six mounting screw holes visible.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

VCM Projection screen wall mountPFW 6880

Holder type: Rigid
Supports VESA standards up to
Suitable for displays sized (range): 94,0 cm (37") - 165,1 cm (65")Load capacity (max.) 45.5 kg

Technical specifications

Product type: Projection screen wall mount

Suitable for: 94,0 cm (37")
96,5 cm (38")
99,1 cm (39")
101,6 cm (40")
104,1 cm (41")
106,7 cm (42")
109,2 cm (43")
111,8 cm (44")
114,3 cm (45")
116,8 cm (46")
119,4 cm (47")
121,9 cm (48")
124,5 cm (49")
127,0 cm (50")
129,5 cm (51")
132,1 cm (52")
134,6 cm (53")
137,2 cm (54")
139,7 cm (55")
142,2 cm (56")
144,8 cm (57")
147,3 cm (58")
149,9 cm (59")
152,4 cm (60")
154,9 cm (61")
157,5 cm (62")
160,0 cm (63")
162,6 cm (64")
165,1 cm (65")
Show more

Holder type: Rigid

Tilt range (top): 0°

Tilt range (bottom): 0°

Swivel range (left): 0°

Add-on displays: 1 Display(s)

Swivel range (right): 0°

Rotation: 0°

: 200 x 200 mm
200 x 300 mm
200 x 400 mm
300 x 100 mm
300 x 200 mm
300 x 300 mm
300 x 400 mm
400 x 200 mm
400 x 300 mm
400 x 400 mm
500 x 350 mm
500 x 400 mm
600 x 200 mm
600 x 300 mm
600 x 400 mm
Show more

: No

Distance to wall (min.): 5 cm

Distance to wall (max.): 25.5 cm

Max. load capacity: 45.5 kg

Factory colour: Black

Width: 685.8 mm

Height: 412.4 mm

Depth: 50.2 mm

Weight: 17.11 kg

Dim: (W x H x D) 685.8 x 412.4 x 50.2 mm

Screen orientation: Landscape

Suitable for: 94,0 cm (37") - 165,1 cm (65")

Permissible load (per monitor): 45.5 kg

Projector screen type: Pop-up (retractable)

Shelf: No

Wireless charging: No

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1493867 Vogel's PFW 6880 Projection screen wall mount 94,0 cm (37") - 165,1 cm (65") Rigid

User & Safety Instructions

User & Safety Instructions 1493867 Vogel's PFW 6880 Projection screen wall mount 94,0 cm (37") - 165,1 cm (65") Rigid

Description

The Videowand-Popout PFW 6880 is a flat-module with a distance between the screen and wall of only 50 mm. It has a spring loaded push button for opening release by lightly pressing on the screen.

The pfw 6880 is suitable for screens with a weight of up to 45.5 kg with a mounting pattern of 200 x 200 to 600 x 400 mm.

This text is machine translated.
