Buy VOLTCRAFT 1000T 1m rigid (SF) Endoscope probe Probe diameter 5.5 mm 1 m LED lit, Waterproof

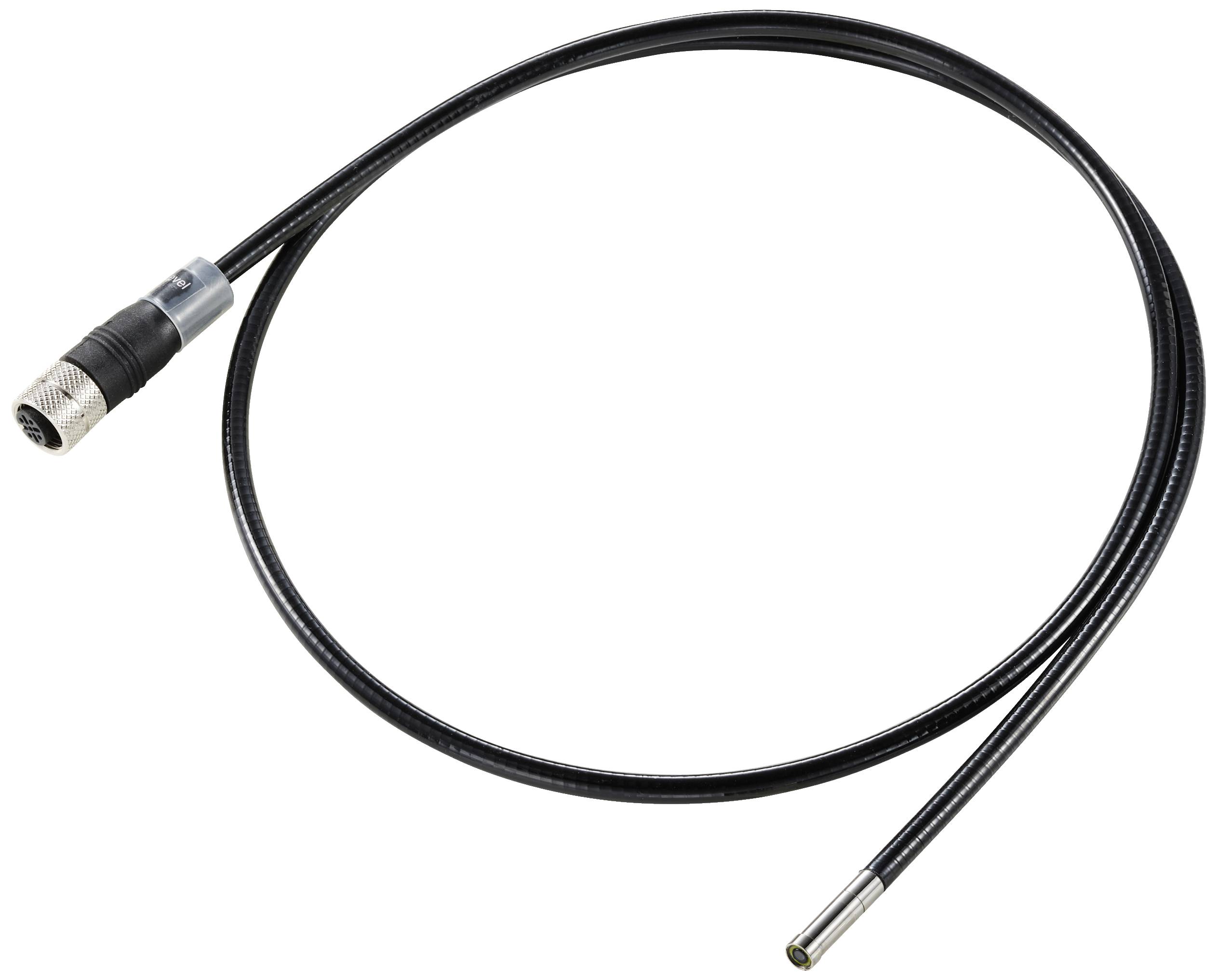

A black cable with a metal plug and a cylindrical component at the end, possibly a coaxial cable.

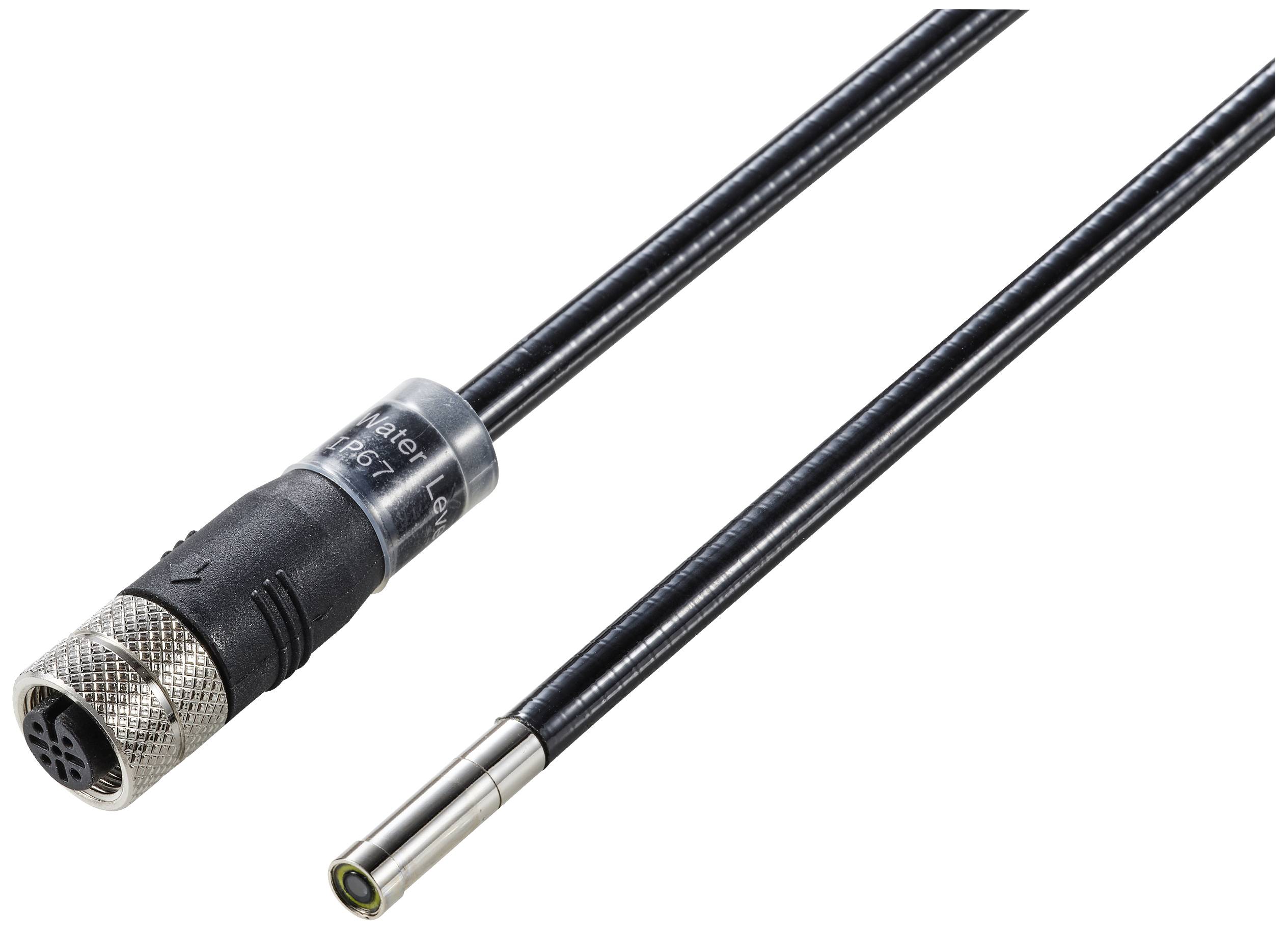

'A sensor with two cables: on the left a circular connector, on the right a cylindrical sensor.'

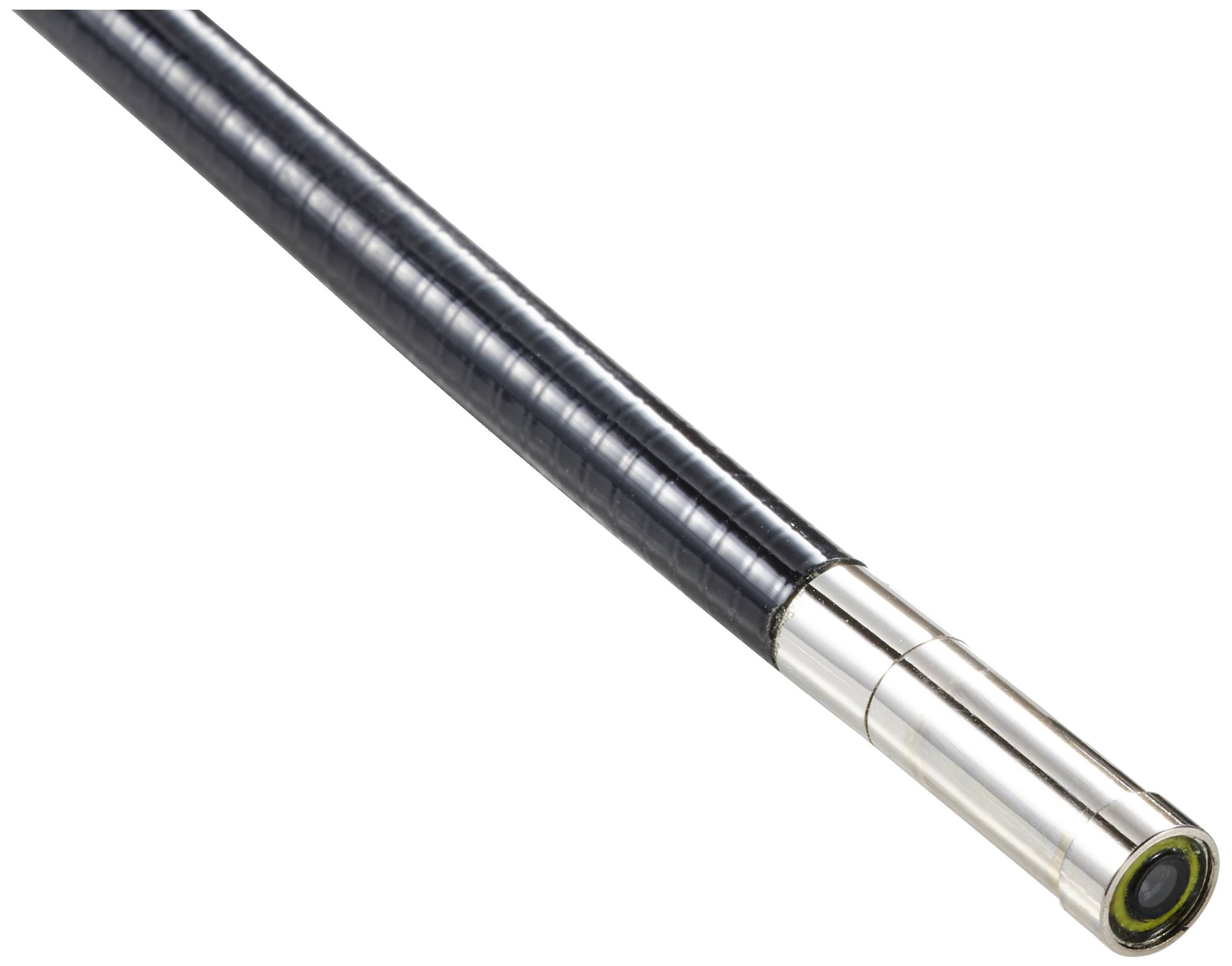

A black, elongated metal cylinder with a silver, gleaming end.

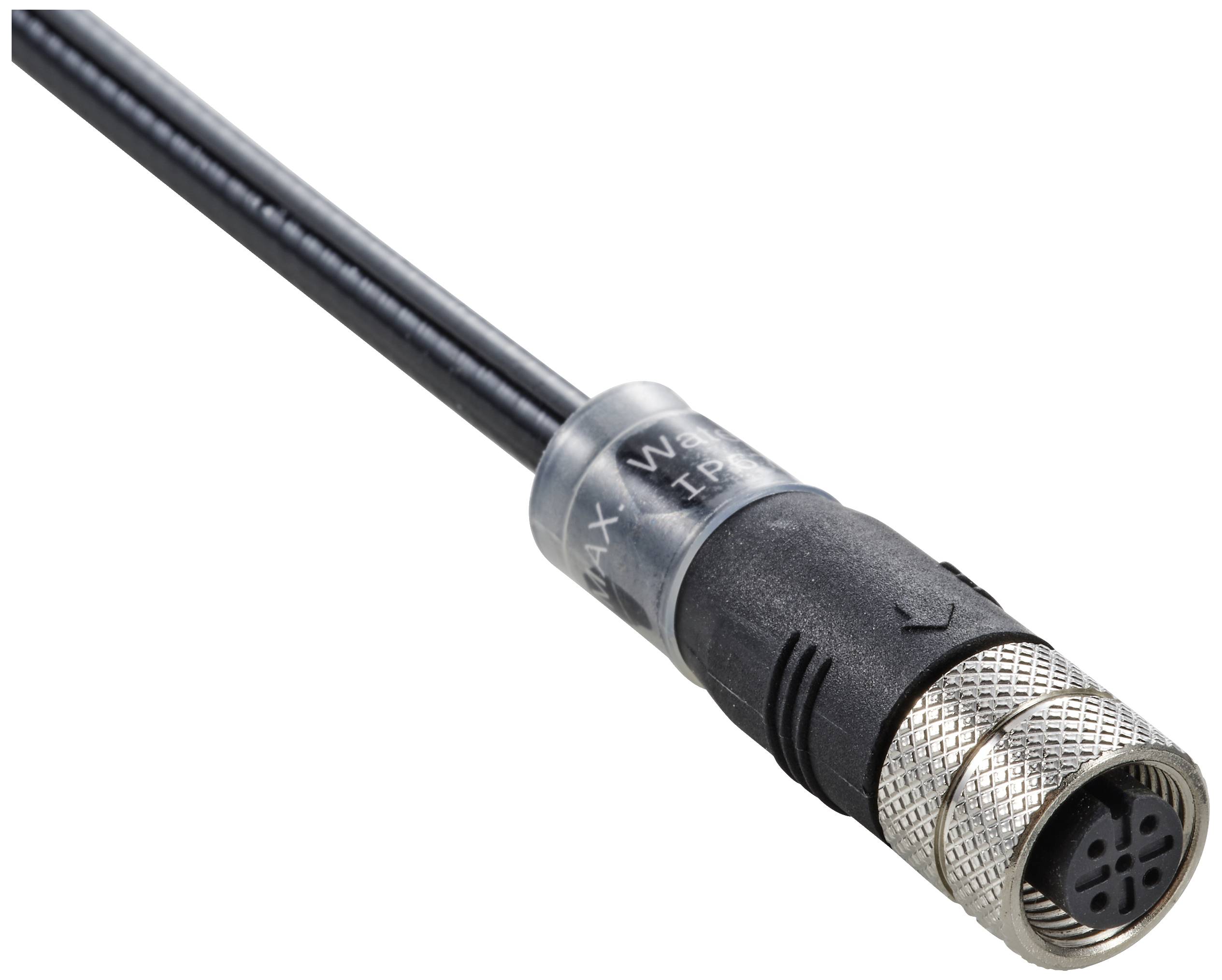

Black cable with a metal plug and a labelled ring. The plug has multiple pins and is suitable for electrical connections.<br><br>Note: The translation is already in British English, so no specific modifications were needed.

1/4

Our service for you

Datasheet (PDF)

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 256.30 / piece)

€

Only 3 Piece(s) available

Report legal concerns

Highlights & Details

1 m/5.5 mm VGA Semi-rigid SF

Compatible with VOLTCRAFT ® endoscope BS1000T
Probe camera diameter: 5.5 mm
Probe cable diameter: 5.8 mm
Flexible and waterproof with a length of 1 m
Focus: 2.5 - 6 cm
IP67

Technical specifications

Camera cable: Semi-rigid

Probe length: 1 m

Light source: LED-ring (20 pieces SMT-LEDs)

Min. focusing distance: 25 mm

Dim: (Ø) 5.5 mm

Weight: 135 g

(Ø): 5.5 mm

Width: 14.7 mm

Focus: 2.5 -6 mm

: IP67 (probe)

Camera resolution: 648 x 480 Pixel

Suitable for: Voltcraft

Suitable for: VOLTCRAFT BS-1000T

Endoscope features: LED lit
Waterproof

Probe diameter: 5.5 mm

Plastic free packaging: Plastic-free packaging

Product type: Endoscope probe

Documents & Downloads

Datasheet

Datasheet 2793315 VOLTCRAFT 1000T 1m rigid (SF) Endoscope probe Probe diameter 5.5 mm 1 m LED lit, Waterproof

User & Safety Instructions

User & Safety Instructions 2793315 VOLTCRAFT 1000T 1m rigid (SF) Endoscope probe Probe diameter 5.5 mm 1 m LED lit, Waterproof

Warranty Terms

Warranty Terms 2793315 VOLTCRAFT 1000T 1m rigid (SF) Endoscope probe Probe diameter 5.5 mm 1 m LED lit, Waterproof

Description

Replacement or additional endoscope probe is compatible with the BS1000T endoscope. The semi-rigid probe can be bent to the required position and keeps this shape. The probe camera has a diameter of 5.5 mm and is 1 m long.

This text is machine translated.
