VOLTCRAFT CT-3 Cable tester Suitable for HDMI cable type A,
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 42.01 / piece)
€ 42.85
€
Highlights & Details
HDMI cable tester CT-3
- For testing of already installed HDMI cables
- Signal LEDs on both modules
- Suitable for HDMI cable type A,
- For cables up to 100 m
Technical specifications
- Max. cable length
100 m
- Optical display
Yes
- Dim

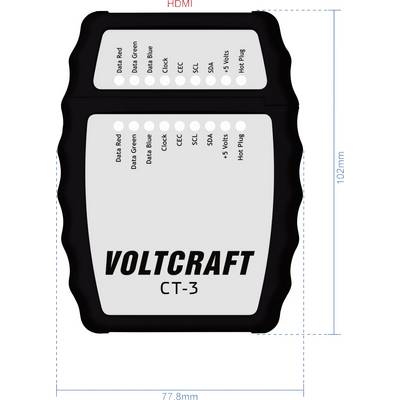

(W x H x D) 78 x 102 x 33 mm
- Weight
105 g
- Depth
33 mm
- Height
102 mm
- Width
78 mm
- Type
CT-3
- Suitable for
HDMI cable type A,
- Power supply (details)
9 V block battery
- Product type
Cable tester
Documents & Downloads
Datasheet
Datasheet 121945 VOLTCRAFT CT-3 Cable tester Suitable for HDMI cable type A,
User & Safety Instructions
User & Safety Instructions 121945 VOLTCRAFT CT-3 Cable tester Suitable for HDMI cable type A,
Information
Information 121945 VOLTCRAFT CT-3 Cable tester Suitable for HDMI cable type A,
Conformity certificate
Conformity certificate 121945 VOLTCRAFT CT-3 Cable tester Suitable for HDMI cable type A,
Warranty Terms
Warranty Terms 121945 VOLTCRAFT CT-3 Cable tester Suitable for HDMI cable type A,
Description
Practical cable tester for checking all inner conductors of an HDMI cable. The functionality of the cable under test is indicated by LEDs. The cable tester can be divided into two separate modules, so that even cables already laid can be checked.
Scope of delivery
- CT-3 Cable tester
- 9 V Block battery
- Bag
- User manual.
