VOLTCRAFT EMZ-1000 Earth ground meter 0.01 - 1200 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 427.73 / piece)
€
Highlights & Details
Voltcraft EMZ-1000 Earth ground meter
- CAT III 300 V, CAT IV 150 V
- Ω+ A Synchronous display
- Jaw size: 55 x 32 mm
- Interference test
- Alarm function
- Overflow display
- Data storage/Data access/Data deletion function
- Data hold function
Technical specifications
- Reading range - resistance
0 ~ 1200 Ω
- Data storage
300
- Power supply (details)
4 x AA 1.5 V
- Dim
(L x W x H) 285 x 85 x 58 mm
- Weight
1.18 kg
- Content
1 pc(s)
- Height
58 mm
- Length
285 mm
- Width
85 mm
- Insulation resistance range
0.01 - 1200 Ω
Manufacturer's standards (no certificate)
- Display
Digital
- Measuring type
Clamp
- Type
EMZ-1000
- Insulation resistance (max.)
1200 Ω
- Insulation resistance (min.)
0.01 Ω
- Weight, information
incl. batteries
- Plastic free packaging
Plastic-free packaging
- Product type
Earth ground meter
Documents & Downloads
Datasheet
Datasheet 2353913 VOLTCRAFT EMZ-1000 Earth ground meter 0.01 - 1200 Ω
User & Safety Instructions
User & Safety Instructions 2353913 VOLTCRAFT EMZ-1000 Earth ground meter 0.01 - 1200 Ω
Conformity certificate
Conformity certificate 2353913 VOLTCRAFT EMZ-1000 Earth ground meter 0.01 - 1200 Ω
Warranty Terms
Warranty Terms 2353913 VOLTCRAFT EMZ-1000 Earth ground meter 0.01 - 1200 Ω
Description
The test device or loop resistance measuring device is used for contact-free testing of the earthing resistance in electrical systems. The tester with self-luminous inverse LC display, simultaneously shows resistance (0.010 - 1200 ohms) and alternating current (0.00 mA - 20.0 A) and has a measurement data memory, adjustable alarm function when the limit is exceeded, an automatic switch-off and a data hold function. The robust device has a large measurement range with high resolution, an exact, reliable and stable power and a high noise immunity.The tester is microprocessor-controlled and allows accurate earth resistance measurement. The integrated filter technology effectively minimizes measuring interferences.The design of the product complies with protection class 2 and is double or reinforced insulated.
This text is machine translated.
This text is machine translated.
Features
- LCD size: 46 x 29 mm
- Display mode: 4-digit digital LCD display
- Measuring frequency: 2 times/sec
- Measuring method: Mutual induction
- Over-range display: "OL"
- Data storage: 300 groups
- Auto power off function
- Low battery indicator
Scope of delivery
- Tester
- 4x AA batteries (LR06)
- Calibration loop
- Carry case
- User manual
Frequently Bought Together
(*All information is plus legal VAT) This article
VOLTCRAFT EMZ-1000 Earth ground meter 0.01 - 1200 Ω
Conrad Electronic
€ 427.73*
VOLTCRAFT Industrial LR6 AA battery Alkali-manganese 3000 mAh 1.5 V 24 pc(s)
Conrad Electronic
€ 9.24*
VOLTCRAFT VC-371 Clamp meter Calibrated to (ISO standards) Digital CAT III 600 V Display (counts): 4000
Conrad Electronic
€ 109.24*

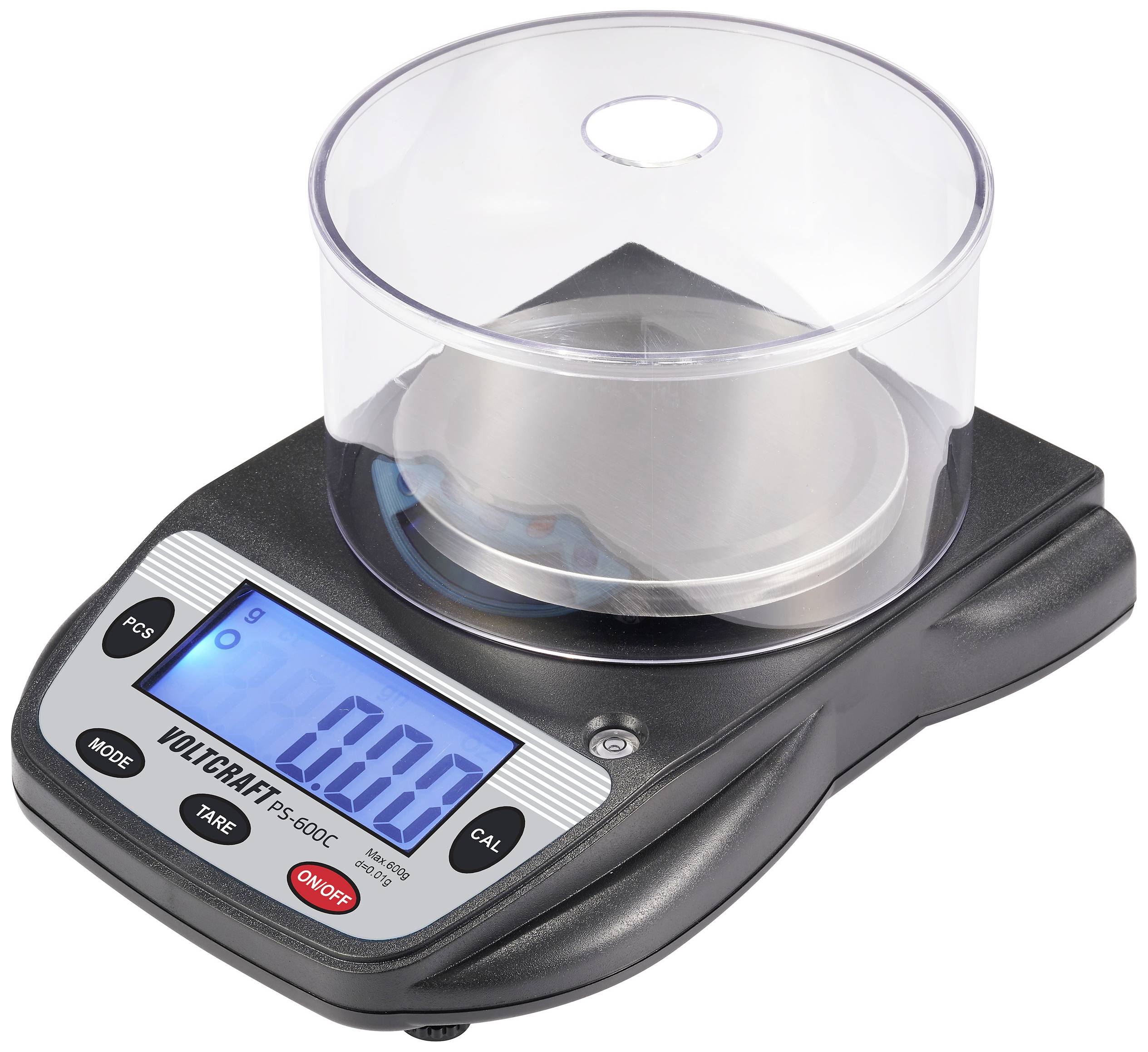

VOLTCRAFT PS-600C Precision scales Weight range 600 g Readability 0.01 g battery-powered Black
