Buy VOLTCRAFT Endoscope probe Probe diameter 28 mm 25 m Waterproof, LED lit

A black camera probe with cable reel, red end caps and camera attachment, suitable for inspections in pipes and confined spaces.

A medical device with a white casing, mounted on a black stand, displays a USB connection.

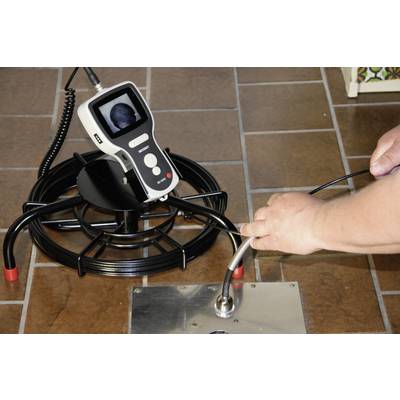

A person is using a pipe inspection endoscope to check a drain. The screen displays an image of the inside of the pipe.

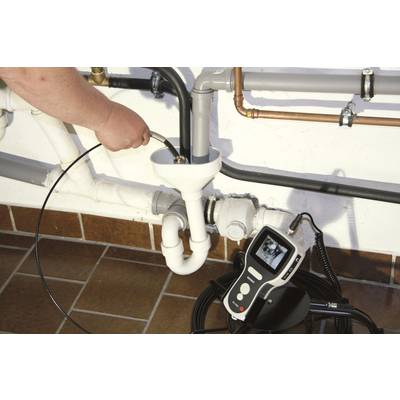

A person is using a drain camera to inspect a drainage pipe. A monitor in the foreground displays the captured image.

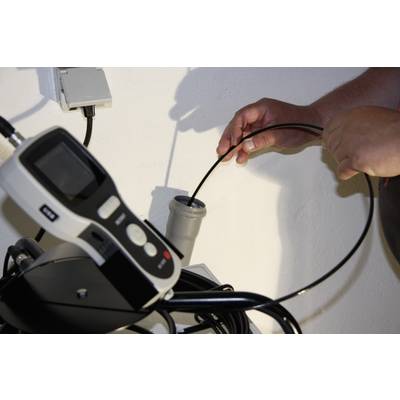

A person is holding a black cable connected to an electronic measuring device in a bright room.

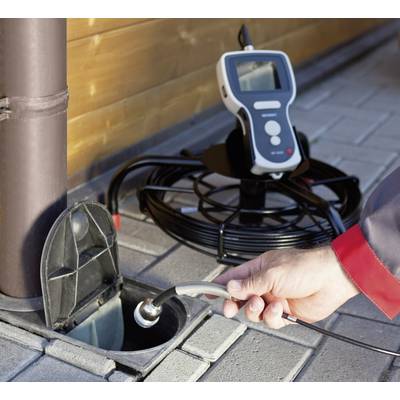

'A technician is conducting an inspection with a drain camera in a drainage pipe.'

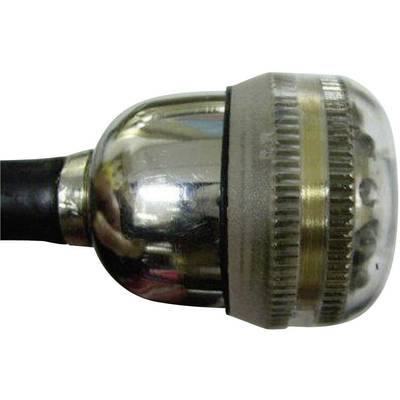

A chrome-plated shower head with a black water pipe.

Device with USB port on stand, viewed from below. A switch is visible.

1/8

Our service for you

Datasheet (PDF)

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 928.57 / piece)

€

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

Endoscope camera Ø 28 mm, 25 m for pipe inspection

Probe diameter N/A
Compatible with VOLTCRAFT® endoscope BS-1000T
Highly flexible and watertight with a length of 25 m

Technical specifications

Fibreglass

Probe length: 25 m

Light source: 16 LEDs, white, dimmable

Min. focusing distance: 50 mm

Dim

Length: 25 m

Focus: 25 – 100 mm

: IP67

Camera resolution: 640 x 480 Pixel

Suitable for: Voltcraft

Suitable for: VOLTCRAFT BS-1000T
VOLTCRAFT BS-1500T

Endoscope features: Waterproof
LED lit

Probe diameter: 28 mm

Power supply (details): BS-500 or BS-1000T

Ambient temperature: -20 up to +60ºC °C

Max. bend radius: 100 mm

Field of view: 107°

Product type: Endoscope probe

Documents & Downloads

Datasheet

Datasheet 101064 VOLTCRAFT Endoscope probe Probe diameter 28 mm 25 m Waterproof, LED lit

User & Safety Instructions

User & Safety Instructions 101064 VOLTCRAFT Endoscope probe Probe diameter 28 mm 25 m Waterproof, LED lit

Conformity certificate

Conformity certificate 101064 VOLTCRAFT Endoscope probe Probe diameter 28 mm 25 m Waterproof, LED lit

Warranty Terms

Warranty Terms 101064 VOLTCRAFT Endoscope probe Probe diameter 28 mm 25 m Waterproof, LED lit

Description

Matching endoscope camera for the BS-1000T professional endoscope. The flexible camera neck enables the camera located at the top to also be moved into inaccessible positions. The 12 built-in LEDs in the camera head enable pictures in areas in total darkness. The brightness is continuously adjustable using the connected basic device. The waterproof construction (IP57) also makes the camera ideal for liquids. Due to the flexible guide, the low weight and the excellent lenses, you are able to detect weaknesses and problem spots in machines and system in conjunction with the basic unit and therefore take effective preventative action without firstly having to carry out cost dismantling. The power is supplied by the input voltage connected to the endoscope base unit.

Features

Watertight camera head and endoscope hose (IP67)
Automatic image sharpness control (fixed focus)
12 powerful white dimmable LEDs
CMOS sensor
Flexible design
Resistant to motor and gear oils.
This text is machine translated.

Scope of delivery

Endoscope camera with reel
User manual

Hints

Not suitable for medical purposes! A suitable professional base unit (BS-1000 T ) is required for operation.
