VOLTCRAFT PL-125-T2 Thermometer -200 - +1372 °C Sensor type K, J
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 67.22 / piece)
€
Highlights & Details
VOLTCRAFT PL-125-T2 Thermometer -200 - +1372 °C Sensor type K, J
- 2 channels
- For K-/J type thermo-elements
- MAX/MIN/AVG with timestamp
- All K/J-type temperature sensors with miniature thermo-element plug can be connected
- Data logger for 18000 measurement values
- USB interface
Technical specifications
- Temperature sensor measurement range: K-type: -200 to +1372 °C/J-type: -210 to +1100 °C.
- Dim
(L x W x H) 162 x 62 x 28 mm
- Height
28 mm
- Length
162 mm
- Width
62 mm
Manufacturer's standards (no certificate)
- Sensor version
detachable
- Sensor type
K
J
- Type
PL-125-T2
- Type
2-channel
- Basic accuracy
0.15 %
- Accuracy ± °C
1 °C
- Resolution (temperature)
0.1 °C
- Basic accuracy
±(0.3% + 1ºC)
- Power supply (details)
3 micro batteries (AAA)
- Temperature range
K-type: -200 to +1372°C/J-Typ: -210 to +1100 °C
- Power supply
AAA battery (3x)
- Max. temperature
+1372 °C
- Min. temperature
-200 °C
- Weight
184 g
- Product type
Thermometer
Documents & Downloads
Datasheet
Datasheet 1012836 VOLTCRAFT PL-125-T2 Thermometer -200 - +1372 °C Sensor type K, J
Datasheet 1012836 VOLTCRAFT PL-125-T2 Thermometer -200 - +1372 °C Sensor type K, J
User & Safety Instructions
User & Safety Instructions 1012836 VOLTCRAFT PL-125-T2 Thermometer -200 - +1372 °C Sensor type K, J
Conformity certificate
Conformity certificate 1012836 VOLTCRAFT PL-125-T2 Thermometer -200 - +1372 °C Sensor type K, J
Warranty Terms
Warranty Terms 1012836 VOLTCRAFT PL-125-T2 Thermometer -200 - +1372 °C Sensor type K, J
Download
Download 1012836 VOLTCRAFT PL-125-T2 Thermometer -200 - +1372 °C Sensor type K, J
Download 1012836 VOLTCRAFT PL-125-T2 Thermometer -200 - +1372 °C Sensor type K, J
Description
This text is machine translated.
Robust thermometer with soft rubber case for K and J type thermo-elements. The large illuminated display and the function keys arranged on the sides enable an ergonomic usage. Since the device is equipped with a real-time clock, the MIN/MAX/AVG values with time stamp can be read, which considerably easier for long-term monitoring. In addition to the included wire sensors (1 pc. per channel) all K and J-type temperature sensors with miniature thermo-element plug can be connected.
Robust thermometer with soft rubber case for K and J type thermo-elements. The large illuminated display and the function keys arranged on the sides enable an ergonomic usage. Since the device is equipped with a real-time clock, the MIN/MAX/AVG values with time stamp can be read, which considerably easier for long-term monitoring. In addition to the included wire sensors (1 pc. per channel) all K and J-type temperature sensors with miniature thermo-element plug can be connected.
Features
- Temperature display in °C, °F or °K
- Auto Power Off function
- Differential measurement (T1-T2).
Scope of delivery
- 2x K-type wire sensor (-20 to +250 °C)
- 3 batteries AAA
- USB cable
- Software-CD
- User manual.
System requirements
- .Net framework v2.0 onward. · Windows® XP SP2/Windows Vista™/Windows® 7/8/8.1 · CD drive · USB interface.
Frequently Bought Together
(*All information is plus legal VAT) This article
VOLTCRAFT PL-125-T2 Thermometer -200 - +1372 °C Sensor type K, J
Conrad Electronic
€ 67.22*
-20%
VOLTCRAFT TP-202 Air probe 0 up to 250 °C 1.00 m Sensor type K
Conrad Electronic
€ 8.39
€ 6.71*
VOLTCRAFT Industrial LR03 AAA battery Alkali-manganese 1350 mAh 1.5 V 1 pc(s)
Conrad Electronic
€ 0.34*

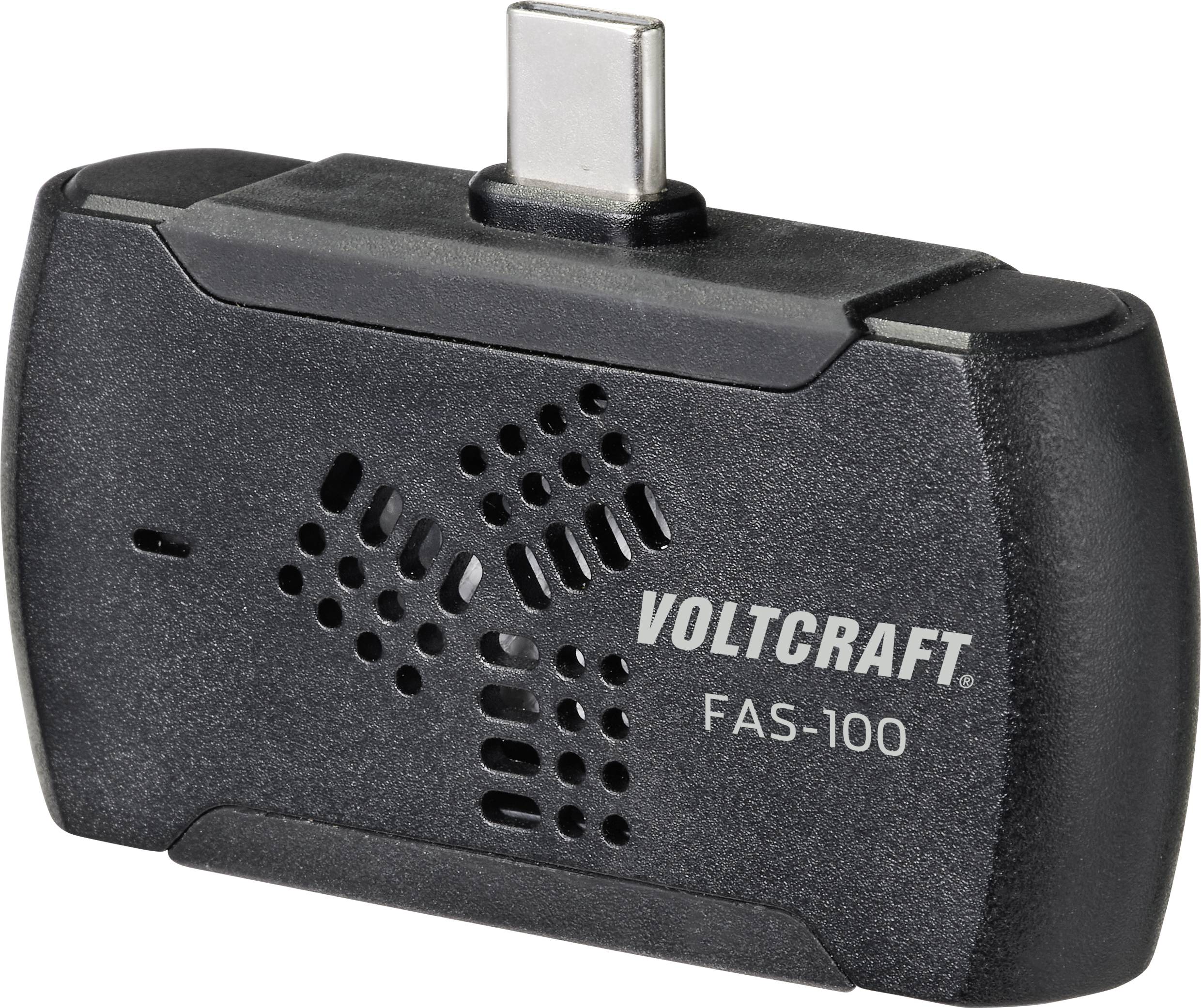

Formaldehyde detector VOLTCRAFT FAS-100 Particulate matter USB interface
