VOLTCRAFT Voltage limiter 7-pin socket No. of cores 7
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 72.26 / piece)
€
Highlights & Details

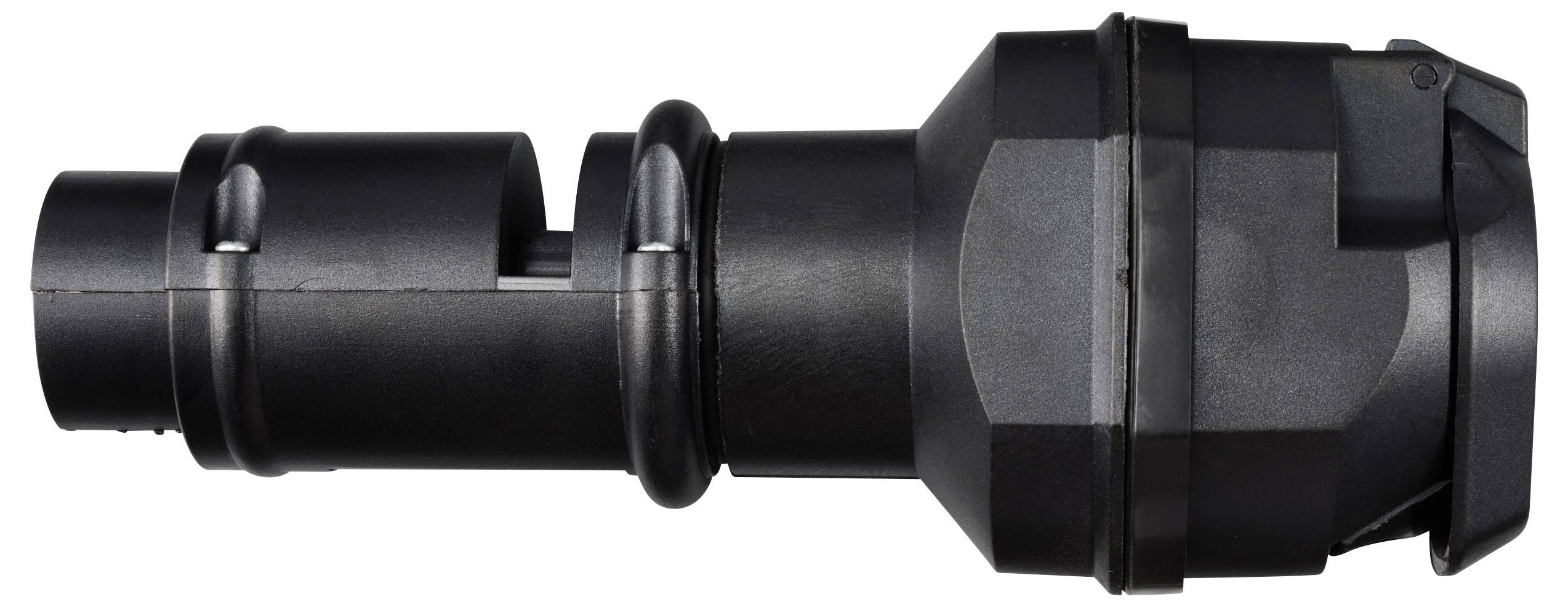

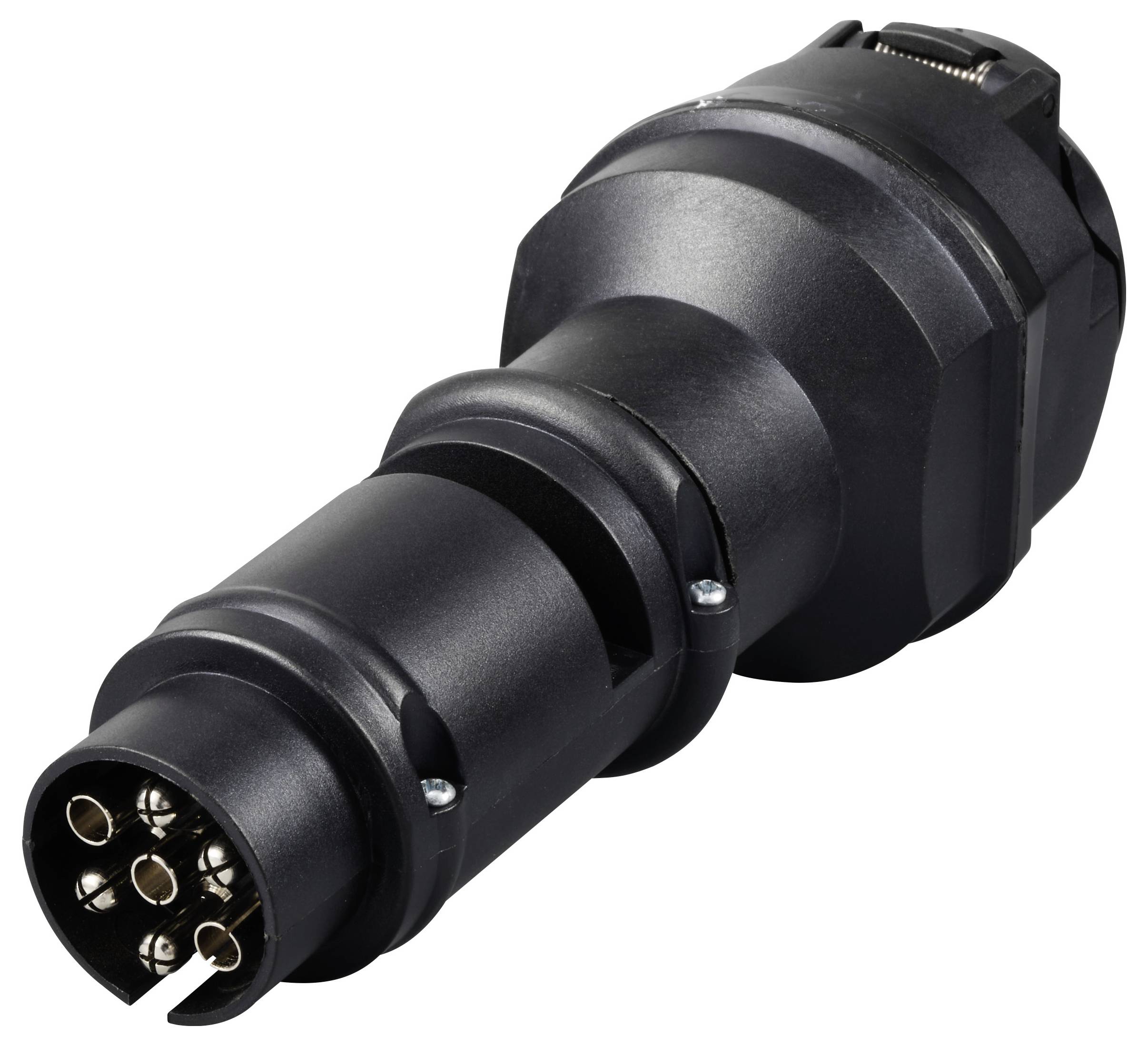

VOLTCRAFT vehicle voltage reducer (7-pin 24V to 12V)
- Converts 7-pin 24 V socket to a 7-pin 12 V plug according to ISO12098
- Towing vehicle 7-pin 12 V (occupied with 24 V) socket , trailer has a 7-pin 12 V plug
- Output current 0.5 to 2 A (per channel)
- Output power max. 90 W (max. 15 W per channel)
- Overcurrent and over-temperature protection
Technical specifications
- E24 approval
- Dim
(L x W x H) 200 x 80 x 80 mm
- Product type
Voltage limiter
- No. of cores
7
- Connection A
7-pin socket
- Connection B
7-pin plug
- Type
7-Pin 24V to 12V
- Design type
Adaptor
- Width
80 mm
- Height
80 mm
- Length
200 mm
- Cable Ø range
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3287427 VOLTCRAFT Voltage limiter 7-pin socket No. of cores 7
User & Safety Instructions
User & Safety Instructions 3287427 VOLTCRAFT Voltage limiter 7-pin socket No. of cores 7
Warranty Terms
Warranty Terms 3287427 VOLTCRAFT Voltage limiter 7-pin socket No. of cores 7
Description
With the voltage reducer a 12 V trailer can be operated at a 24 V towing vehicle without conversion. The voltage reducer is plugged easily between the trailer socket and the trailer socket.
This text is machine translated.
This text is machine translated.
Features
- With E24 approval
Scope of delivery
- 1x vehicle voltage reducer
