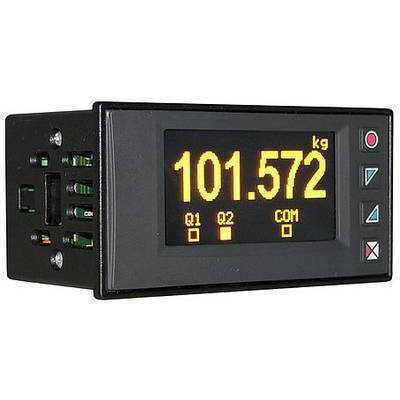

Wachendorff UA964802 UA964802 Universal display
EAN:
Part number:
Item no:
Number
Total (€ 355.00 / piece)
€ 355.00
incl. VAT
Only 2 Piece(s) available
Highlights & Details
Universal display UA964802 with OLED display
- Universal display in 96 x 48 mm format
- Monochrome yellow 2.7" OLED display
- Vertical or horizontal installation
- Universal input for process signals, thermocouples, resistance thermometers and potentiometers
- 2 alarm outputs and two analogue outputs
- Serial communication via RS485 Modbus interface
- 2 programmable user inputs
- 5-way language switching
- 16-step linearization
Technical specifications
- Product type
Universal display
- Type
UA964802
- Min. operating voltage
24 V
- Operating voltage
24 - 230 V
- Max. operating voltage
230 V
- Dim
(L x W x H) 53 x 96 x 48 mm
- Height
48 mm
- Length
53 mm
- Width
96 mm
- Manufacturer part #
UA964802
- Max. ambient temperature
45 °C
- Min. ambient temperature
0 °C
- Weight
165 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1930609 Wachendorff UA964802 UA964802 Universal display
Conformity certificate
Conformity certificate 1930609 Wachendorff UA964802 UA964802 Universal display
Description
The new universal display UA964802 with the brilliant OLED display is a small all-rounder. With a universal input for all standard temperature sensors, process signals, potentiometers, a 24 VDC sensor supply and a 16-step linearization function, this display can be used for almost all analogueue sensors. With the integrated summier function,
2 relay outputs and the galvanically isolated analogueue output can be easily solved for almost all measuring tasks. In addition to the very low installation depth, the RS485-Modbus interface (based on the Modbus RTU protocol), the IP54 front, the removable terminal blocks, the text menu guided programming interface, this display impresses with its monochrome yellow OLED display. This ensures optimum readability and an extremely large reading angle in difficult industrial environments, even in direct sunlight. The visualization by a programmable trend graph or a bar graph leaves nothing to be desired by the user.
This text is machine translated.
2 relay outputs and the galvanically isolated analogueue output can be easily solved for almost all measuring tasks. In addition to the very low installation depth, the RS485-Modbus interface (based on the Modbus RTU protocol), the IP54 front, the removable terminal blocks, the text menu guided programming interface, this display impresses with its monochrome yellow OLED display. This ensures optimum readability and an extremely large reading angle in difficult industrial environments, even in direct sunlight. The visualization by a programmable trend graph or a bar graph leaves nothing to be desired by the user.
