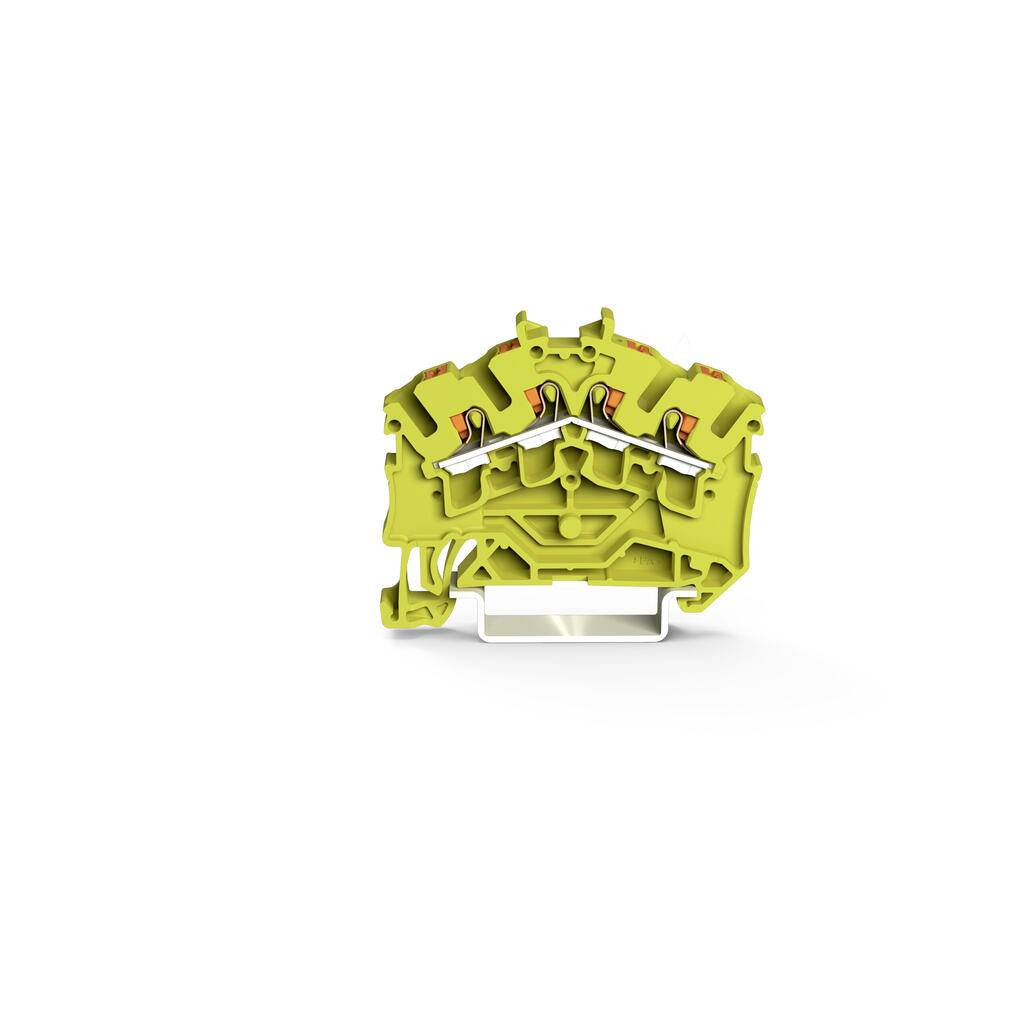

WAGO 2202-6406 Continuity Spring-loaded heavy duty connector Yellow 100 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Continuity
Connection
Spring-loaded heavy duty connector
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Highlights & Details
4-conductor through terminal with push-button
- 2202-6406
Technical specifications
- Packaging type
Piece
- Product type
Continuity
- Features
+ CAGE CLAMP®
- Connection
Spring-loaded heavy duty connector
- Cross section (flexible) (min.)
0.25 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
22
- AWG max.
12
- Number of pins
4
- Factory colour
Yellow
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Min. stripping length
10 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
2202-6406
- Content
100 pc(s)
- Type
2202-6406
- Dim
(W x H) 5.20 mm x 52.60 mm
- Width
5.20 mm
- Height
52.60 mm
- Connector colour
Yellow
