Name: WAGO 235-409/331-000 Spring-loaded terminal 0.75 mm² Number of pins 9 Grey 100 pc(s)
Brand: WAGO
SKU: 652131

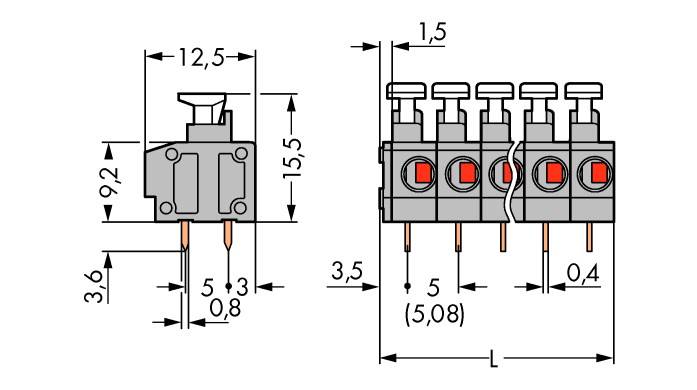

Circuit diagram of a push-button switch: Dimensions in mm, top view on the left shows height and width, side view on the right shows connection contacts.

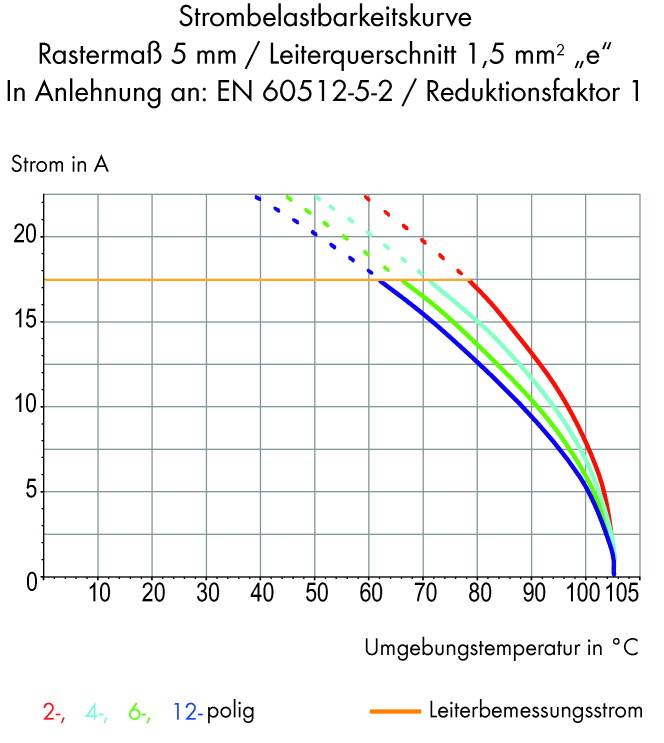

'Current Load Capability Curve' shows the relationship between current in A and ambient temperature in °C for 2-, 4-, 6-, 12-pole conductors.

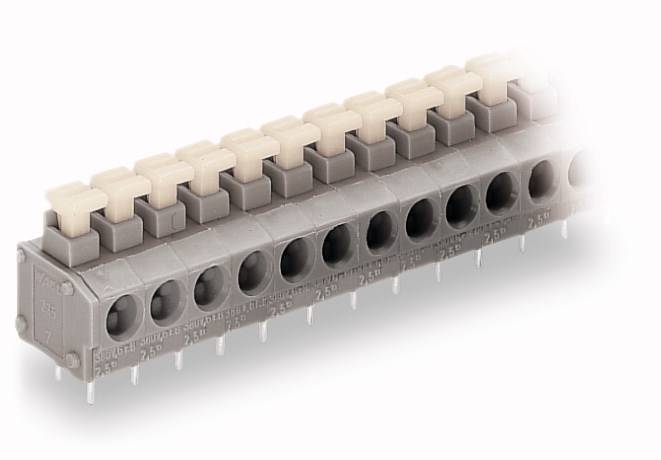

A grey plug-in terminal module with multiple slots for electrical connections. Beige terminals are located on the top.

1/3

Product type

Spring-loaded terminal

5 mm

5.08 mm

Pins per row

Number of pins

Connection

Spring-loaded terminal

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Type: 235-409/331-000

Product type: Spring-loaded terminal

Features: + CAGE CLAMP®

CS: 5 mm
5.08 mm

No. of rows: 1

Pins per row: 9

Number of pins: 9

Series: 235

Min. stripping length: 12 mm

Stripping length (max.): 10 mm

Connection: Spring-loaded terminal
Print

Nominal current: 24 A

Cross section (flexible) (min.): 0.25 mm²

Nominal current - rounded value: 24 A

Cross section (inflexible) (min.): 0.20 mm²

Cross section (flexible) (max.): 0.75 mm²

Cross section (inflexible) (max.): 1.50 mm²

AWG (min.): 20

Connector orientation: Parallel (to the PCB)

AWG max.: 14

Contact material: Cathode copper, tin plated

Enclosure material: Polyamide 6.6

Factory colour: Grey

Wire protection: Yes

Actuation direction: Parallel (to the PCB)

Weight: 6.924 g

Manufacturer part #: 235-409/331-000

Industrial packaging: Yes

Content: 100 pc(s)

Nominal voltage: 630 V

Width: 46.50 mm

Height: 19.10 mm

Length: 12.50 mm
