Name: WAGO 235-502 Spring-loaded terminal 1.50 mm² Number of pins 2 Grey 280 pc(s)
Brand: WAGO
SKU: 652104

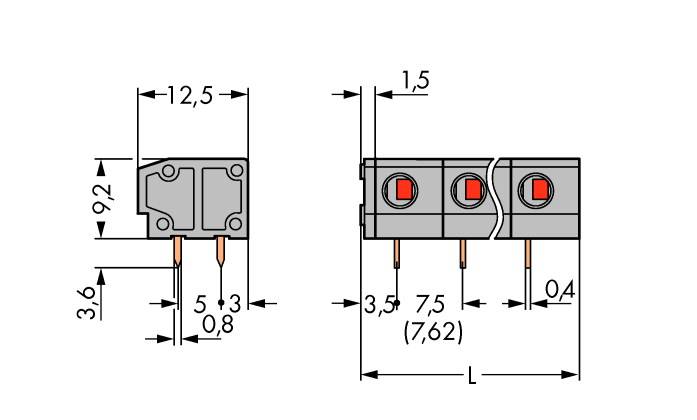

'Connection Terminal Diagram. Dimensions: Width 12.5 mm, Height 9.2 mm, Depth 3.6 mm. Spacing: 5 mm, 7.5 mm, and 1.5 mm.'

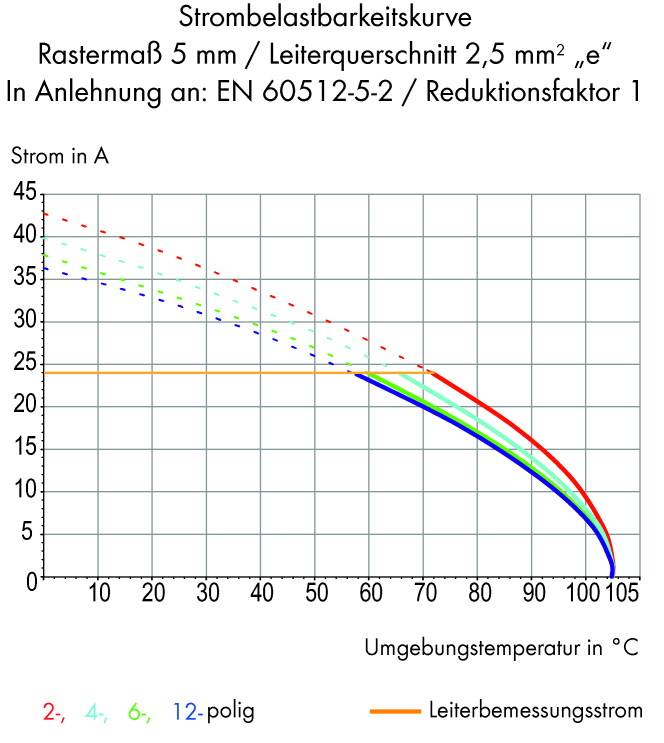

Diagram shows current carrying capacity curves for 2-, 4-, 6-, and 12-pole conductors with 2.5 mm² cross-section at ambient temperatures from 0 to 105°C.

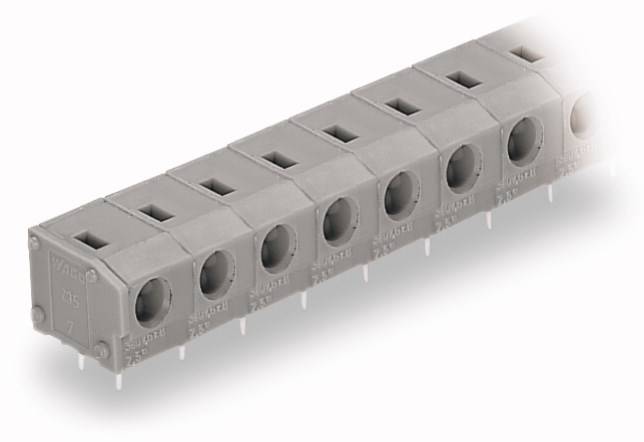

Elongated, grey electrical connector with multiple square terminals arranged in a row.

1/3

Product type

Spring-loaded terminal

7.50 mm

7.62 mm

Pins per row

Number of pins

Connection

Spring-loaded terminal

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Spring-loaded terminal

Content 280 pc(s)

Technical specifications

Type: 235-502

Product type: Spring-loaded terminal

Features: + CAGE CLAMP®

CS: 7.50 mm
7.62 mm

No. of rows: 1

Pins per row: 2

Number of pins: 2

Series: 235

Min. stripping length: 12 mm

Stripping length (max.): 10 mm

Connection: Spring-loaded terminal
Print

Nominal current: 24 A

Cross section (flexible) (min.): 0.25 mm²

Nominal current - rounded value: 24 A

Cross section (inflexible) (min.): 0.50 mm²

Cross section (flexible) (max.): 1.50 mm²

Cross section (inflexible) (max.): 2.50 mm²

AWG (min.): 20

Connector orientation: Parallel (to the PCB)

AWG max.: 14

Contact material: Cathode copper, tin plated

Enclosure material: Polyamide 6.6

Factory colour: Grey

Wire protection: Yes

Actuation direction: Parallel (to the PCB)

Weight: 1.78 g

Manufacturer part #: 235-502

Industrial packaging: Yes

Content: 280 pc(s)

Nominal voltage: 630 V

Width: 16.50 mm

Height: 12.80 mm

Length: 12.50 mm
