Name: WAGO 235-711/333-000 Spring-loaded terminal 0.50 mm² Number of pins 1 Grey 800 pc(s)
Brand: WAGO
SKU: 653604

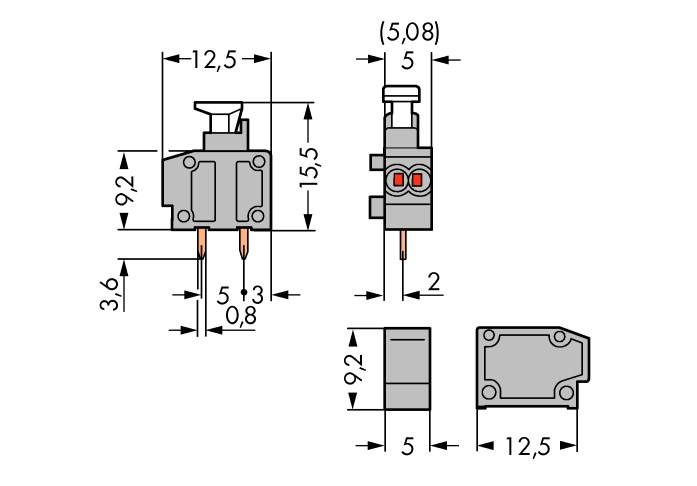

Technical drawing of a switch with dimensions: width 12.5 mm, height 15.5 mm. Side view and top view with pin configuration.

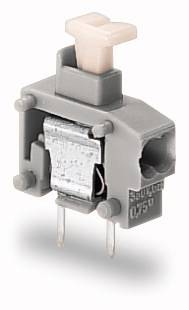

Small grey microswitch with two metal pins and a cream-coloured button on the top surface, suitable for electronic devices.

1/2

Product type

Spring-loaded terminal

5 mm

5.08 mm

Pins per row

Number of pins

Connection

Spring-loaded terminal

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Spring-loaded terminal

Content 800 pc(s)

Technical specifications

Type: 235-711/333-000

Product type: Spring-loaded terminal

Features: + CAGE CLAMP®

CS: 5 mm
5.08 mm

No. of rows: 1

Pins per row: 1

Number of pins: 1

Series: 235

Min. stripping length: 12 mm

Stripping length (max.): 10 mm

Connection: Spring-loaded terminal
Print

Nominal current: 24 A

Cross section (flexible) (min.): 0.08 mm²

Nominal current - rounded value: 24 A

Cross section (inflexible) (min.): 0.08 mm²

Cross section (flexible) (max.): 0.50 mm²

Cross section (inflexible) (max.): 0.50 mm²

AWG (min.): 24

Connector orientation: Parallel (to the PCB)

AWG max.: 18

Contact material: Cathode copper, tin plated

Enclosure material: Polyamide 6.6

Factory colour: Grey

Wire protection: Yes

Actuation direction: Parallel (to the PCB)

Weight: 0.67 g

Manufacturer part #: 235-711/333-000

Industrial packaging: Yes

Content: 800 pc(s)

Nominal voltage: 630 V

Width: 19.10 mm

Height: 12.50 mm

Length: 6.50 mm
