Name: WAGO 250-309 Spring-loaded terminal 0.50 mm² Number of pins 9 Grey 200 pc(s)
Brand: WAGO
SKU: 655378

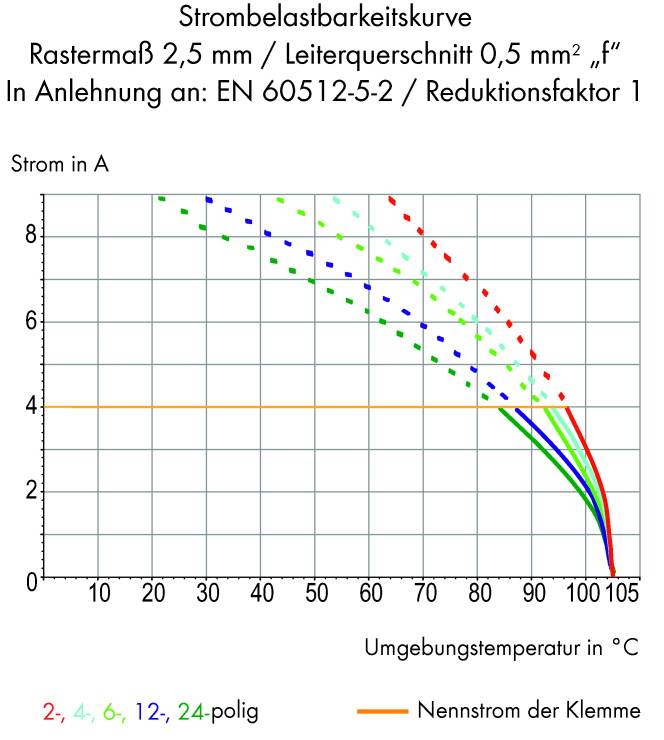

'Current Load Capability Curve': Diagram shows current in A against ambient temperature in °C with curves for 2-, 4-, 6-, 12-, 24-pole configurations.

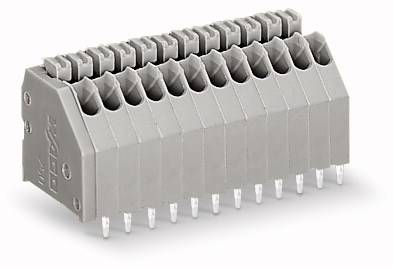

A grey, multi-pole connector with several pins, suitable for electronic circuits. Side view, showing contact arrangement and mounting elements.

1/3

Product type

Spring-loaded terminal

2.50 mm

Pins per row

Number of pins

Connection

Spring-loaded terminal

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Spring-loaded terminal

Content 200 pc(s)

Technical specifications

Type: 250-309

Product type: Spring-loaded terminal

Features: + CAGE CLAMP®

CS: 2.50 mm

No. of rows: 1

Pins per row: 9

Number of pins: 9

Series: 250

Min. stripping length: 8 mm

Stripping length (max.): 9 mm

Connection: Spring-loaded terminal
Print

Cross section (flexible) (min.): 0.20 mm²

Cross section (inflexible) (min.): 0.14 mm²

Cross section (flexible) (max.): 0.50 mm²

Cross section (inflexible) (max.): 0.50 mm²

AWG (min.): 24

Connector orientation: At an angle (to the PCB)

AWG max.: 20

Factory colour: Grey

Wire protection: Yes

Weight: 3.24 g

Manufacturer part #: 250-309

Industrial packaging: Yes

Content: 200 pc(s)

Nominal voltage: 160 V

Width: 24.00 mm

Height: 16.70 mm

Length: 12.00 mm

Variants(All information is without VAT, plus shipping costs)

Pins per row

Number of pins

Connector orientation

WAGO 250-309 Spring-loaded terminal 0.50 mm² Number of pins 9 Grey 200 pc(s)

Item no:655378

Unavailable

Conrad Electronic

This article

At an angle (to the PCB)

2.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

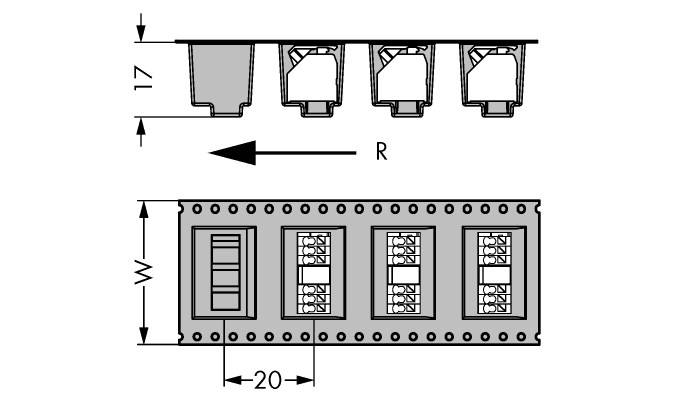

WAGO 250-203/353-604/997-404 Spring-loaded terminal 1.50 mm² Number of pins 3 Black 160 pc(s)

Item no:657106

Unavailable

Conrad Electronic

At an angle (to the PCB)

3.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

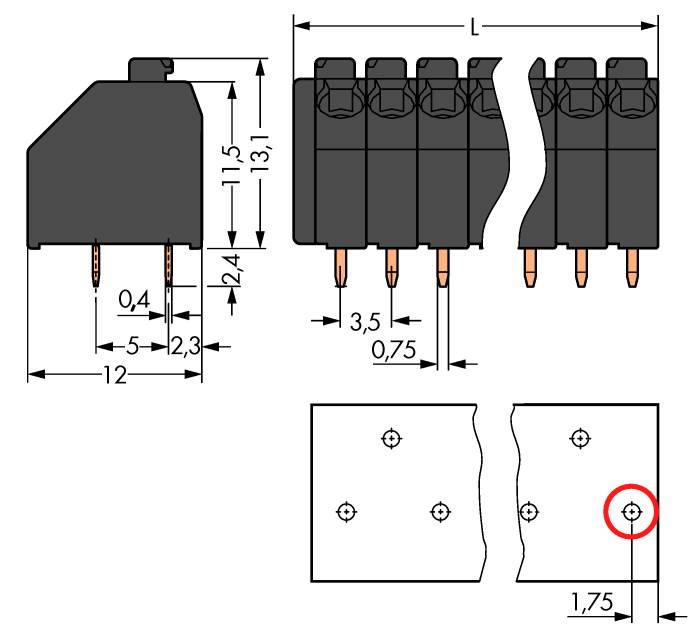

WAGO 250-204/000-009 Spring-loaded terminal 1.50 mm² Number of pins 4 Light grey 300 pc(s)

Item no:655353

Unavailable

Conrad Electronic

At an angle (to the PCB)

3.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO 250-204/353-604/997-406 Spring-loaded terminal Number of pins 4 160 pc(s)

Item no:657079

Unavailable

Conrad Electronic

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO 250-205/353-604/997-405 Spring-loaded terminal 1.50 mm² Number of pins 5 Black 160 pc(s)

Item no:657107

Unavailable

Conrad Electronic

At an angle (to the PCB)

3.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO 250-206/353-604/997-406 Spring-loaded terminal 1.50 mm² Number of pins 6 Black 160 pc(s)

Item no:657108

Unavailable

Conrad Electronic

At an angle (to the PCB)

3.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO 250-302 Spring-loaded terminal 0.50 mm² Number of pins 2 Grey 720 pc(s)

Item no:655356

Unavailable

Conrad Electronic

At an angle (to the PCB)

2.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO 250-303 Spring-loaded terminal 0.50 mm² Number of pins 3 Grey 520 pc(s)

Item no:655358

Unavailable

Conrad Electronic

At an angle (to the PCB)

2.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO 250-304 Spring-loaded terminal 0.50 mm² Number of pins 4 Grey 400 pc(s)

Item no:655362

Unavailable

Conrad Electronic

At an angle (to the PCB)

2.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO 250-305 Spring-loaded terminal 0.50 mm² Number of pins 5 Grey 340 pc(s)

Item no:655370

Unavailable

Conrad Electronic

At an angle (to the PCB)

2.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 655378 WAGO 250-309 Spring-loaded terminal 0.50 mm² Number of pins 9 Grey 200 pc(s)

User & Safety Instructions

User & Safety Instructions 655378 WAGO 250-309 Spring-loaded terminal 0.50 mm² Number of pins 9 Grey 200 pc(s)
