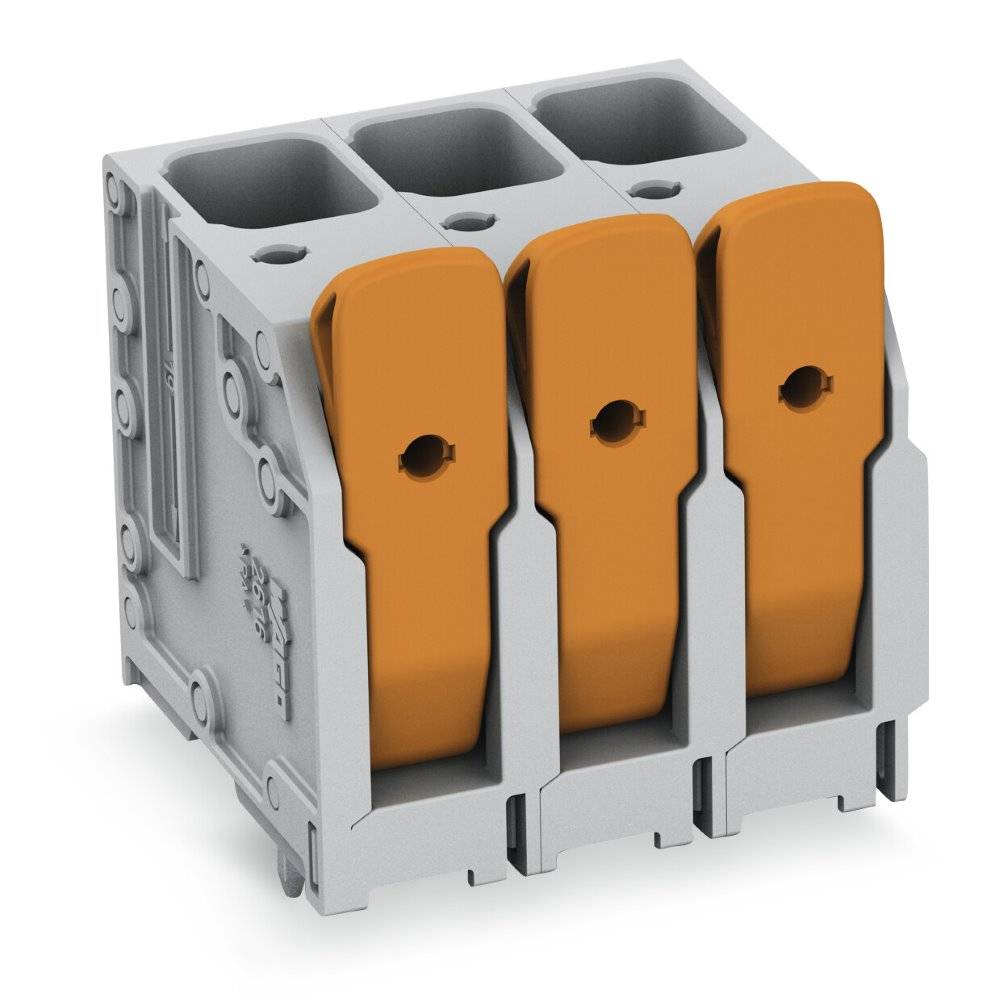

Image similar
WAGO 2616-3103/020-000 Print terminal 16 mm² Number of pins 3 40 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Print terminal
CS
10 mm
Number of pins
3
Connection
Soldering
Spring-loaded heavy duty connector
Highlights & Details
PCB terminal with lever
- Content 40 pc(s)
Technical specifications
- Packaging type
Piece
- Type
2616-3103/020-000
- Product type
Print terminal
- Features
+ actuator
- CS
10 mm
- No. of rows
1
- Number of pins
3
- Series
2616
- Min. stripping length
18 mm
- Stripping length (max.)
20 mm
- Connection
Soldering
Spring-loaded heavy duty connector
- Nominal current
66 A
- Cross section (flexible) (min.)
0.75 mm²
- Nominal current - rounded value
66 A
- Cross section (inflexible) (min.)
0.75 mm²
- Cross section (flexible) (max.)
16 mm²
- Cross section (inflexible) (max.)
16 mm²
- Connector orientation
Perpendicular (to the PCB)
- Contact material
Tin
- Enclosure material
Thermoplastic
- Manufacturer part #
2616-3103/020-000
- Content
40 pc(s)
- Nominal voltage
600 V
- Width
32.8 mm
- Height
34.2 mm
- Length
29.4 mm
- UKCA
yes
