Name: WAGO 2787-2144 PSU enclosure 5 A 120 W Content 1 pc(s)
Brand: WAGO
SKU: 2624908

A WAGO Pro 2 power supply unit, suitable for DIN rail mounting. Label displays technical specifications and connection details.

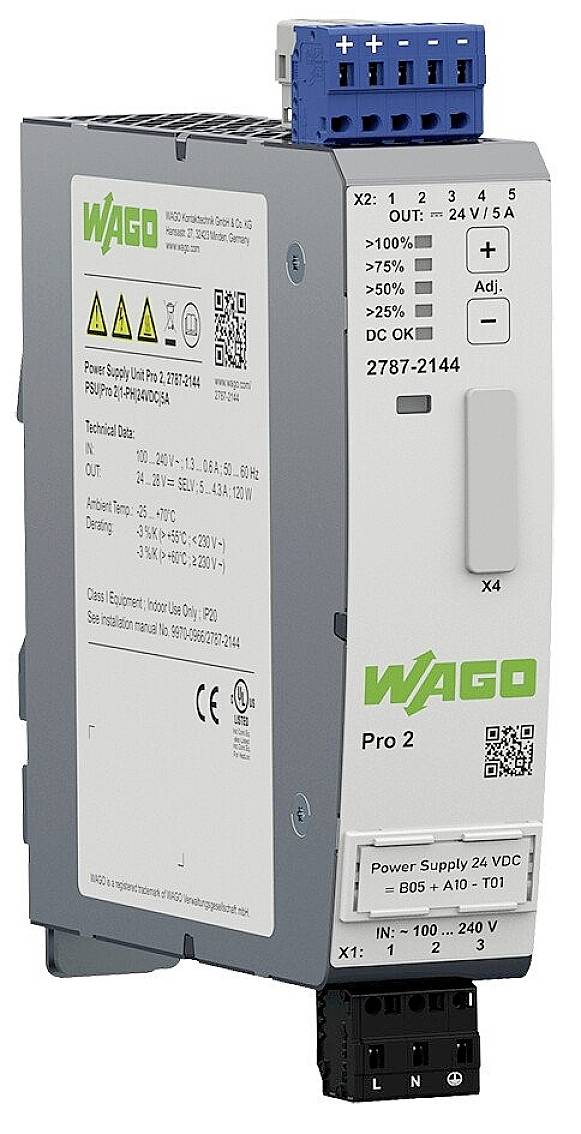

Electronic device for power supply in industrial applications, with green 'WAGO' inscription and LED status indicators.

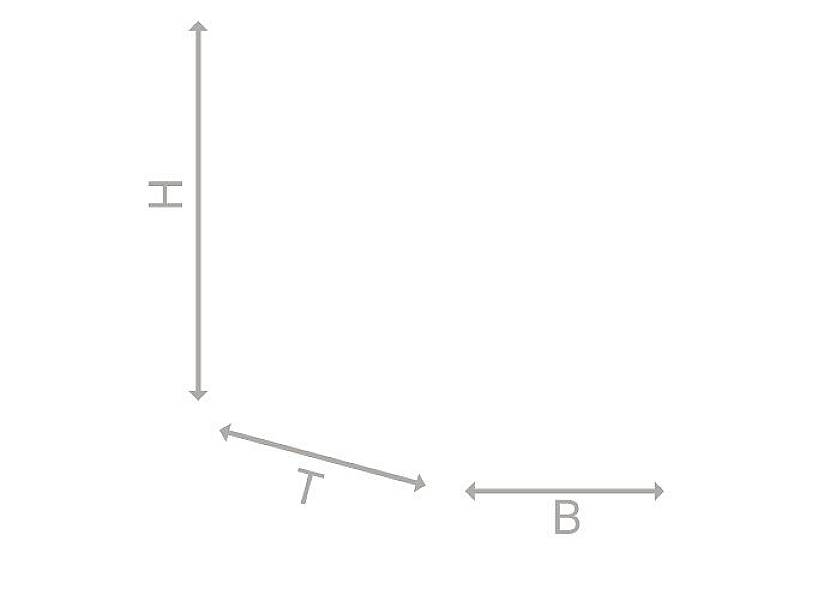

Diagram with three marked lines: vertical line 'H', diagonal line 'T', and horizontal line 'B'.

1/3

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Power supply Pro 2

1-phaseTopBoost + PowerBoostCommunicative
This text is machine translated.

Technical specifications

Product type: PSU enclosure

Min. input voltage: 90 V AC
130 V DC

Input voltage (max.): 264 V AC
240 V DC

Max. output current: 5 A

Output current (max.) - rounded: 5 A

: 120 W

Phases: 1

Connection: Spring-loaded heavy duty connector

Dim: (L x W x H) 130 x 35 x 130 mm

Weight: 650 g

Output voltage (max.): 24 V DC

Max. operating temperature (derating): +70 °C

Min. operating temperature (derating): -25 °C

Manufacturer part #: 2787-2144

Content: 1 pc(s)

PSU features: Surge protection

Width: 35 mm

Height: 130 mm

Length: 130 mm

: IP20

Max. temperature: +85 °C

Min. temperature: -40 °C

Type: 2787-2144

Variants(All information is without VAT, plus shipping costs)

Power

Connection

Input voltage (max.)

Output current (max.) - rounded

Min. input voltage

WAGO 2787-2144 PSU enclosure 5 A 120 W Content 1 pc(s)

Item no:2624908

Unavailable

Conrad Electronic

This article

120 W

Spring-loaded heavy duty connector

264 V AC

5 A

90 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO 2687-2142 PSU enclosure 24 V DC 1.25 A 30 W No. of outputs:1 x Content 1 pc(s)

Item no:2617592

Fast track dispatch on Mon 19 Oct

25 Piece(s)Conrad Electronic

30 W

Jack connector

1.25 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 119.99^*

WAGO 2787-2134 PSU enclosure 12 V DC 10 A 120 W No. of outputs:1 x Content 1 pc(s)

Item no:2624906

Unavailable

Conrad Electronic

120 W

Spring-loaded heavy duty connector

264 V AC

10 A

90 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO 2787-2135 PSU enclosure 12 V DC 15 A 180 W No. of outputs:1 x Content 1 pc(s)

Item no:2624907

Unavailable

Conrad Electronic

180 W

Spring-loaded heavy duty connector

264 V AC

15 A

90 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO 2787-2144/000-070 PSU enclosure 24 V DC 5 A 120 W Content 1 pc(s)

Item no:2624909

Unavailable

Conrad Electronic

120 W

Spring-loaded heavy duty connector

264 V AC

5 A

90 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO 2787-2146/000-070 PSU enclosure 24 V DC 10 A 240 W No. of outputs:1 x Content 1 pc(s)

Item no:2624910

Unavailable

Conrad Electronic

240 W

Spring-loaded heavy duty connector

264 V AC

10 A

90 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO 2787-2147 PSU enclosure 20 A 480 W Content 1 pc(s)

Item no:2624911

Unavailable

Conrad Electronic

480 W

Spring-loaded heavy duty connector

264 V AC

20 A

90 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO 2787-2147/000-070 PSU enclosure 24 V DC 20 A 480 W Content 1 pc(s)

Item no:2624912

Unavailable

Conrad Electronic

480 W

Spring-loaded heavy duty connector

264 V AC

20 A

90 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO 2787-2154 PSU enclosure 48 V DC 2.5 A 120 W Content 1 pc(s)

Item no:2624913

Unavailable

Conrad Electronic

120 W

Spring-loaded heavy duty connector

264 V AC

2.5 A

90 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO 2787-2157 PSU enclosure 48 V DC 10 A 480 W No. of outputs:1 x Content 1 pc(s)

Item no:2624914

Unavailable

Conrad Electronic

480 W

Spring-loaded heavy duty connector

264 V AC

10 A

90 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2624908 WAGO 2787-2144 PSU enclosure 5 A 120 W Content 1 pc(s)

Features

Power supply with TopBoost, PowerBoost and configurable overload behaviorConfigurable digital signal input and output, optical status display, function keysCommunication interface for configuration and monitoringOptional connection to IO-Link, Ethernet/IP, Modbus TCP or Modbus RTUCan be switched in parallel, can be switched in seriesSelf-cooling by natural convection in a horizontal installation positionPlug-in connection technologyGalvanically separated output voltage (SELV/PELV) according to EN 61010-2-201/UL 61010-2-201Inscription recording for WAGO labeling cards (WMB) and WAGO labeling strips

Description

Features

Power supply with TopBoost, PowerBoost and configurable overload behaviorConfigurable digital signal input and output, optical status display, function keysCommunication interface for configuration and monitoringOptional connection to IO-Link, Ethernet/IP, Modbus TCP or Modbus RTUCan be switched in parallel, can be switched in seriesSelf-cooling by natural convection in a horizontal installation positionPlug-in connection technologyGalvanically separated output voltage (SELV/PELV) according to EN 61010-2-201/UL 61010-2-201Inscription recording for WAGO labeling cards (WMB) and WAGO labeling strips
