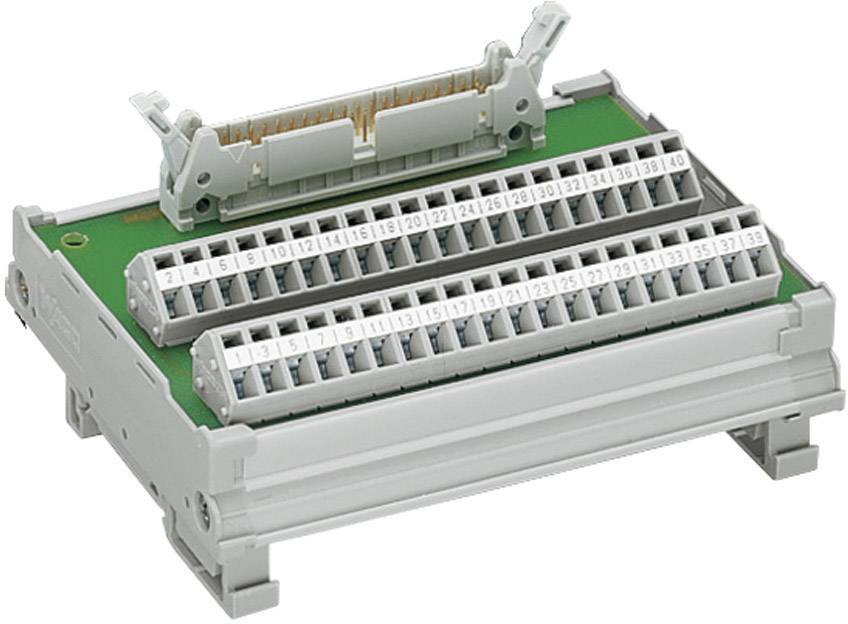

Image similar
WAGO 289-540 0.08 - 2.5 mm²
EAN:
Part number:
Item no:
Product type
Transfer module
Total no. of pins
9
Connection
Pull spring
Dim
(W x H x D) 38 x 34 x 85 mm
Type
D-SUB header
Datasheet (PDF)
Number
Total (€ 37.99 / piece)
€ 37.99
incl. VAT
Only 4 Piece(s) available
Highlights & Details
Interface module
- Mounting base for TS 35
- 289-540
Technical specifications
- JUNCTION MOD.SUB-D-MALE CONN.9 POLES
- Product type
Transfer module
- Total no. of pins
9
- Connection
Pull spring
- Dim
(W x H x D) 38 x 34 x 85 mm
- Type
D-SUB header
- Operating current
2 A
- Content
1 pc(s)
- Suitable for
Mating connector (Cut & Clip)
- Number of pins
9
- Width
38 mm
- Height
34 mm
- max. cross section
2.5 mm²
- Min. cross section
0.08 mm²
- Series
CAGE CLAMP® Serie 236
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Features
+ D-SUB pin strip
vertical orientation
TS 35 socket
- Depth
85 mm
- Material (details)
Connector contact: Au over 2 µm Ni
- Connector cross section
0.08 - 2.5 mm²
- Temperature range
-20 - +50 °C
- Operating voltage
125 V AC/DC
Documents & Downloads
Datasheet
Datasheet 737149 WAGO 289-540 0.08 - 2.5 mm²
User & Safety Instructions
User & Safety Instructions 737149 WAGO 289-540 0.08 - 2.5 mm²
Description
With sub-min D header, for mating with IDC connection, vertical plug-in direction,
Mounting base for TS 35.
This text is machine translated.
Mounting base for TS 35.
This text is machine translated.
