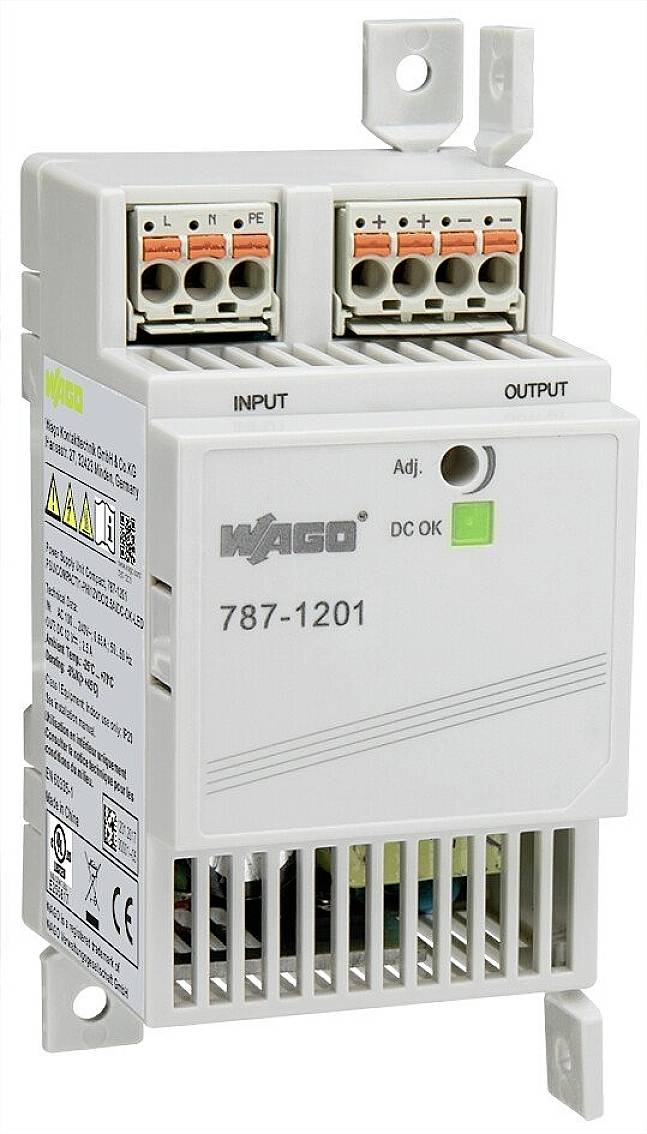

WAGO 787-1201 PSU enclosure 12 V DC 2.5 A 30 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Primary-switched power supply
- Compact1-phaseDC-OK LED
- This text is machine translated.
Technical specifications
- Product type
PSU enclosure
- Min. input voltage
90 V AC
125 V DC
- Input voltage (max.)
264 V AC
375 V DC
- Max. output current
2.5 A
- Output current (max.) - rounded
2.5 A
30 W
- Output type (power supply units)
Adjustable
- Phases
1
- Output voltage (nominal)
12 V DC
- No. of outputs
1 x
- Connection
Spring-loaded heavy duty connector
- Dim
(L x W x H) 56 x 54 x 90 mm
- Weight
319 g
- Output voltage (max.)
12 V DC
- Output voltage (min.)
10 V
- Max. operating temperature (derating)
+70 °C
- Min. operating temperature (derating)
-25 °C
- Manufacturer part #
787-1201
- Content
1 pc(s)
- PSU features
Regulated
- Width
54 mm
- Height
90 mm
- Length
56 mm
IP20
- Max. temperature
+85 °C
- Min. temperature
-40 °C
- Type
787-1201
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2624967 WAGO 787-1201 PSU enclosure 12 V DC 2.5 A 30 W No. of outputs:1 x Content 1 pc(s)
Description
Features
- Step profile for standard installation in the installation distributorRemovable front plate and screw fittings ideal for alternative installation in the system distributor or device installationPlug-in picoMAX® connection technology (tool-free)Can be switched in parallel, can be switched in seriesElectrically isolated output voltage (SELV) according to EN 60335-1; PELV according to EN 60204
