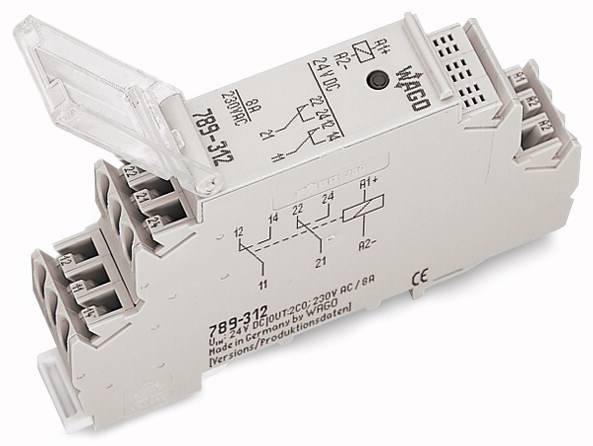

WAGO 789-312 Industrial relay Nominal voltage: 24 V DC Switching current (max.): 8 A 2 change-overs Piece 1 pc(s)
Packaging type
Piece
Product type
Industrial relay
Contact type
2 change-overs
Nominal voltage
24 V DC
Switching voltage (max.)
250 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Industrial relay
- Type
789-312
- Connection
Pull spring
- Factory colour
Grey
- Response time
7 ms
- Fall time
2 ms
- Contact type
2 change-overs
- Contact material
AgNi 90/10
- Nominal voltage
24 V DC
- Switching voltage (max.)
250 V AC
- Switching current (max.)
8 A
- Max. switching capacity
2000 VA
- Durability
3 x 10 7 cycles
- Length
90 mm
- Width
17.5 mm
- Height
55 mm
- Dim
(L x W x H) 90 x 17.5 x 55 mm
- Content
1 pc(s)
- Weight
56 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 640895 WAGO 789-312 Industrial relay Nominal voltage: 24 V DC Switching current (max.): 8 A 2 change-overs Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 640895 WAGO 789-312 Industrial relay Nominal voltage: 24 V DC Switching current (max.): 8 A 2 change-overs Piece 1 pc(s)
