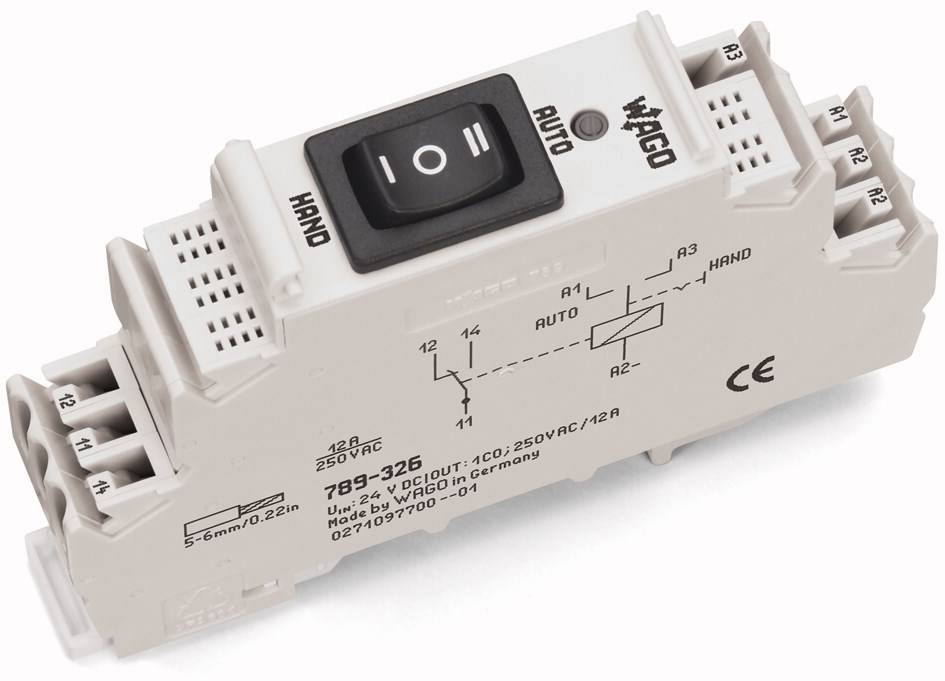

Name: WAGO 789-326 Industrial relay Nominal voltage: 24 V DC Switching current (max.): 12 A 1 change-over Package 10 pc(s)
Brand: WAGO
SKU: 654932

'Diagram of an electrical circuit with switch, diodes, resistors and labelling: Automatic (AUTO), OFF, Manual ON (HAND).'

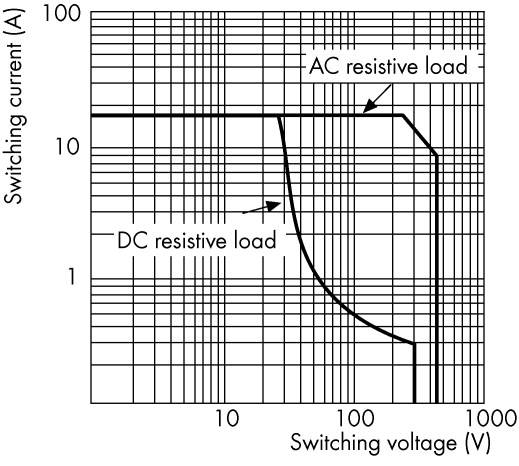

Graph shows logarithmic axes. Y-axis: Switching current (A), X-axis: Switching voltage (V). Curves: 'AC resistive load' and 'DC resistive load'.

1/3

Packaging type

Package

Product type

Industrial relay

Contact type

1 change-over

Nominal voltage

24 V DC

Switching voltage (max.)

250 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Relay module in series mounting case

Industrial packaging, pack of 10
This text is machine translated.

Technical specifications

Packaging type: Package

Product type: Industrial relay

Type: 789-326

Connection: Pull spring

Response time: 15 ms

Fall time: 5 ms

Contact type: 1 change-over

Contact material: Ag-alloy

Nominal voltage: 24 V DC

Switching voltage (max.): 250 V AC

Switching current (max.): 12 A

Max. switching capacity: 4000 VA

Durability: 10 x 10⁶ switching cycles

Features: Automatic/manual switch

Length: 90 mm

Width: 17.5 mm

Height: 55 mm

Dim: (L x W x H) 90 x 17.5 x 55 mm

Content: 10 pc(s)

Industrial packaging: Yes

Weight: 55.006 g

Variants(All information is without VAT, plus shipping costs)

Contact type

Nominal voltage

Packaging type

Switching current (max.)

Switching voltage (max.)

WAGO 789-326 Industrial relay Nominal voltage: 24 V DC Switching current (max.): 12 A 1 change-over Package 10 pc(s)

Item no:654932

Unavailable

Conrad Electronic

This article

1 change-over

24 V DC

Package

12 A

250 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO 789-304 Industrial relay Nominal voltage: 24 V DC Switching current (max.): 12 A 1 change-over Piece 1 pc(s)

Item no:640880

Unavailable

Conrad Electronic

1 change-over

24 V DC

Piece

12 A

250 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO 789-311 Industrial relay Nominal voltage: 12 V DC Switching current (max.): 8 A 2 change-overs 10 pc(s)

Item no:654948

Unavailable

Conrad Electronic

2 change-overs

12 V DC

8 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO 789-312 Industrial relay Nominal voltage: 24 V DC Switching current (max.): 8 A 2 change-overs Piece 1 pc(s)

Item no:640895

Unavailable

Conrad Electronic

2 change-overs

24 V DC

Piece

8 A

250 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO 789-315 Industrial relay Nominal voltage: 110 V DC Switching current (max.): 8 A 2 change-overs 10 pc(s)

Item no:654939

Unavailable

Conrad Electronic

2 change-overs

110 V DC

8 A

250 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO 789-508 Industrial relay Nominal voltage: 230 V AC Switching current (max.): 12 A 1 change-over Piece 1 pc(s)

Item no:640881

Unavailable

16 Piece(s)Conrad Electronic

1 change-over

230 V AC

Piece

12 A

250 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO 789-536 Industrial relay Nominal voltage: 24 V DC, 24 V AC Switching current (max.): 4 A 2 makers, 2 breakers Piece 1 pc(s)

Item no:640886

Unavailable

Conrad Electronic

2 makers

24 V DC

Piece

4 A

250 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO 789-552 Industrial relay Nominal voltage: 12 V DC, 12 V AC Switching current (max.): 4 A 4 makers Piece 1 pc(s)

Item no:640889

Unavailable

Conrad Electronic

4 makers

12 V DC

Piece

4 A

250 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO 789-570 Industrial relay Nominal voltage: 230 V AC Switching current (max.): 16 A 1 maker Piece 1 pc(s)

Item no:640900

Unavailable

Conrad Electronic

1 maker

230 V AC

Piece

16 A

400 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO 789-571 Industrial relay Nominal voltage: 24 V DC Switching current (max.): 16 A 1 maker Piece 1 pc(s)

Item no:640894

Unavailable

Conrad Electronic

1 maker

24 V DC

Piece

16 A

400 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1
