Name: WAGO 789-536 Industrial relay Nominal voltage: 24 V DC, 24 V AC Switching current (max.): 4 A 2 makers, 2 breakers Piece
Brand: WAGO
SKU: 640886

Circuit diagram of a relay with coil and contacts. Connections between terminals A1, A2 and terminals 13, 23, 11, 21.

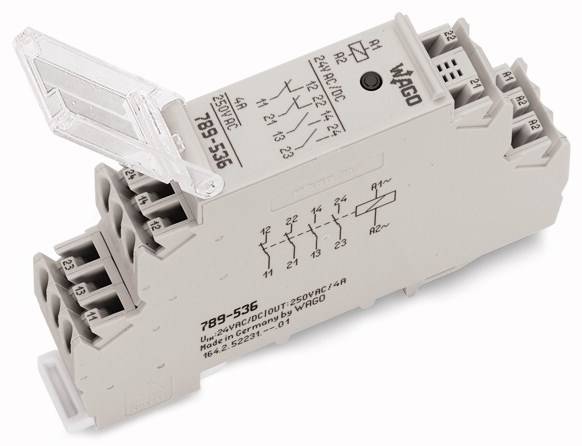

An electrical terminal module with multiple connection terminals, labels '789-536' and 'WAGO', a blue test button, and a hinged cover.

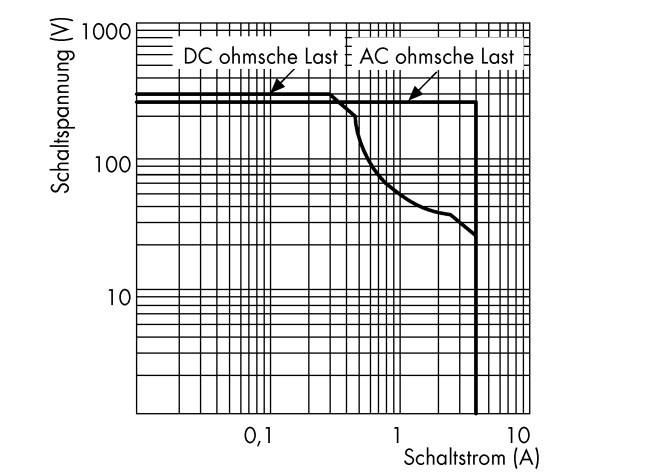

'Diagram shows switching voltage (V) against switching current (A). DC resistive load drops steeply at 100 V. AC resistive load falls gradually.'

1/3

Packaging type

Piece

Product type

Industrial relay

Contact type

2 makers

2 breakers

Nominal voltage

24 V DC

24 V AC

Switching voltage (max.)

250 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Packaging type: Piece

Product type: Industrial relay

Type: 789-536

Connection: Pull spring

Factory colour: Grey

Response time: 20 ms

Fall time: 20 ms

Contact type: 2 makers
2 breakers

Nominal voltage: 24 V DC
24 V AC

Switching voltage (max.): 250 V AC

Switching current (max.): 4 A

Max. switching capacity: 90 W
1000 VA

Length: 90 mm

Width: 17.5 mm

Height: 55 mm

Dim: (L x W x H) 90 x 17.5 x 55 mm

Content: 1 pc(s)

Weight: 52.3 g

UKCA: yes
