WAGO 789-570 Industrial relay Nominal voltage: 230 V AC Switching current (max.): 16 A 1 maker Piece 1 pc(s)

Circuit diagram with A1 and A2 as inputs, connected to a switch and the output points 13 and 14.
'WAGO Relay Terminal Module 789-571, 230V AC/16A, 2 Change-over Contacts, DIN Rail Mountable, with Protective Cover and Connection Diagram.'

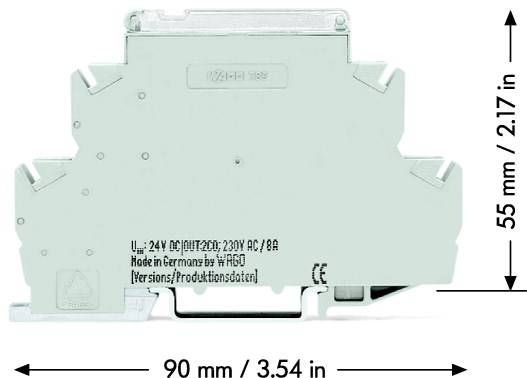

A grey electronic device, rectangular in shape, with inscription: '24V DC/10-30V AC/8A'. Dimensions: 90 mm wide, 55 mm high.
1/3
Packaging type
Piece
Product type
Industrial relay
Contact type
1 maker
Nominal voltage
230 V AC
Switching voltage (max.)
400 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Packaging type

Piece

Product type

Industrial relay

Type

789-570

Connection

Pull spring

Factory colour

Grey

Contact type

1 maker

Contact material

AgCdO

Nominal voltage

230 V AC

Switching voltage (max.)

400 V AC

Switching current (max.)

16 A

Max. switching capacity

300 W

4000 VA

Durability

1 x 10 5 cycles

Length

90 mm

Width

17.5 mm

Height

55 mm

Dim

(L x W x H) 90 x 17.5 x 55 mm

Content

1 pc(s)

Weight

57.6 g

UKCA

not relevant
