Name: WAGO 805-109 Spring-loaded terminal 1.50 mm² Number of pins 9 Grey 140 pc(s)
Brand: WAGO
SKU: 655311

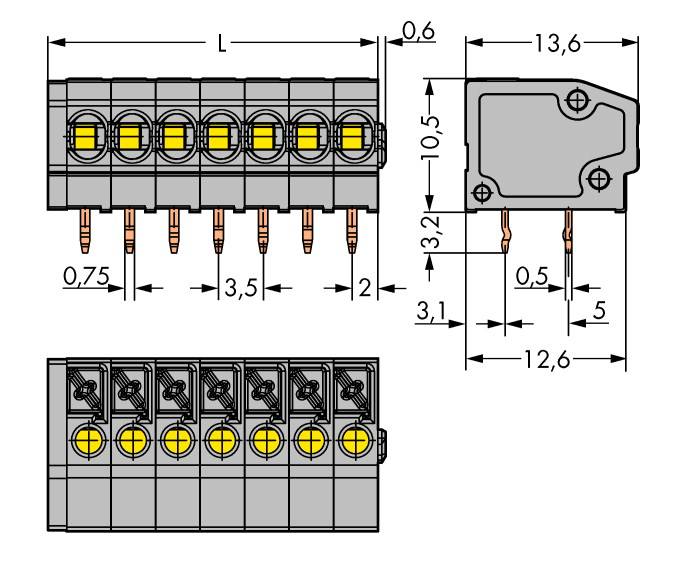

Technical drawing of a multi-pin connector with detailed dimensions in millimetres. Shows spacings, width, and heights.

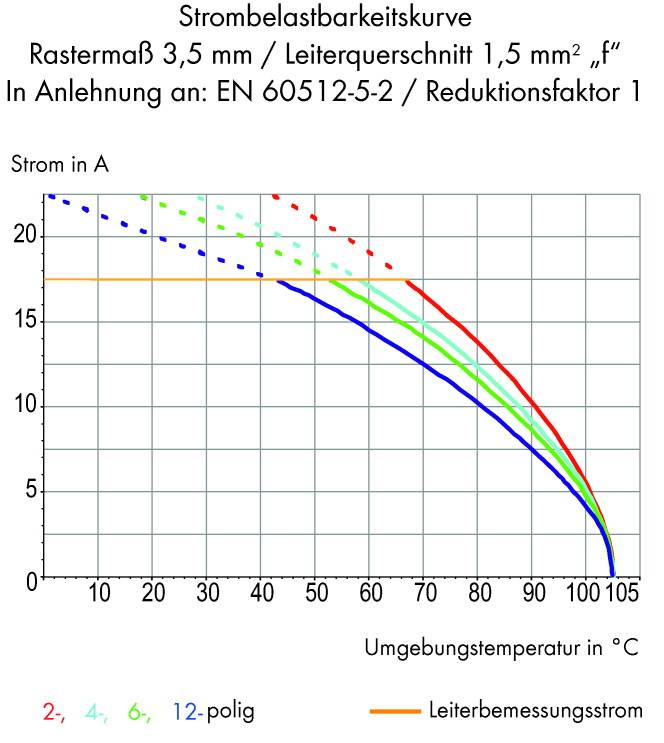

Current load capacity curve shows maximum current intensity at various temperatures. Red line as reference value, coloured lines for 2, 4, 6, 12-pole conductors.

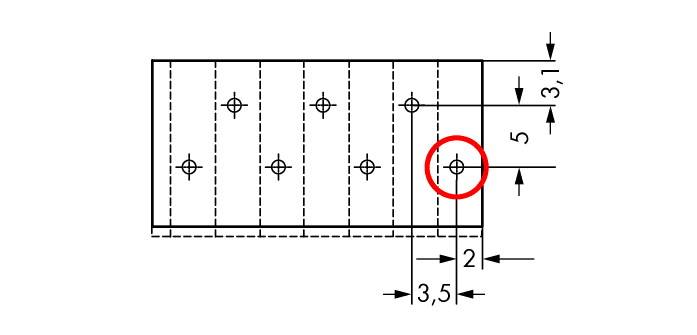

Technical drawing of a component with a hole grid. Highlighted hole in the red circle, dimensions: 5 mm spacing from top, 3.5 mm from the side.

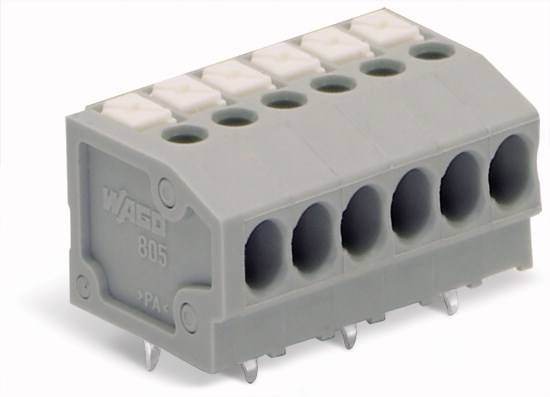

A six-pole, grey electrical connector for conductors on a white background.

1/4

Product type

Spring-loaded terminal

3.50 mm

Pins per row

Number of pins

Connection

Spring-loaded terminal

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Type: 805-109

Product type: Spring-loaded terminal

Features: + CAGE CLAMP®

CS: 3.50 mm

No. of rows: 1

Pins per row: 9

Number of pins: 9

Series: 805

Min. stripping length: 9 mm

Stripping length (max.): 10 mm

Connection: Spring-loaded terminal
Print

Cross section (flexible) (min.): 0.20 mm²

Cross section (inflexible) (min.): 0.20 mm²

Cross section (flexible) (max.): 1.50 mm²

Cross section (inflexible) (max.): 1.50 mm²

AWG (min.): 24

Connector orientation: Parallel (to the PCB)

AWG max.: 16

Contact material: Cathode copper, tin plated

Factory colour: Grey

Wire protection: Yes

Weight: 4.146 g

Manufacturer part #: 805-109

Industrial packaging: Yes

Content: 140 pc(s)

Nominal voltage: 320 V

Width: 33.00 mm

Height: 13.70 mm

Length: 13.60 mm
