WAGO 812-100 N/A 10 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Factory colour
Green
Yellow
Stripping length
11 mm
Stripping length (max.)
10 mm
Dim
(L x W x H) 75 x 75 x 30 mm
Datasheet (PDF)
Highlights & Details

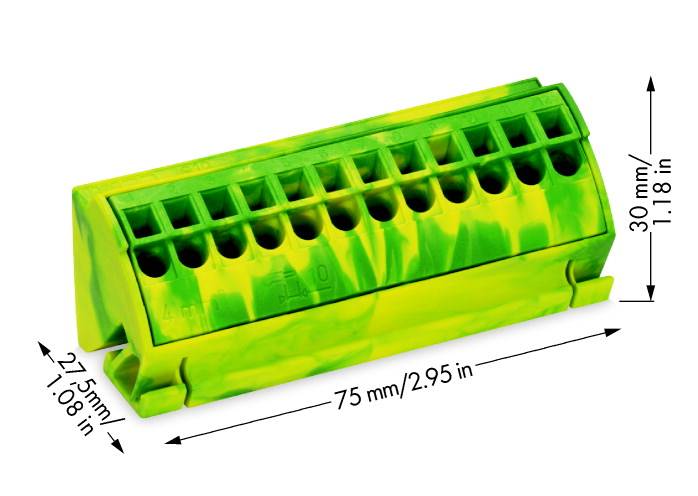

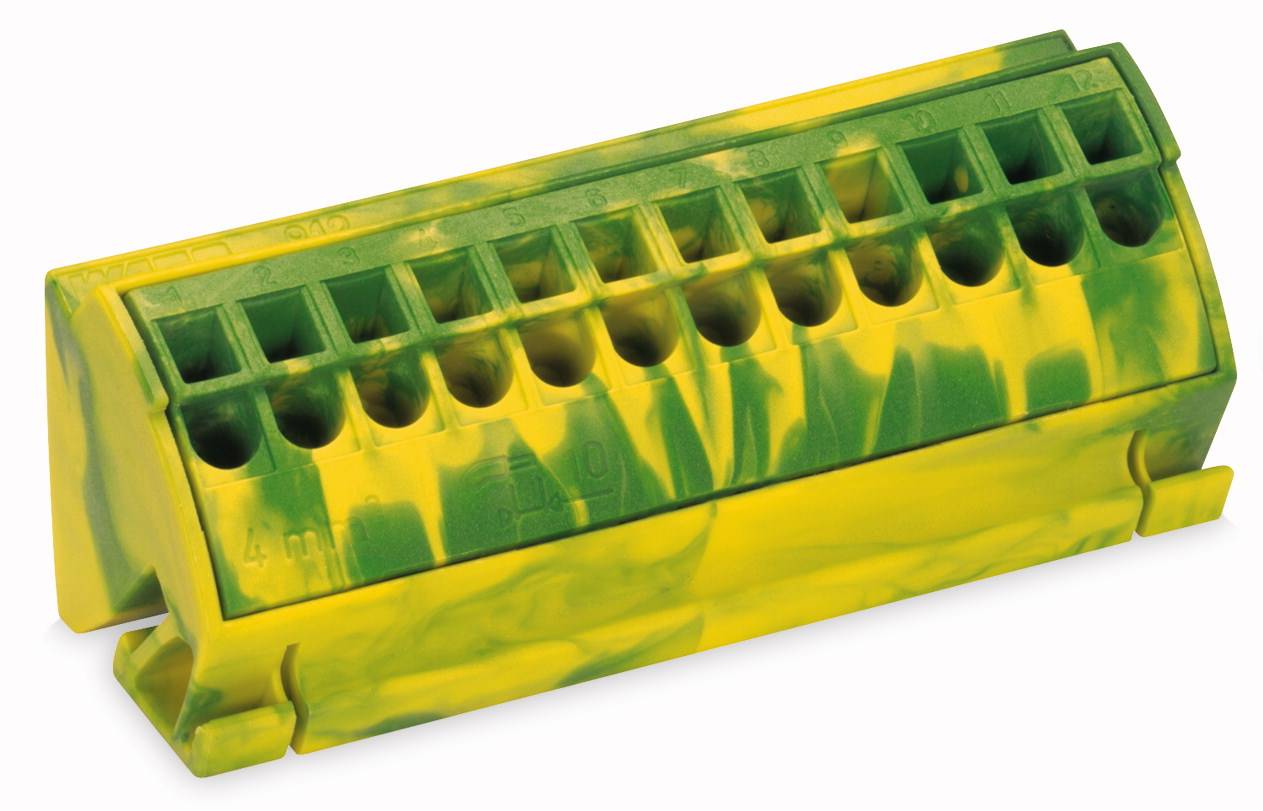

PE connection block 4 mm²
- 812-100
- Industrial packaging, pack of 10
- This text is machine translated.
Technical specifications
- Packaging type
Piece
- Factory colour
Green
Yellow
- Stripping length
11 mm
- Stripping length (max.)
10 mm
- Dim
(L x W x H) 75 x 75 x 30 mm
- Connection
Spring-loaded terminal
- Weight
35.918 g
- Manufacturer part #
812-100
- Industrial packaging
Yes
- Content
10 pc(s)
- Clamp width
75 mm
- Series
812
- Width
75 mm
- Height
30 mm
- Length
75 mm
- Series
812
- Type
812-100
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
4 mm²
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 657085 WAGO 812-100 N/A 10 pc(s)
User & Safety Instructions
User & Safety Instructions 657085 WAGO 812-100 N/A 10 pc(s)
