Wall bushing 1408235 CUC-V14-F2ZNI-EM/24FN5:FC Phoenix Contact Content: 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Wall feedthru
Mounting type
Panel-fit
Connector type
Pin
AWG
13
Datasheet (PDF)
Technical specifications
- Ambient temperature (operation): -40 °C ... 70 °C
- Pollution level: 2
- Rated voltage (II/2) 630 V.
- Rated surge voltage (II/2) 4 kV
- Rated current 16 A
- Flammability class according to UL 94: V0
- Packaging type
Piece
- Product type
Wall feedthru
- Mounting type
Panel-fit
- Connector type
Pin
13
- Connection
Spring-loaded terminal
- Connector cross section
2.5 mm²
- Rated voltage
250 V
- Test current
16 A
- Case material
Metal
- Total no. of pins
5
- Manufacturer part #
1408235
- Content
1 pc(s)
- Number of pins
5
- RoHS-compliant
Yes
- Type
CUC-V14-F2ZNI-EM/24FN5:FC
- Seal
Push-pull
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2136640 Wall bushing 1408235 CUC-V14-F2ZNI-EM/24FN5:FC Phoenix Contact Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2136640 Wall bushing 1408235 CUC-V14-F2ZNI-EM/24FN5:FC Phoenix Contact Content: 1 pc(s)
Description

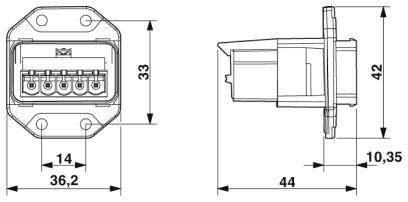

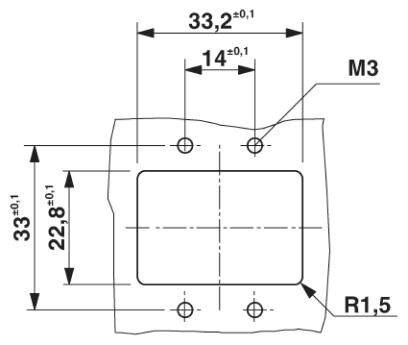

Push-Pull mounting frame made of metal, version 14, incl. contact insert with spring-force connection, flexible coding, for rectangular mounting cut-out, with seal, without fixing screws
