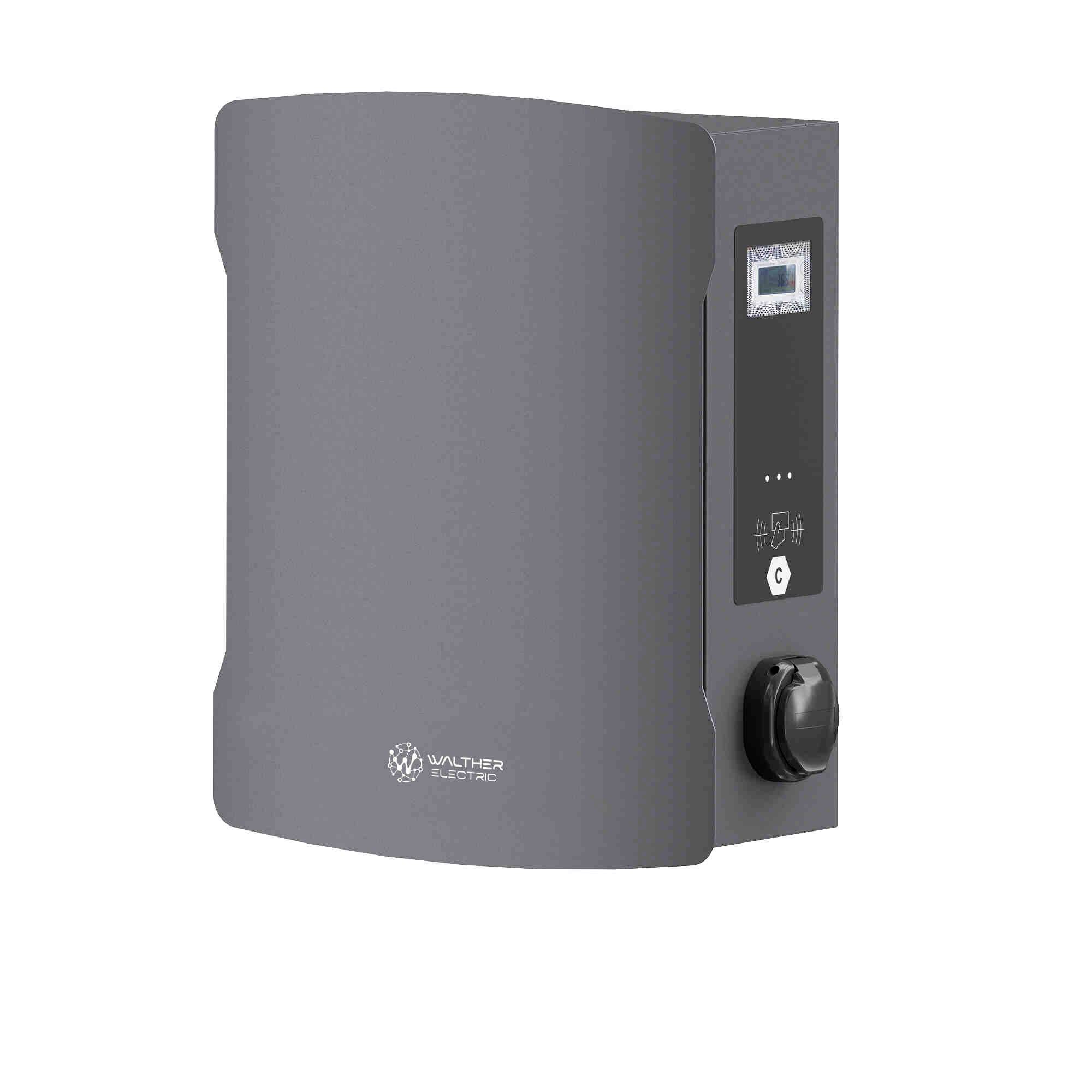

Walther Werke 98603210 Wallbox 32 A No. of ports 2 22 kW
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Voltage type of supply voltage: AC
- Material of housing: Steel
- Suitable for wall mounting: Yes
- 4G (LTE) mobile phone standard: No.
- With display: No.
- Frequency: 50 Hz
- Compatible with Apple HomeKit: No.
- Compatible with Amazon Alexa: No.
- Compatible with Google Assistant: No.
- IFTTT support available: No.
- Suitable for floor mounting: No.
- Input voltage: 400 V
- Rated connection power 22 kW
- Output voltage DC 0 V
- Output voltage AC 50 Hz: 400 V
- Output voltage AC 60 Hz: 0 V
- Max. Output current AC 50 Hz: 32 A
- Number of loading points: 2
- Max. Power per charging point 22 kW
- Suitable for pipe mounting: No.
- Portable: No.
- Number of charging sockets type 2: 2
- With house connection box (HAK): No.
- With overvoltage protection module: No.
- Number of FI switches type A: 2
- Charging cable can be locked permanently at the charging station: Yes
- DC fault current detection: Yes
- Contactor contact welding detection: Yes
- With circuit breaker: No.
- Network-compatible as Master: Yes
- Network-compatible as Extender: Yes
- Network connection via LAN: Yes
- Network-compatible via WLAN: No.
- Mobile phone standard 5G: No
- With energy meter: Yes
- With key switch: No.
- With integrated RFID card reader: Yes
- NFC (near field communication) yes
- Static load management integrated: Yes
- Suitable for dynamic load management: Yes
- Open Charge Point Protocol (OCPP) Version: 1.6
- Plug and charge (ISO 15118): Yes
- Operation and configuration via APP: No.
- Export of the load history: Yes
- Backend included: No.
- With MID-compatible energy meter: Yes
- True-to-law: No.
- Product type
Wallbox
- Charging current
32 A
- No. of ports
2
- Charging capacity
22 kW
- No. of phases
3-phase
- Nominal voltage
400 V
IP54
IK10

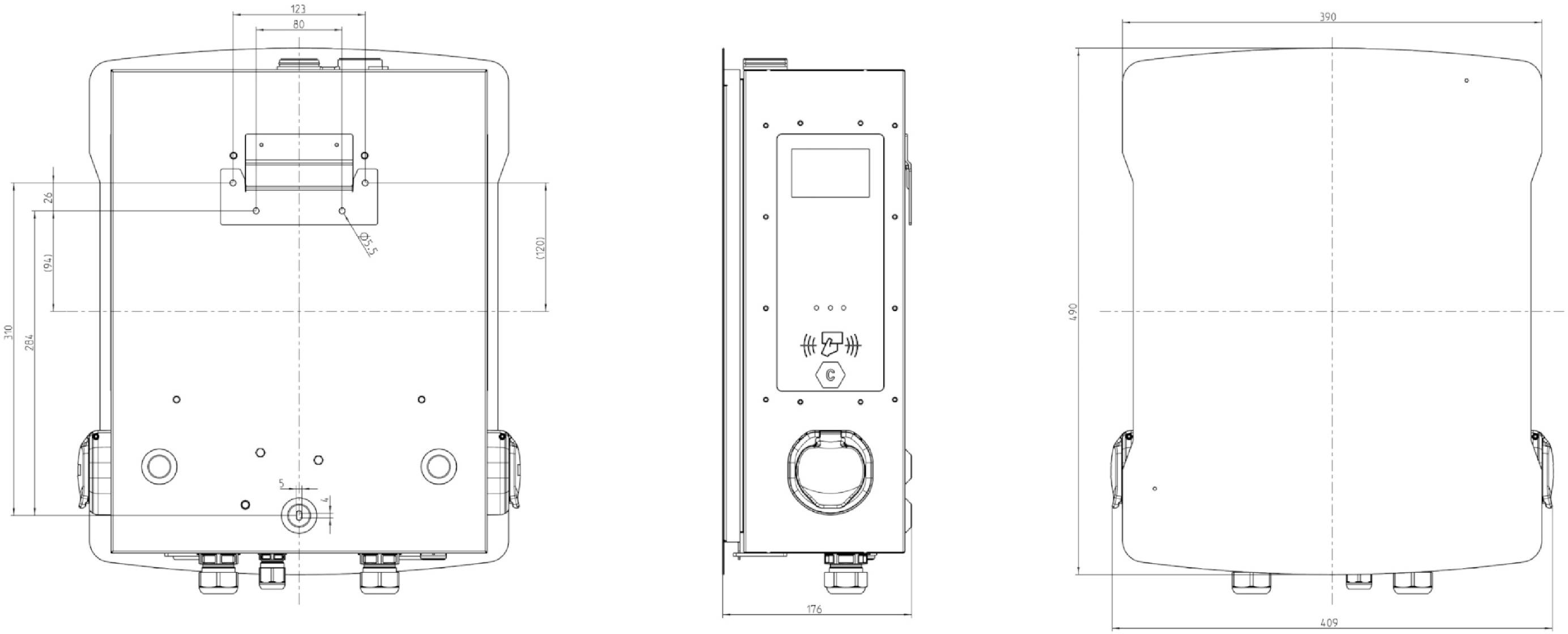

- Width
390 mm
- Height
490 mm
- Depth
175 mm
Documents & Downloads
Datasheet
Datasheet 3836281 Walther Werke 98603210 Wallbox 32 A No. of ports 2 22 kW
Datasheet 3836281 Walther Werke 98603210 Wallbox 32 A No. of ports 2 22 kW
User & Safety Instructions
User & Safety Instructions 3836281 Walther Werke 98603210 Wallbox 32 A No. of ports 2 22 kW
Description
Walther Wallbox smartEVO duo equipment features: Charging according to mode 3 according to IEC 61851 2x charging socket type 2 (mode 3) Charging power per charging point up to 22kW 3 status LED s in the side panel to display the current status of the charging point Authentication via side mounted RFID-panel Powerline Communication (PLC) according to ISO 15118 enables Plug & Charge connection to energy management systems via Modbus TCP or EEBUS connectivity to IPD control and IPD manager as well as to the SMA communication protocol (SEMP) Integrated Web server update firmware version as well as control/maintenance via remote access. Ethernet interface incl. AMJ module for connection to fixed data cables visible energy counters (MID certified) per charging point Smart grid capability via OCPP 1.6 (JSON) Local dynamic load management (DLM) incl. Slate load detection (exact phase) of the available charging power with up to 250 charging points Each charging point: Permanent PE monitoring 6mA DC fault current monitoring and FI type A protective adhesive monitoring (welding detection) Integrated 2-stage temperature monitoring. Robust and weather-resistant housing Galvanised powder coated steel plate housing in ferro-gmer gray (DB703) Lockable door in elegant design max. Connection of the power supply cable for NYY-J 2x5x10mm² Direct connection to ground fault circuit breakers Included accessories 2 RFID cards Mifare-Desfire EV1 1 keys 1x wall bracket 1x AMJ module Mounting screws QuickGuide drilling template
