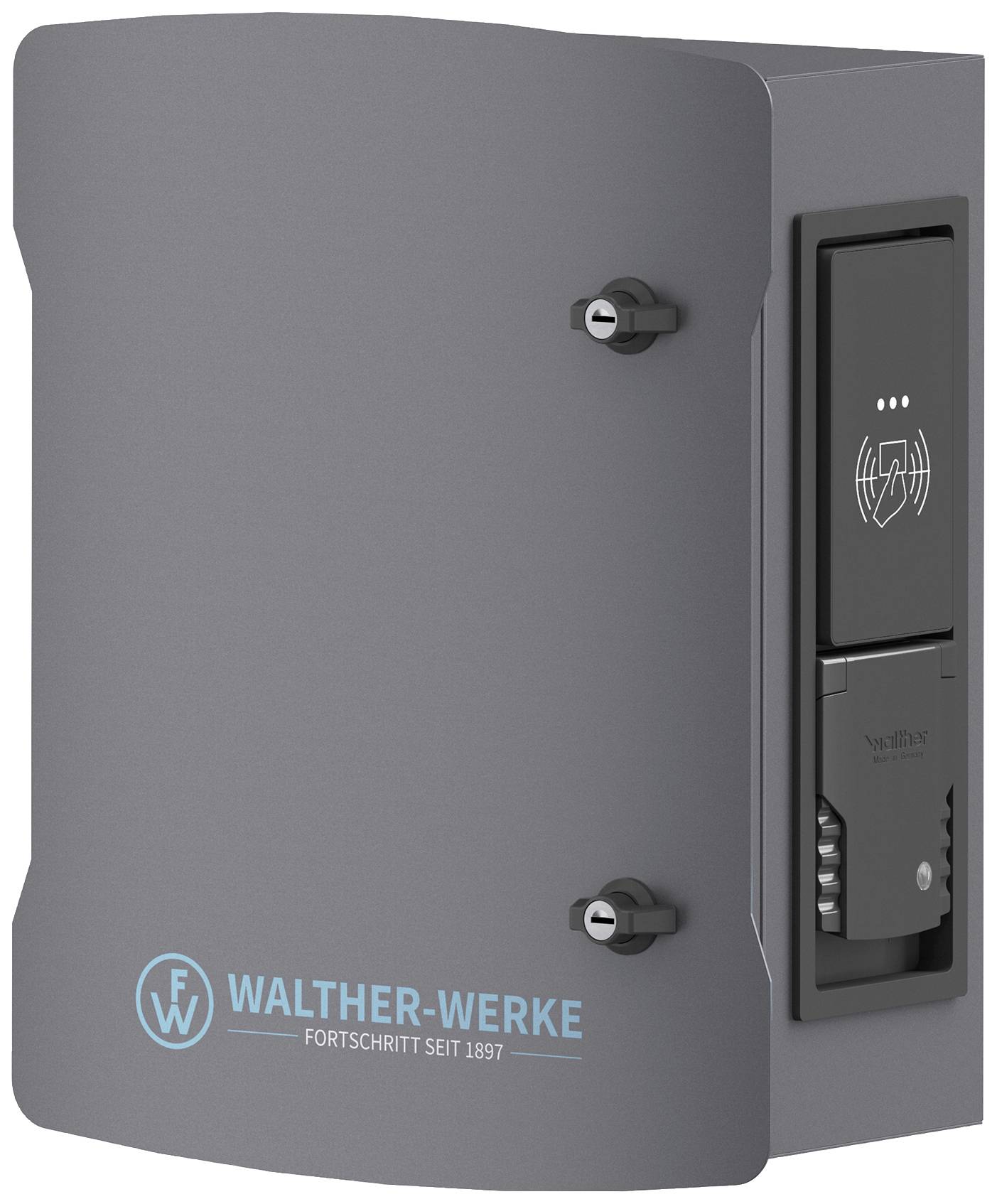

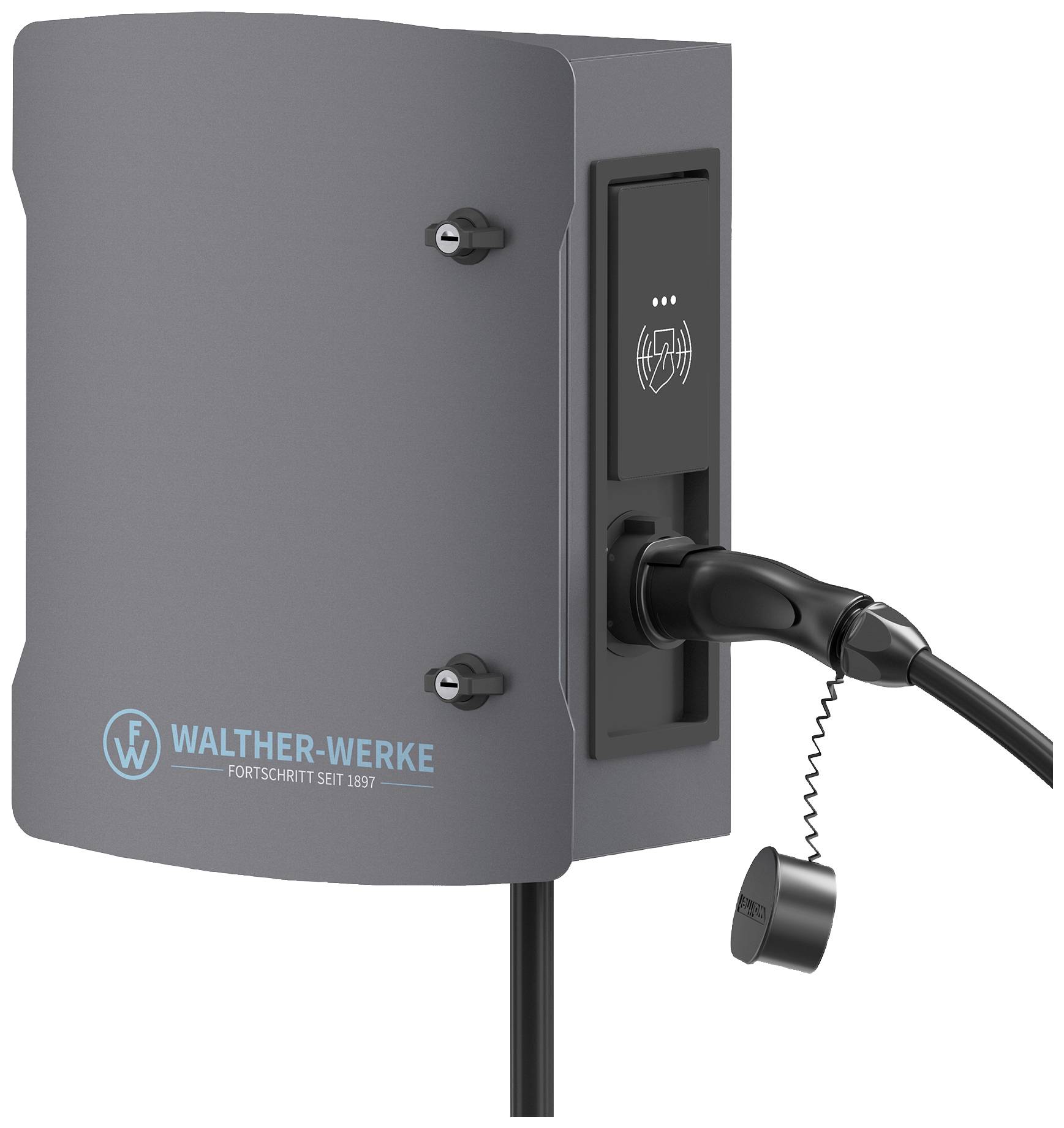

Walther Werke Wallbox smartEVO PRO 22 Wallbox Type 2 Mode 3 32 A No. of ports 1 22 kW RFID
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Wallbox smartEVO PRO 22 with 1 charging socket max. 22kW, PLC ISO 15118, 4G modem, Modbus TCP/RTU and surge protection
- Steel housingAdjustable 1 x 22 kWBackend
Technical specifications
- Product type
Wallbox
- Authorisation
RFID
- Charger connectors
Type 2
- Charging mode
Mode 3
- Charging current
32 A
- No. of ports
1
- Charging capacity
22 kW
- No. of phases
3-phase
- Nominal voltage
230 V
400 V
IK08
IP54
- Certification marks
DIN EN 61439-7
- Width
390 mm
- Height
490 mm
- Depth
203 mm
- Weight
17 kg
- Max. temperature
+40 °C
- Min. temperature
-25 °C
- Temperature range
-25 to 40 °C. °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2476823 Walther Werke Wallbox smartEVO PRO 22 Wallbox Type 2 Mode 3 32 A No. of ports 1 22 kW RFID
User & Safety Instructions
User & Safety Instructions 2476823 Walther Werke Wallbox smartEVO PRO 22 Wallbox Type 2 Mode 3 32 A No. of ports 1 22 kW RFID
Description
Charge the electric car comfortably on the company premises. More and more companies offer their customers, employees and visitors this opportunity. The Wallbox smartEVO PRO 22 impresses with an efficient charging and load management for the intelligent charging of electric cars in the semi-public sector. The Wallbox has a back-end communication interface as well as a service and maintenance-friendly housing concept. The Wallbox smartEVO PRO 22 has a charging point - fitted with a type 2 charging socket. Other advantages of the Wallbox are its 4G modem, its Modbus TCP/RTU and its surge protection.
This text is machine translated.
This text is machine translated.
Features
- Plug & Charge technology according to ISO 15118 and EEBUS-interface for dyn. Load managementCharging according to mode 3 according to IEC 61851Plug devices according to IEC 621961 x charger type 2 (Mode 3)Charging capacity up to 22 kWOCCP: 1.6PLC (ISO15118)EEBUS
Scope of delivery
- 2 RFID-Card
- 2 keys.
- User manual.
System requirements
- Windows, iOS, Android
