Walther Werke WAV0135R1 WAV0135R1 Switchboard cabinet Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
Width
669 mm
Height
974 mm
Depth
360 mm
Dim
(W x H x D) 669 x 974 x 360 mm
Technical specifications
- Design: Connection distribution cabinet
- Rated voltage 230/400 V
- Rated current 63 A
- Connected power 44 kVA
- Number of CEE sockets (IEC 60309) 16 A / 400 V / 5-pin (1, 2, 3, N, PE): 2
- Number of CEE sockets (IEC 60309) 32 A / 400 V / 5-pin (1, 2, 3, N, PE): 2
- Number of earthed sockets CEE 7/3 (type F): 6
- Number of counter fields: 1
- Main switch: Circuit breaker
- Main switch rated current 63 A.
- Number of pins Main switch: 3
- Number of circuit breakers: 10
- Residual current type B
- Number of residual current circuit breakers 30 mA: 2
- Emergency switch: No.
- Protection type (IP) IP44
- Suitable according to IEC/EN 61439-4: Yes
- Housing material: Other
- Width 669 mm
- Height: 974 mm
- Depth: 360 mm
- Product type
Switchboard cabinet
- Width
669 mm
- Height
974 mm
- Dim
(W x H x D) 669 x 974 x 360 mm
- Depth
360 mm
- Content
1 pc(s)
IP44
- Nominal current
63 A
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3795851 Walther Werke WAV0135R1 WAV0135R1 Switchboard cabinet Content 1 pc(s)
Description

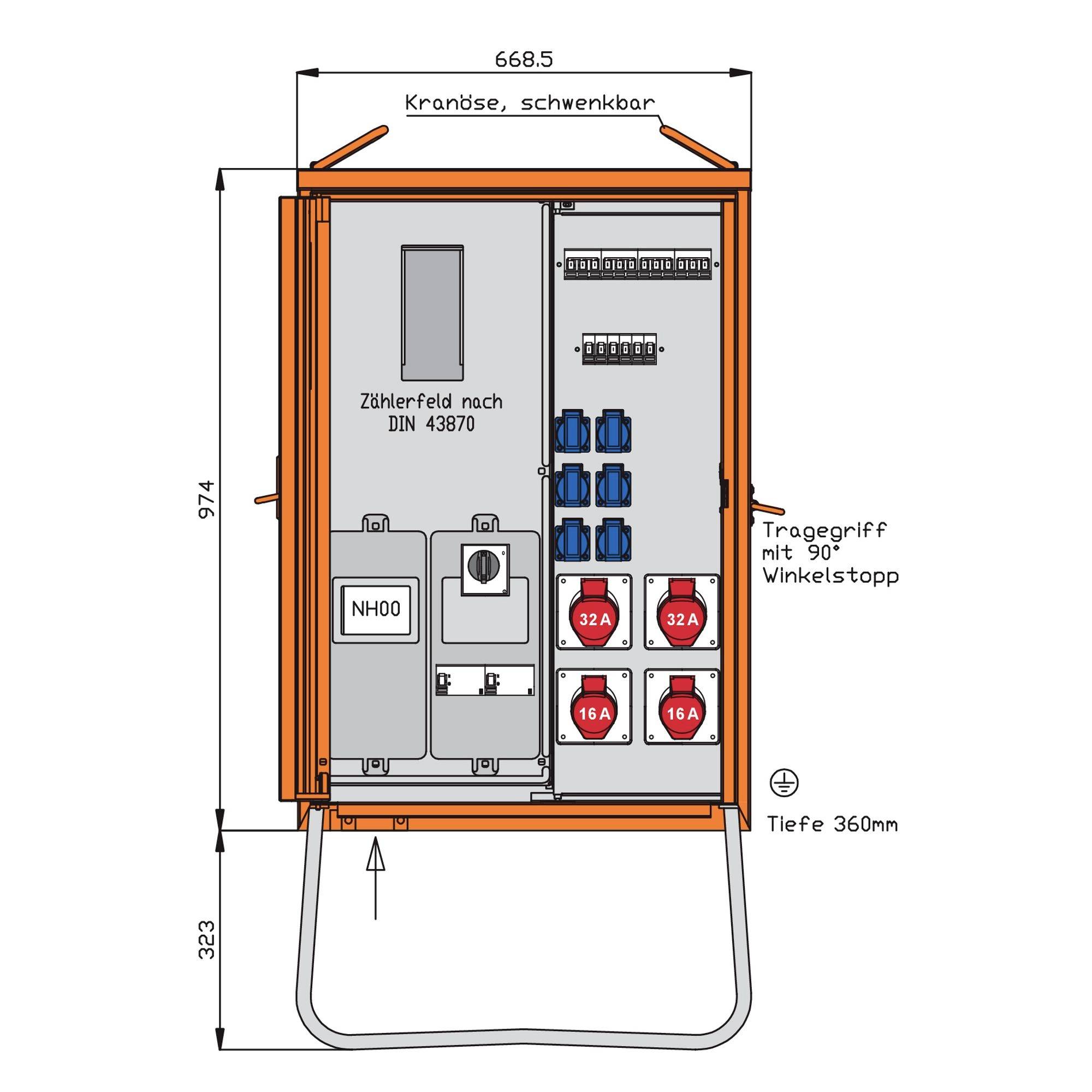

Walther connection distribution cabinet connection power: 44kVAnach IEC61439-4 and DIN/VDE 43868/1 casing (H14) made of electrolytic galvanized sheet steel with heavy metal free plastic lacquer Color: RAL 2004 pure orange with single door, spring lock for padlock and handle recess with crane eyes and side carrying handles incl. hot-dip-galvanized base with eyelets for earth installations up to and including RCD-protection switch in insulation housing: 44IP Size: 974 x 669 x 360mm / H-B-T + base frame height approx.: 323mmConnection:1 NH00 fuse switch disconnectors 80A with U-clamp terminals 10 2-50qmmMeasurement:1 DS counter space without meter according to DIN 43870/2Output / Security:1 circuit breaker 3P 63A with thermal-magnetic trip 1 RCD circuit breaker 4P 63A/30mA -B-2 CEE attachment sockets 32A 5P 5P 6h each with 1 circuit breaker (MCB) 1 V 16A 3P fuse switch 16A 1) RCD circuit breaker 4P 40A/30mA -A-6 safety sockets 16A 2P 230V each with 1 circuit breakers (MCB) 1P 16A -C-
